Canon XF300 Instruction Manual page 183

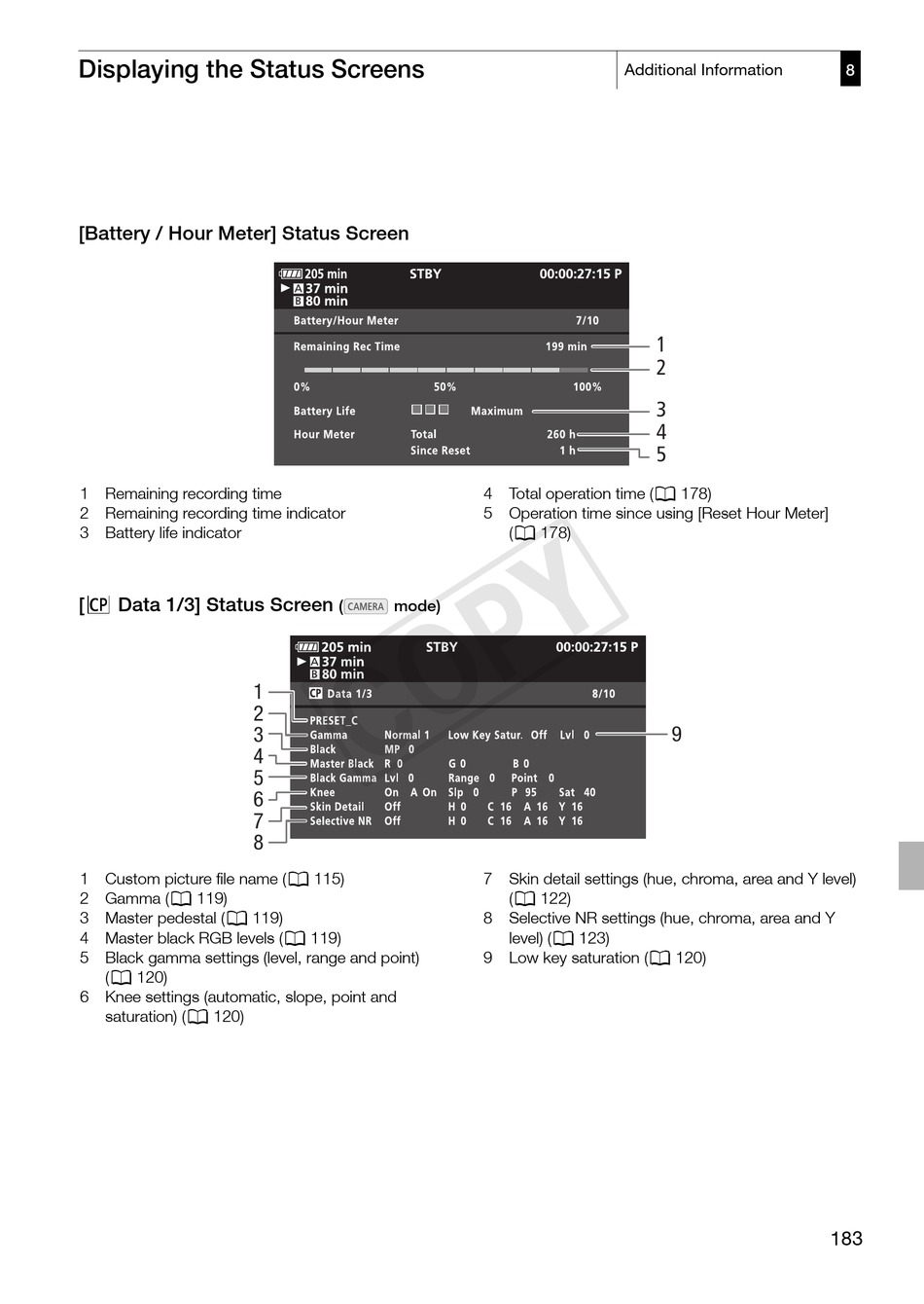

Displaying the Status Screens
[Battery / Hour Meter] Status Screen
1 Remaining recording time
2 Remaining recording time indicator
3 Battery life indicator
[X Data 1/3] Status Screen
1 Custom picture file name (0 115)
2 Gamma (0 119)
3 Master pedestal (0 119)
4 Master black RGB levels (0 119)
5 Black gamma settings (level, range and point)
(0 120)
6 Knee settings (automatic, slope, point and
saturation) (0 120)
( mode)
1
2
3
4
5
6
7
8
Additional Information
1
2
3
4
5
4 Total operation time (0 178)
5 Operation time since using [Reset Hour Meter]
(0 178)
7 Skin detail settings (hue, chroma, area and Y level)
(0 122)
8 Selective NR settings (hue, chroma, area and Y
level) (0 123)
9 Low key saturation (0 120)
8
9
183
