DEMO MANUAL DC2277A
Quick start proceDure
POWERING DOWN THE BOARD BETWEEN
PROGRAMMING OPERATIONS
Disconnect the USB cable from the DC1427A/DC1613A
before removing or inserting a LTC3886UKG into the
programming socket.
WHAT YOU CAN DO WITH THE DC2277A
1. Compare the contents of the EEPROM in the
LTC3886UKG against your project or hex file.
2. Reprogram the contents of the EEPROM in the
LTC3886UKG using your project or hex file.
'System Tree' View
'Config' View
'Idealized On/OFF Waveforms' View
4
'Telemetry' View

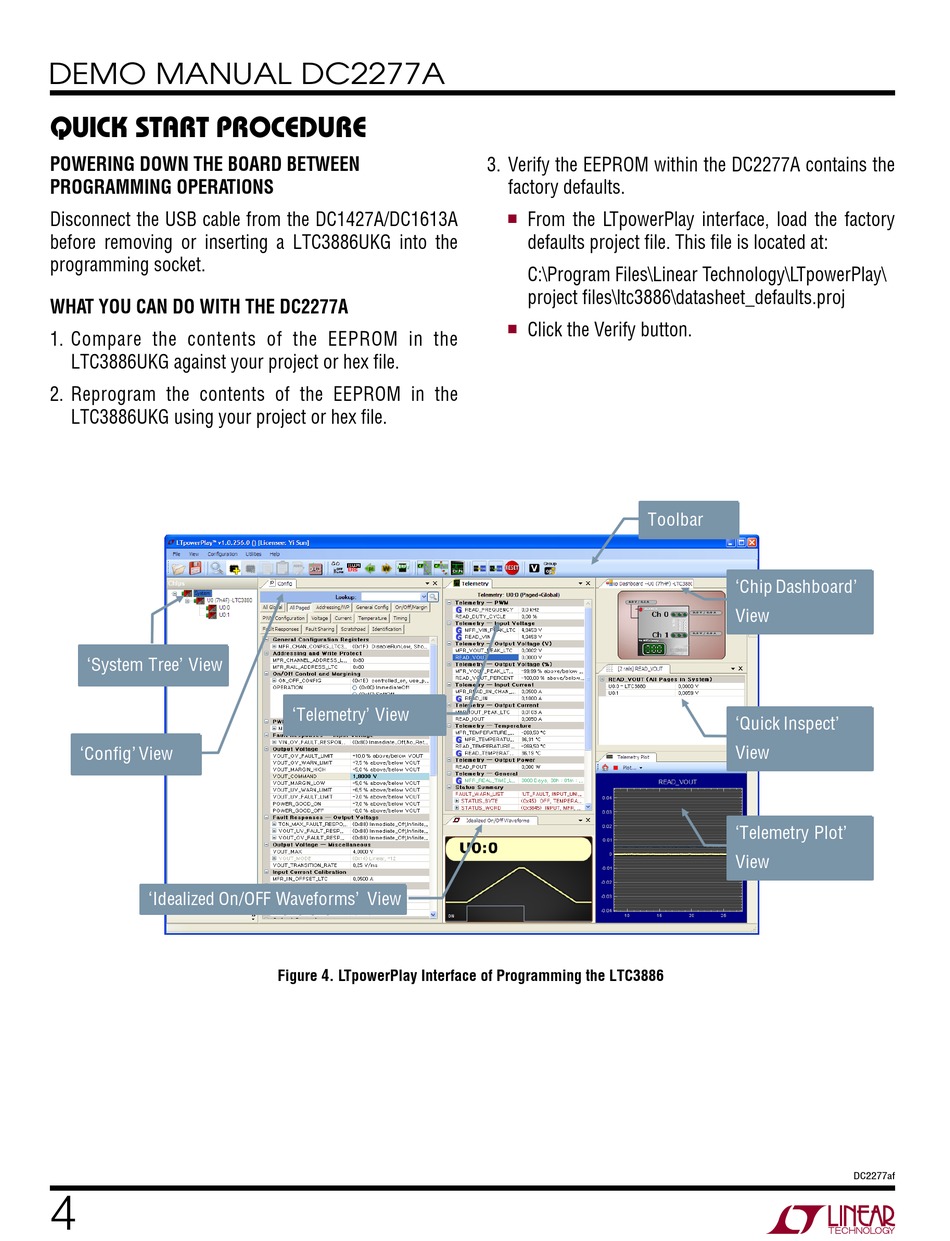

Figure 4. LTpowerPlay Interface of Programming the LTC3886
3. Verify the EEPROM within the DC2277A contains the
factory defaults.
From the LTpowerPlay interface, load the factory
n
defaults project file. This file is located at:
C:\Program Files\Linear Technology\LTpowerPlay\
project files\ltc3886\datasheet_defaults.proj
Click the Verify button.
n
Toolbar
'Chip Dashboard'
View
'Quick Inspect'
View
'Telemetry Plot'
View
