DEMO MANUAL DC2277A

Quick start proceDure

Demonstration circuit 2277A makes it easy to program
and verify the EEPROM contents of the LTC3886 in the
UKG package.
1. Make sure jumpers are in the following positions:
JUMPER POSITION FUNCTION
JP1 OFF Write Protection of LTC3886
JP2 ON Write Protection of Identification EEPROM
2. Open the lid of the socket. Verify there is an LTC3886
inside. See Figure 2.
3. Close the lid. It will snap into place.
NOTE: Removal and insertion of the IC should be done
with either a tweezers or a vacuum suction device.
4. Plug one end of the USB cable to your PC. Plug other
end of USB cable into the I
2
2
C/SMBus/PMBus controller.

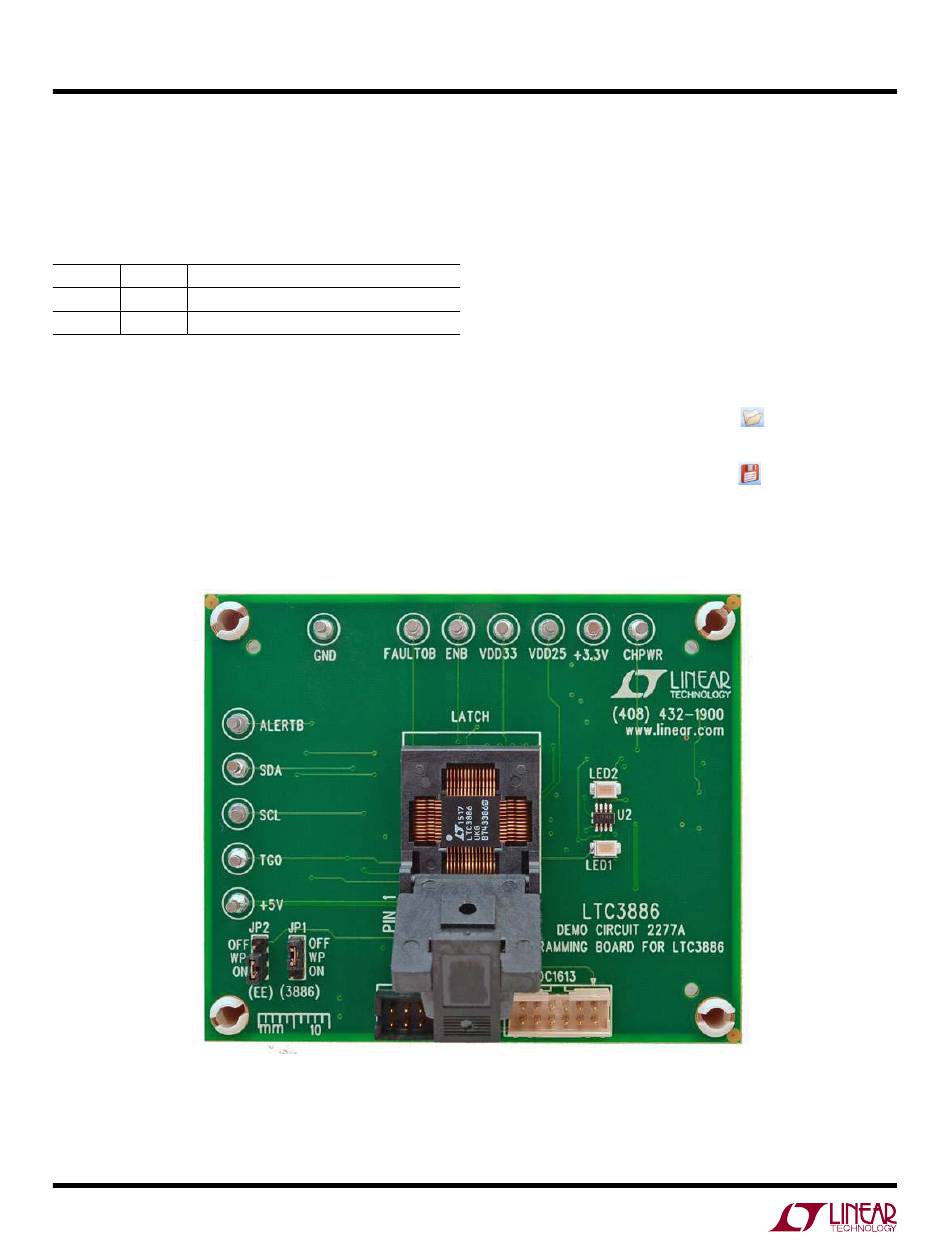

Figure 2. Open Shell. Verify IC Installed
5. If you have a DC1427A, plug the ribbon cable into J1.
If you have a DC1613A, plug the ribbon cable into J2.
See Figure 3.
6. On your PC, launch LTpowerPlay. LTpowerPlay will
identify the DC2277A and launch the appropriate GUI.
See Figure 4.
NOTE. You will see an Under Temperature (UT) Fault.
This is normal since the temperature sensing pin is
grounded. Ignore this fault at the moment.
7. Change the GUI parameters according to your system
requirements. Or, you can click
existing project file.
8. After you finish the design, click
file
button to open an
to save the project
DC2277af
