Winix AM90 User Manual

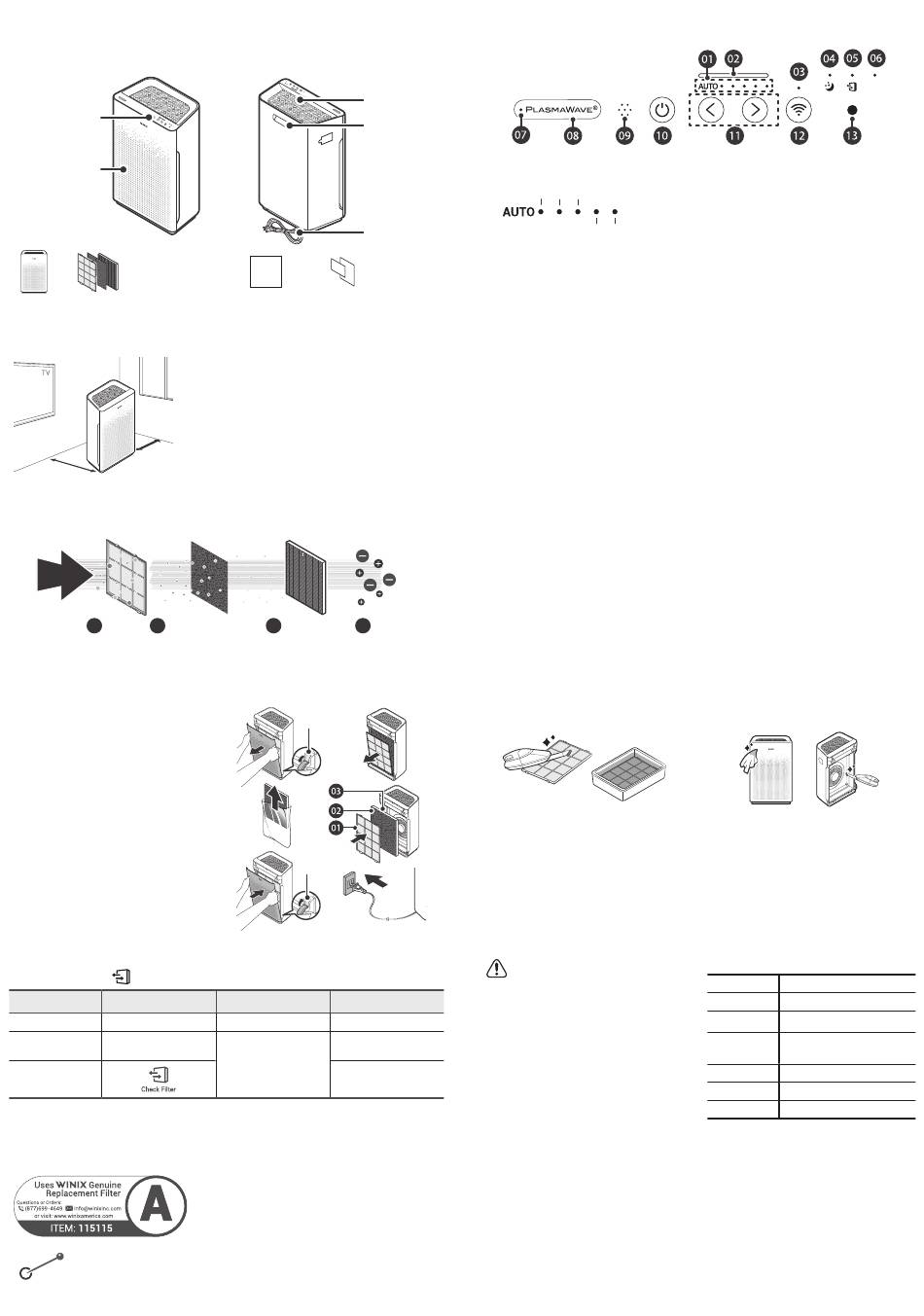

MODEL PART DIAGRAM
FRONT
Control Panel
Front Panel
PACKAGE CONTENTS
(1) Pre-Filter
(4) Activated Carbon Filters
Unit
(1) True HEPA Filter
WHERE TO USE
Allow 12 ~ 18 in. of space between TVs, radios, and other
electronics
Electromagnetic interference from certain electronics may
cause product malfunction.
Place indoors away from direct sunlight
Direct exposure may cause product malfunction or failure.
Only place on hard, flat surfaces
Flimsy or slanted surfaces may result in abnormal noise and
12~18 in
vibrations.
12~18 in
Allow 12 ~ 18 in. from walls for maximum air flow
4-STAGE AIR PURIFICATION
01 Pre-Filter 02 Activated Carbon Filter
INITIAL OPERATION
1.
Remove the front panel by grasping its upper
edge and gently pulling forward.
2.
Remove the Pre-Filter, then the bag of filters
behind it.
3.
Remove filters from protective plastic wrap.
4.
Install the filters until they fit securely in
place.
03. True HEPA Filter (back)
02. Activated Carbon Filter (middle)
01. Pre-Filter (front)
5.
After filters are installed, close the front
panel.
6.
Insert the power cord into an electrical
outlet.
MAINTENANCE
When to Replace Filters
Filter Indicator Light
Pre-Filter none
Activated Carbon
none
Filter
True HEPA Filter
• When the Check Filter Indicator LED is on, it is time to replace the True HEPA Filter and Activated Carbon Filter.
• Intervals between filter replacement may vary depending on environment.
REPLACING FILTERS
Resetting Filter Life:
After replacing your True HEPA Filter, place the Pre-Filter back in and close the Front Panel.
While the unit is on, hold the Filter Reset Button for at least 5 seconds until you hear the
beep. After the beep, the Filter Replacement Indicator will disappear. Your Winix True HEPA is
now reset.
BACK
Air Outlet
Vent
Handle
Power Plug
User Card Alexa Guide /
Wi-Fi Setup Guide
Manual
Air Purification means it
removes inanimate particles
03 True HEPA Filter 04 PlasmaWave
Latch
Latch
When to Service When to Replace
Clean once every 14 days Permanent
Replace every 3 months
Can NOT be WASHED
Lasts Approx.12 months
CONTROL PANEL
01. Fan Speed Indicator
Indicates the current fan speed.
Auto Mode Low Medium
High Turbo
02. Air Quality Indicator
Color coded LED light indicates one of three levels of
Air Quality: Red (poor), Amber (fair), and Blue (good).
03. Wifi Indicator
Indicates whether Wi-Fi Mode is enabled or disabled.
04. Sleep Indicator
When Sleep Mode is activated, the Air Quality
Indicator LED light is disabled.
Fan speed will automatically set to minimum
speed (lower than 'Low') which will be nearly
silent.
When Sleep Mode is active, PlasmaWave® will be
disabled, but it can be turned back on.
05. Filter Replacement Indicator
LED light indicates when it is time to change the
filter.
06. Filter Reset Button
After replacing the True HEPA Filter, use a small
object such as a paper clip, to press and hold the
Filter Reset button for at least 5 seconds until the
Filter Replacement Indicator turns off.
®
07. PlasmaWave Indicator
Indicates whether PlasmaWave
disabled.
®
08. PlasmaWave Button
Press the Plasmawave ® button when the unit is
on to enable or disable this feature. By default,
PlasmaWave ® is enabled whenever the unit is
powered on.
"When the unit is running, you may hear a chirping
or buzzing sound. The sound is from large
particles passing through PlasmaWave
®
normal and does not signify product failure."
CLEANING CARE
Cleaning the Filters:
Use a vacuum cleaner or soft brush to clean
the Pre-Filter.
• If it is excessively soiled, rinse in room
temperature water.
• Do not use detergent or soap.
• Allow the filter to dry for 24 hours or more
before using.
• Intervals between filter cleaning may vary
depending on the air quality. Do not use hot
water over 104 o F or volatile fluids such as paint
thinner.
N O T I C E
• When cleaning the unit, always unplug the
power cord first and then wait until the unit
has cooled down.
• Never disassemble, repair, or modify this unit
yourself.
• Do not use flammable sprays or liquid
detergents.
• Do not allow children to clean or maintain the
unit.
• Before cleaning or maintaining, ensure unit is
unplugged.
• Do not use benzene, alcohol, or other
volatile fluids, which may cause damage or
discoloration.
Contact Winix for
product related inquiries
and customer service
To expedite service, please specify the model name and number, the nature of the
problem, your contact information, and your address.
09. Smart Sensor
Detects the amount of odorous gas in the
environment. When in Auto mode, the fan speed
adjusts according to the detected amount of gas.
10. Power Button
Turns the unit on or off. During the first 30
seconds of powering up, the Air Quality Indicator
will cycle through Blue, Amber, and Red colors.
Smart Sensor takes approximately 4 minutes to
detect the air quality in the environment before
normal operation begins.
11. Fan Speed Button (UP/DOWN)
Press to cycle through to set the mode of operation
(Auto, Sleep). The unit will default to Auto with
PlasmaWave ® enabled when first powered on.
Auto Mode:
• Auto Mode automatically adjusts fan speeds
according to your indoor air quality. The fan
speed will adjust to low when air quality is
good, medium when fair, and to high when poor.
Sleep Mode:
When Sleep Mode is activated, the Air Quality
Indicator LED light is disabled.
• Fan speed will automatically set to minimum speed
(lower than 'Low') which will be nearly silent.
• When Sleep Mode is active, PlasmaWave® will
be disabled, but it can be turned back on.
12. Wi-Fi Button
A quick press will turn Wi-Fi on/off. A long press
of 3 seconds will activate pairing mode, then Wi-
® is enabled or
Fi indicator will display on the front while Wi-Fi is
active.
13. Light Sensor
Detects the amount of ambient light in the
environment. When in Auto Mode, the Light Sensor
detects when to put the unit into Sleep Mode.
®
, it is
Cleaning the Exterior & Interior:
Wipe with a soft damp cloth using room
temperature water.
• Afterwards, wipe it down with a clean, dry cloth.
Open the front panel and clean the interior with a
vacuum cleaner.
• For optimal performance, clean every 1 - 2
months.
SPECIFICATIONS
Model
Voltage
Power Rate
Verified
Room Size
Dimensions 14.9 in (W) x 7.8 in (D) x 23.6 in (H)
Weight
Filter SKU
The exterior, design, and product specifications
may be changed without prior notice to
improve product performance.
• Dedicated Call Center:
☎
• Website: www.winixamerica.com
AM90
AC 120 V / 60 Hz
65 W
360 sq.ft.
15.8 lbs
FILTER A / SKU : 115115
(877) 699-4649
