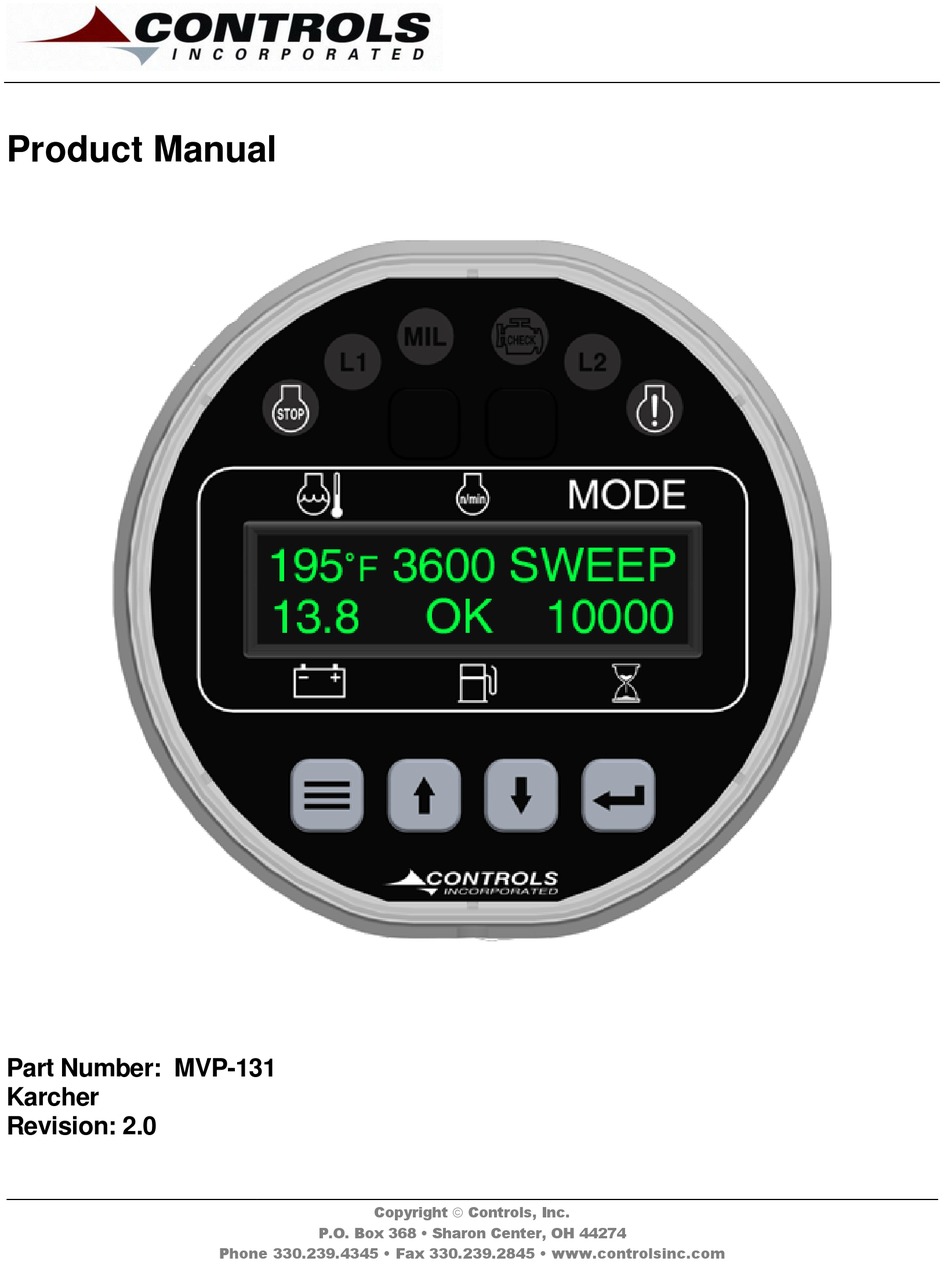

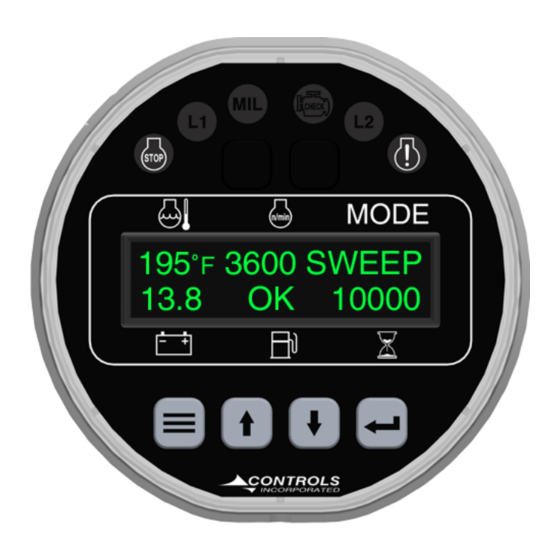

Product Manual
Part Number: MVP-131
Karcher
Revision: 2.0
______________________________________________________________________________________________________________________________________
Copyright  Controls, Inc.
P.O. Box 368 • Sharon Center, OH 44274
Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVP-131 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Controls MVP-131

Summary of Contents for Controls MVP-131

  • Page 1 Product Manual Part Number: MVP-131 Karcher Revision: 2.0 ______________________________________________________________________________________________________________________________________ Copyright  Controls, Inc. P.O. Box 368 • Sharon Center, OH 44274 Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com...

  • Page 2: Table Of Contents

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S TABLE OF CONTENTS INSTALLATION INFORMATION ……...………………………………...…………………………………………………………………..CONNECTOR INFORMATION ……...………………………………...……………………………………..…………………………………. MENU SYSTEM ……………………………………………………………………………………………..…………………………..…………………….…… MENU ACCESS, EXIT AND NAVIGATION...

  • Page 3: Installation Information

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S INSTALLATION INFORMATION - 2 -...

  • Page 4: Connector Information

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONNECTOR INFORMATION Part# 3FK-108 Connector A Kit (1) Deutsch DT06-6S plug with (6) 0462-209-10614 sockets...

  • Page 5: Menu System

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S MENU SYSTEM To Enter Menu System Hold MENU button and press ENTER button. Menu Navigation Press MENU button to scroll menu options.
  • Page 6 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Main Menus Main Menus Sub Menus Active Engine Fault Codes View/Scroll Active Fault Codes...
  • Page 7 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Configuration Menus Quick Setup Engine Manufacturer (Default = Kubota) TSC Minimum Speed (Default = 1000 RPM)
  • Page 8 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Sender Check By-Pass (Default = 0:10) Engine Safety Configuration Fuel Level Check (Default = Off)

  • Page 9: Engine Alarms, Codes And Messages

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S ENGINE ALARMS, CODES AND MESSAGES Engine ECU Alarm/De-Rate/Shut Downs It is important to understand panel operation with respect to engine safety protections, alarms, and fault codes.

  • Page 10: Active And Stored Engine Ecu Codes

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Indicator Lamps Engine Engine Fault Alarm Lamp Lamp Active and Stored Engine ECU Codes The panel also provides the ability to check the engine ECU for all ACTIVE and STORED engine ECU codes.

  • Page 11: Engine Parameters

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S ENGINE PARAMETERS CAN Bus Communication This module communicates to the engine ECU via the J1939 CAN Bus network. This is a two wire connection to the engine ECU.

  • Page 12: Control Panel Digital Inputs

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONTROL PANEL DIGITAL INPUTS The panel has three digital inputs with one available to monitor other components, senders or signals.
  • Page 13 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Digital Input Function Activation 1) Off / Always / Run – Describes when the parameter will be monitored for alarm conditions.

  • Page 14: Prior To Engine Start

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Prior to starting the engine, select the proper throttle control mode and parameters required for application.

  • Page 15: Control Panel Specific Alarms And Shut Downs

    CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONTROL PANEL SPECIFIC ALARMS AND SHUT DOWNS The panel has its own engine safety alarms and shut downs that can be enabled. These alarms and shut downs are managed by the control panel independent from the engine ECU.
  • Page 16 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S NOTES: 1) Off / Always / Run – Describes when the parameter will be monitored for alarm conditions. Run refers to when the engine is running.
