Meltem M-WRG-S User Manual
Home ventilation with heat recovery
Hide thumbs
Also See for M-WRG-S:
- Operating instructions manual (32 pages) ,
- Operating instruction (44 pages) ,
- Installation manual (32 pages)
Related Manuals for Meltem M-WRG-S
Summary of Contents for Meltem M-WRG-S

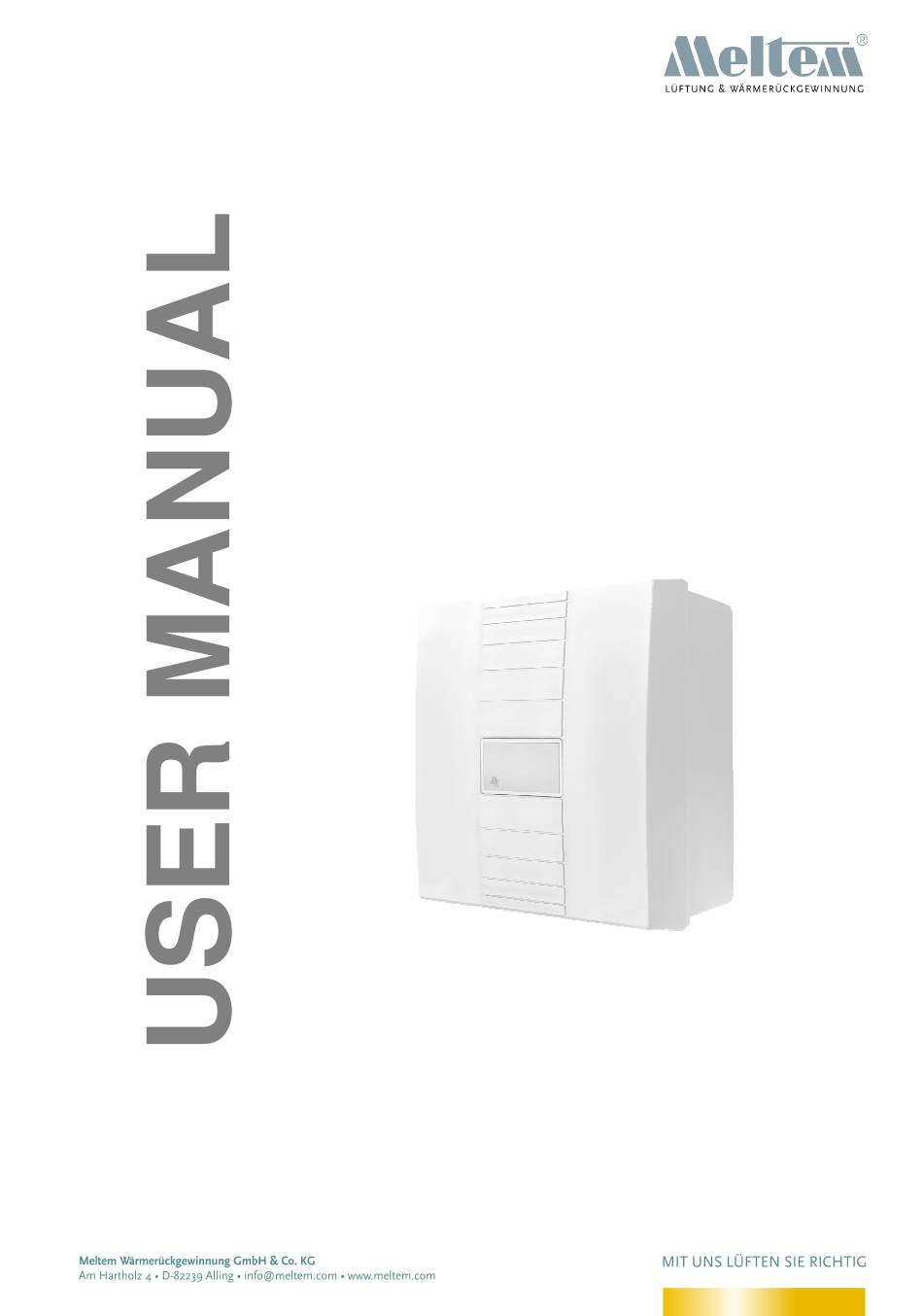

- Page 1 HOME VENTILATION WITH HEAT RECOVERY Ventilation Unit M-WRG-S Best.Nr. 5302-00-01 03/2011...
- Page 2 User Manual Important user information Ventilation with heat recovery • Never cover the M-WRG-S ventilation unit or any part of it with e.g. cabinets, blinds or curtains. A M-WRG-S is a decentralized ventilation system with minimum distance of 30 cm to any furniture is heat recovery from Meltem.
-
Page 3: Table Of Contents
You have made the right choice! ......................- 4 - Safety and Security ..........................- 4 - How does the M-WRG-S ventilation unit work ? ..................- 5 - M-WRG-S ventilation unit overview......................- 6 - Start up and Operation........................... - 7 - Filter Replacement .......................... -
Page 4: You Have Made The Right Choice
M-WRG-S ventilation unit. • Do not install the M-WRG-S ventilation unit into the interior of a cabinet or other furniture. Do not cover the M-WRG-S ventilation unit with a any type of fabric (towel, curtains, etc.) or any other objects (furniture, blinds, etc.). -
Page 5: How Does The M-Wrg-S Ventilation Unit Work
M-WRG-S User Manual How does the M-WRG-S ventilation unit work? The heat exchanger core uses the heat of the As the air streams move through the air ducts of the outgoing warm stale air to temper the fresh inflowing heat exchanger core, heat is transferred from the air. -
Page 6: M-Wrg-S Ventilation Unit Overview

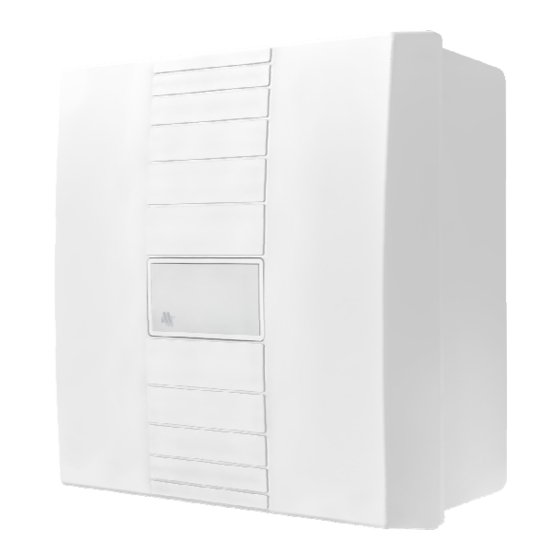

M-WRG-S User Manual M-WRG-S ventilation unit overview Casing Cover Dual switch: - Power switch ON/OFF - 3-level switch for Ventilation Rate Supply Air Outlet Stale Air Intake Ring Cover for Stale Air Filter Cover for Supply Air Filter Facade Cover: Ventilation Hood... -
Page 7: Start Up And Operation
Air flaps: The air flaps will be automatically opened or closed if the M-WRG-S ventilation unit is switched ON or OFF. In case of a malfunction make sure the flaps are not blocked and repeat once again to switch the unit ON Flaps open or OFF. -
Page 8: Filter Replacement
User Manual 3. Filter Replacement The clogging of the filters is monitored automatically Caution by the M-WRG-S ventilation unit. In case the filters need to be replaced, an acoustic signal will inform 2–3 • Always turn the M-WRG-S weeks prior to the replacement. The intervals of the... -
Page 9: Remove Old Filters
• The marking (arrow) on the cap has to align with the marking on the M-WRG-S ventilation unit • Make sure the covers sit flat and tight on the cover •... -
Page 10: Put Back On Cover
4. Cleaning the M-WRG-S ventilation unit The M-WRG-S ventilation unit is made of high quality synthetic material and only needs little cleaning. From time to time we recommend to clean the surface of the unit with a damp cloth. In order to preserve the parts we recommend only to use mild cleaning detergents. -
Page 11: Trouble Shooting
M-WRG-S ventilation unit off during cold seasons. In case the M-WRG- S ventilation unit has to be turned off, you must operate the M-WRG-S ventilation unit for a minimum of 10 minutes at ventilation level III, in order to remove any remaining moisture in the unit. -
Page 12: Technical Data
M-WRG-S User Manual 7. Technical Data Technical Data M-WRG-S Ventilation Unit Ventilation air volume (m 15/30/60** Fan speed 3 levels Heat exchange core aluminium plate cross-flow heat exchanger Heat recovery rate (%) Air Leakage (%) high efficiency radial fan with long life DC motor Power consumption (W) 3.8 / 5.2 / 12.5...
