Summary of Contents for Meltem M-WRG-K

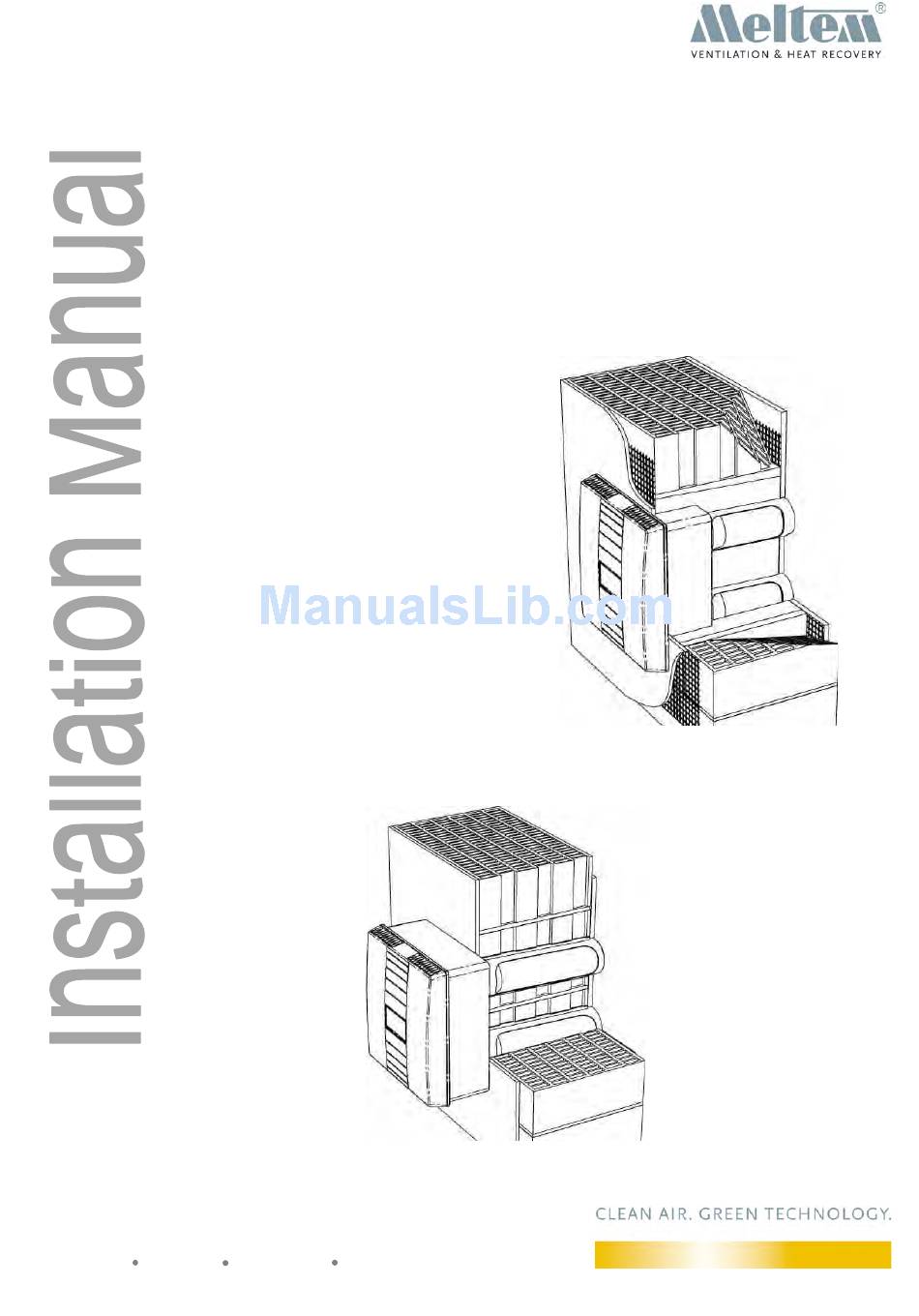

- Page 1 M-WRG-S Installation manual M-WRG-K HOME VENTILATION WITH HEAT RECOVERY Ventilation Units M-WRG-K Flush-mount Installation M-WRG-S Surface-mount Installation Order Nr. 5300-10-01 06/2011 Meltem Wärmerückgewinnung GmbH & Co.KG Am Hartholz 4 D-82239 Alling info@meltem.com www.meltem.com...
- Page 2 • own safety, only original and certified parts from once installed correctly. Meltem should be used. Otherwise this may void the warranty and Meltem will not be liable for any When ventilating basements or similar rooms we • damages. advise to be cautious (especially during the...
-
Page 3: Table Of Contents
7. I nstall f açade c over ............................ 15 8. S tart u p t he v entilation u nit .......................... 15 Meltem Wärmerückgewinnung GmbH & Co.KG Am Hartholz 4 D-82239 Alling info@meltem.com... -
Page 4: Safety Instructions
Children should be supervised, in order to ensure that they are not playing with the M-WRG ventilation unit. If these Safety instructions are not regarded, Meltem will not be held liable! •... -
Page 5: Assemble Only With Correct Mounting Elements
The position of the shutoff device’s lever has to be clearly labeled, indicated and recognizable. 1.5. Warranty Improper installation invalidates the warranty. No warranty is offered for the installation and the correct implementation of the installation. Meltem Wärmerückgewinnung GmbH & Co.KG Am Hartholz 4 D-82239 Alling info@meltem.com www.meltem.com... -
Page 6: Materials
4 centering gauges • 4 dowels Ø8mm • 1 User manual • 1 Installation manual • 2.2. M-WRG-K packaging contents Ventilation unit with heat recovery, comfort edition 1 M-WRG ventilation unit • Remote control • 2 ventilation pipes DN100 •... -
Page 7: Preparations For The Surface-Mount Installation (Ap)
Installation in bathrooms: Observe civil building codes (e.g. VDE 0100) to ensure a minimum clearance to • water taps, bath tubs, faucets ect. Open fireplaces: See Chapter 1.4 • Meltem Wärmerückgewinnung GmbH & Co.KG Am Hartholz 4 D-82239 Alling info@meltem.com www.meltem.com... -
Page 8: Dimensions
With the aid of the level reassure that the • drilling template is still straight Mark along the contours of the drilling • templates Remove the drilling template • Meltem Wärmerückgewinnung GmbH & Co.KG Am Hartholz 4 D-82239 Alling info@meltem.com www.meltem.com... -
Page 9: C Ut A C Hannel F Or T He P Ower C Ord
Fill the hollow space in between the pipe and • the wall with expanding foam. Remove the drilling template and push the • dowells in, until they line up with the wall Meltem Wärmerückgewinnung GmbH & Co.KG Am Hartholz 4 D-82239 Alling info@meltem.com www.meltem.com... -
Page 10: Resurfacing
Cut and deburr the ventilation pipes on the outside • depending on the façade covers: Facade cover model Excess length of ventilation pipes Ventilation hood 5-10mm M-WRG-ES Ventilation Grille-Set 25-30mm M-WRG-ESR Ventilation Grille (AP) M-WRG-ESG/AP Meltem Wärmerückgewinnung GmbH & Co.KG Am Hartholz 4 D-82239 Alling info@meltem.com www.meltem.com... -
Page 11: Preparations For The Flush-Mount Installation (Up)
M-WRG-K Installation manual M-WRG-S Ventilation Grille (UP) Please contact manufacturer of M-WRG-ESG/UP facade 4. Preparations for the flush-mount installation (UP) 4.1. Prepare mounting box Check if the mounting box has been installed correctly according to installation manual M-WRG-M Art.Nr. 5300-00-01, or M-WRG-MB Art.Nr. -
Page 12: Install M-Wrg Ventilation Unit
M-WRG-K Installation manual M-WRG-S Seal the ventilation pipes on the outside with silicone • 5. Install M-WRG ventilation unit The following steps are identical for the installation of flush- and surface mount! 5.1 Remove unit cover With both thumbs, press down the two hooks •... -
Page 13: Connect M-Wrg Ventilation Unit
M-WRG-K Installation manual M-WRG-S 5.4. Remove covers for electrical connection Cover for power connector (Zulufthaube) Unscrew the screw of the supply air cover • with a Philips screw driver With both thumbs, press down the two hooks, • then lift up the cover... -
Page 14: P Ut E Lectrical C Onnector C Over B Ack O
M-WRG-K Installation manual M-WRG-S M-WRG-S 485-TF, M-WRG-S 485-TFC 5.7. Put electrical connector covers back on Caution! Due to safety reasons, it is not allowed to operate the unit without the supply air cover! The cover serves as protection against electric shocks... -
Page 15: Install Masking Frame
M-WRG-K Installation manual M-WRG-S 6. Install masking frame As an accessory a M-WRG-BR masking frame, Model.Nr.5364 is available to conceal any visible cracks or gaps in between the casing and the wall. Once the ventilation unit is fully installed, •...
