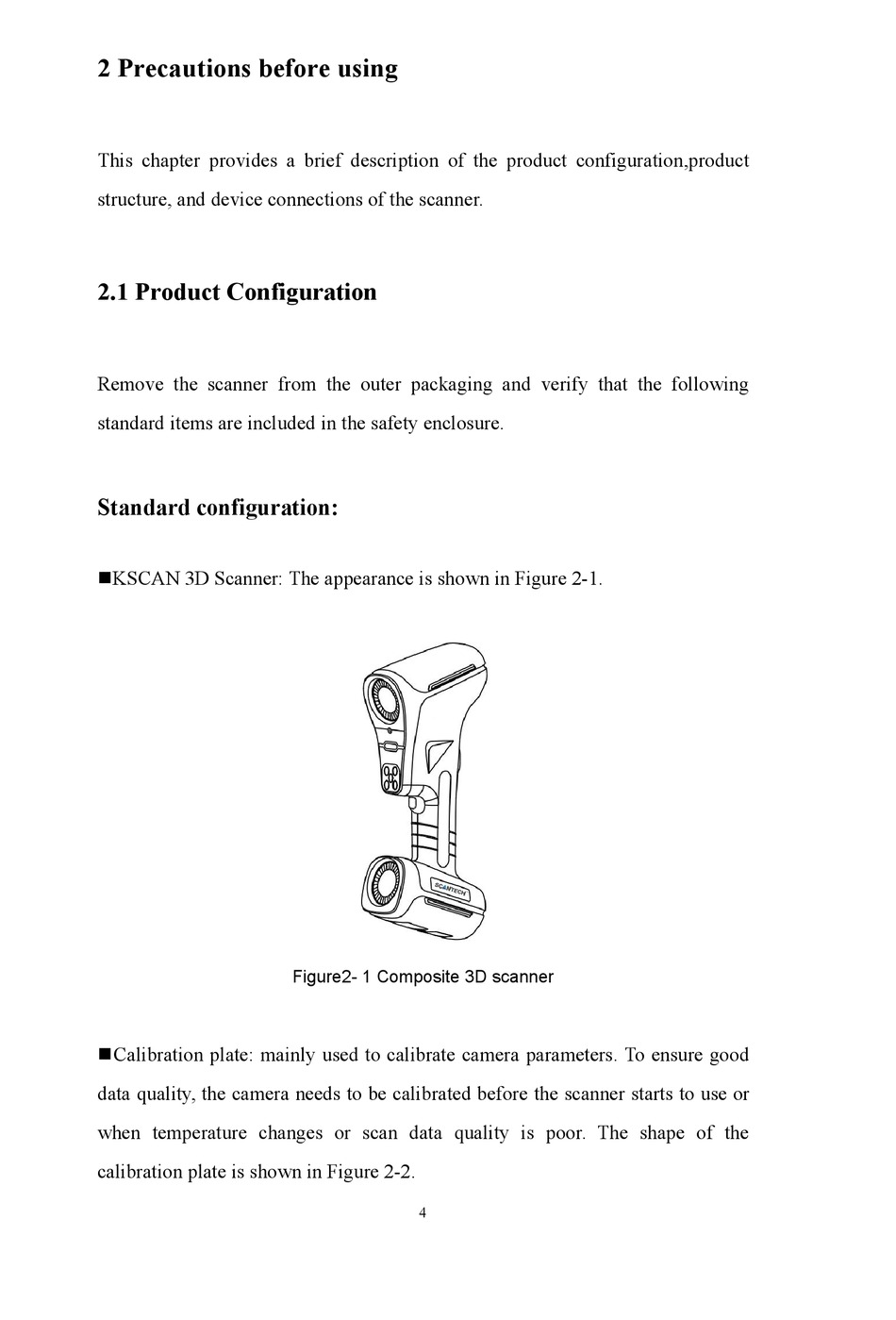

2 Precautions before using

This chapter provides a brief description of the product configuration,product
structure, and device connections of the scanner.

2.1 Product Configuration

Remove the scanner from the outer packaging and verify that the following
standard items are included in the safety enclosure.
Standard configuration:
KSCAN 3D Scanner: The appearance is shown in Figure 2-1.
Figure2- 1 Composite 3D scanner
Calibration plate: mainly used to calibrate camera parameters. To ensure good
data quality, the camera needs to be calibrated before the scanner starts to use or
when temperature changes or scan data quality is poor. The shape of the
calibration plate is shown in Figure 2-2.
