DEMO MANUAL DC2608
HARDWARE SETUP
DC2211 UNIVERSAL TEMPERATURE MEASUREMENT
BOARD
The universal temperature measurement board (see
Figure 5) allows the user to connect any of the LTC2986-1
supported sensors to the DC2618 demo board.

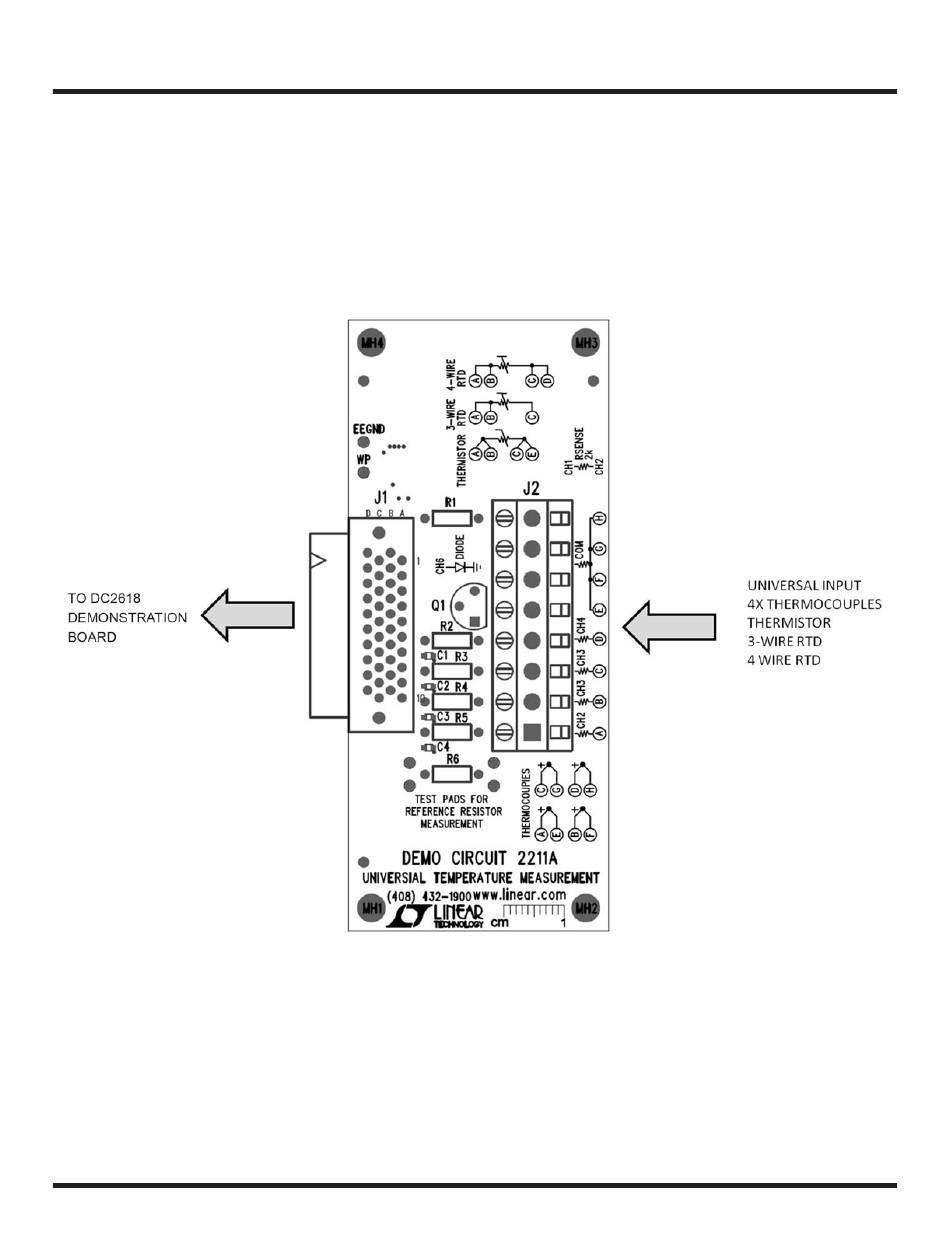

Figure 5. DC2211 Universal Temperature Measurement Board
dc2608f
5
