Linear Technology DC2420 Demo Manual

Description
The DC2420 is the starter kit for demonstrating the per-
formance and ease of use of the
complete temperature measurement system on a chip.
This kit includes the DC2399 (main demo circuit contain-
ing the LTC2984) and the DC2210 (a simple experiment
circuit allowing bread boarding). In addition to the starter
demonstration kit, sensor specific demonstration boards
highlighting the performance of RTDs, thermistors, or
thermocouples are also available.
• Universal Temperature Measurement Board – DC2211
• Thermocouple Board – DC2212
• Dedicated RTD Board – DC2213
• Dedicated Thermistor Board – DC2214
TO PC DC2026
USB PORT
14 CONDUCTOR
RIBON CABLE
Digital Temperature Measurement System
LTC 2984, which is a
®

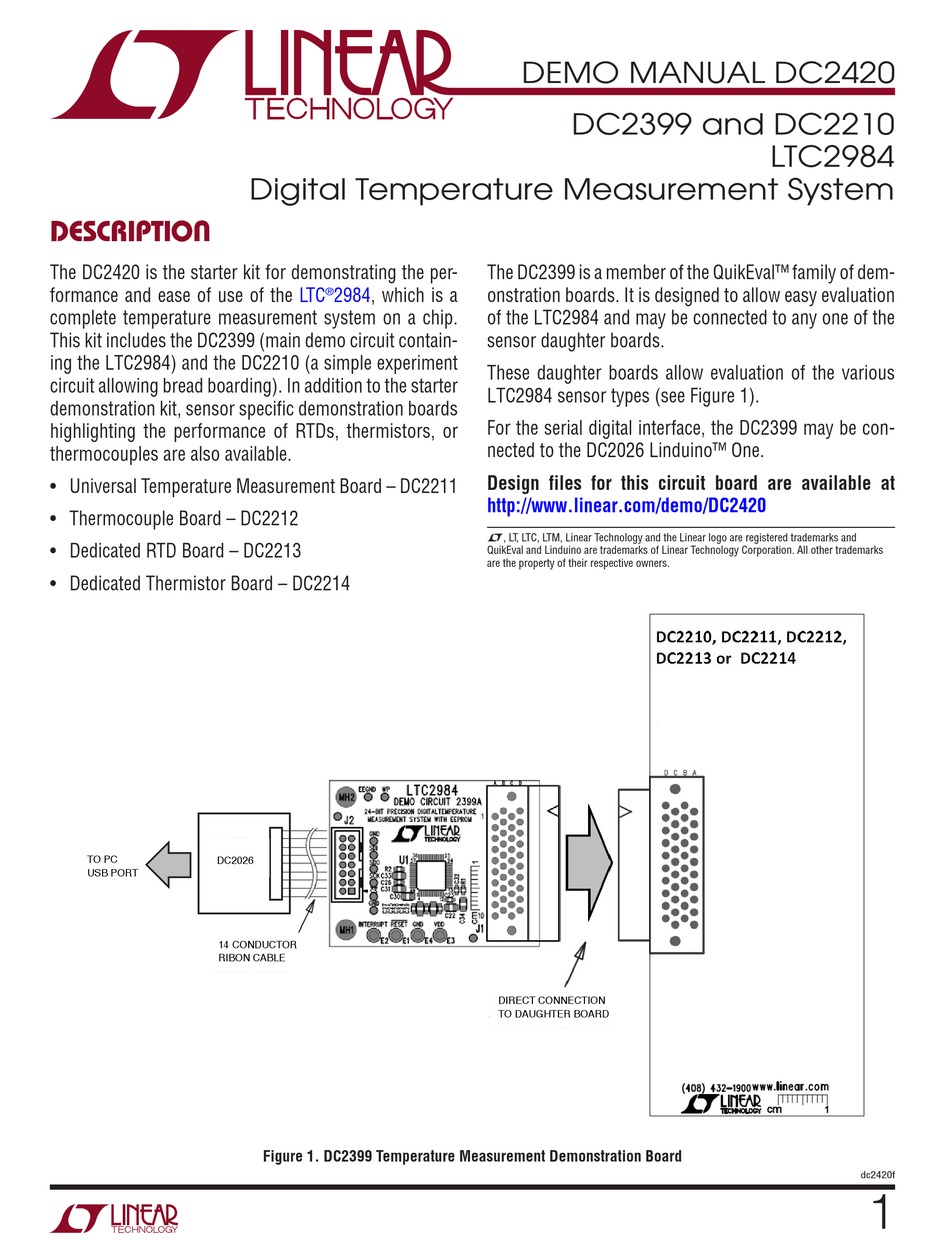

Figure 1. DC2399 Temperature Measurement Demonstration Board
DEMO MANUAL DC2420
DC2399 and DC2210
The DC2399 is a member of the QuikEval™ family of dem-
onstration boards. It is designed to allow easy evaluation
of the LTC2984 and may be connected to any one of the
sensor daughter boards.
These daughter boards allow evaluation of the various
LTC2984 sensor types (see Figure 1).
For the serial digital interface, the DC2399 may be con-
nected to the DC2026 Linduino™ One.
Design files for this circuit board are available at
http://www.linear.com/demo/DC2420
