DC2212 THERMOCOUPLE DAUGHTER BOARD
The thermocouple board (see Figure 9) demonstrates
the flexibility, accuracy, and low noise features of the
LTC2986-1 thermocouple modes.
If the user wishes to connect external sensors to the
thermocouple board, two universal-type thermocouple
jacks (J2 and J3) are provided (see schematic diagram
Figure 10 and corresponding software configuration
Figure 11). The user may connect any of the LTC2986-1
supported thermocouples (B, E, J, K, N, R, S, or T) as well
as custom thermocouples through these jacks.
10
To demonstrate the flexibility of the LTC2986-1, the ther-
mocouple board includes cold junction diodes (Q1 and Q2)
embedded in each thermocouple socket. Alternatively, a
4-wire PT100 RTD (R5) can be used as the cold junction
sensor for either or both thermocouples.
To demonstrate the low system noise and offset of the
LTC2986-1, the thermocouple board provides a short to
ground on channel 5.
To demonstrate the accuracy of the LTC2986-1, the ther-
mocouple board allows the user to connect a thermocouple
calibrator or an external voltage source to CH10 of the
LTC2986-1 through a pair of banana jacks (J4 and J5).

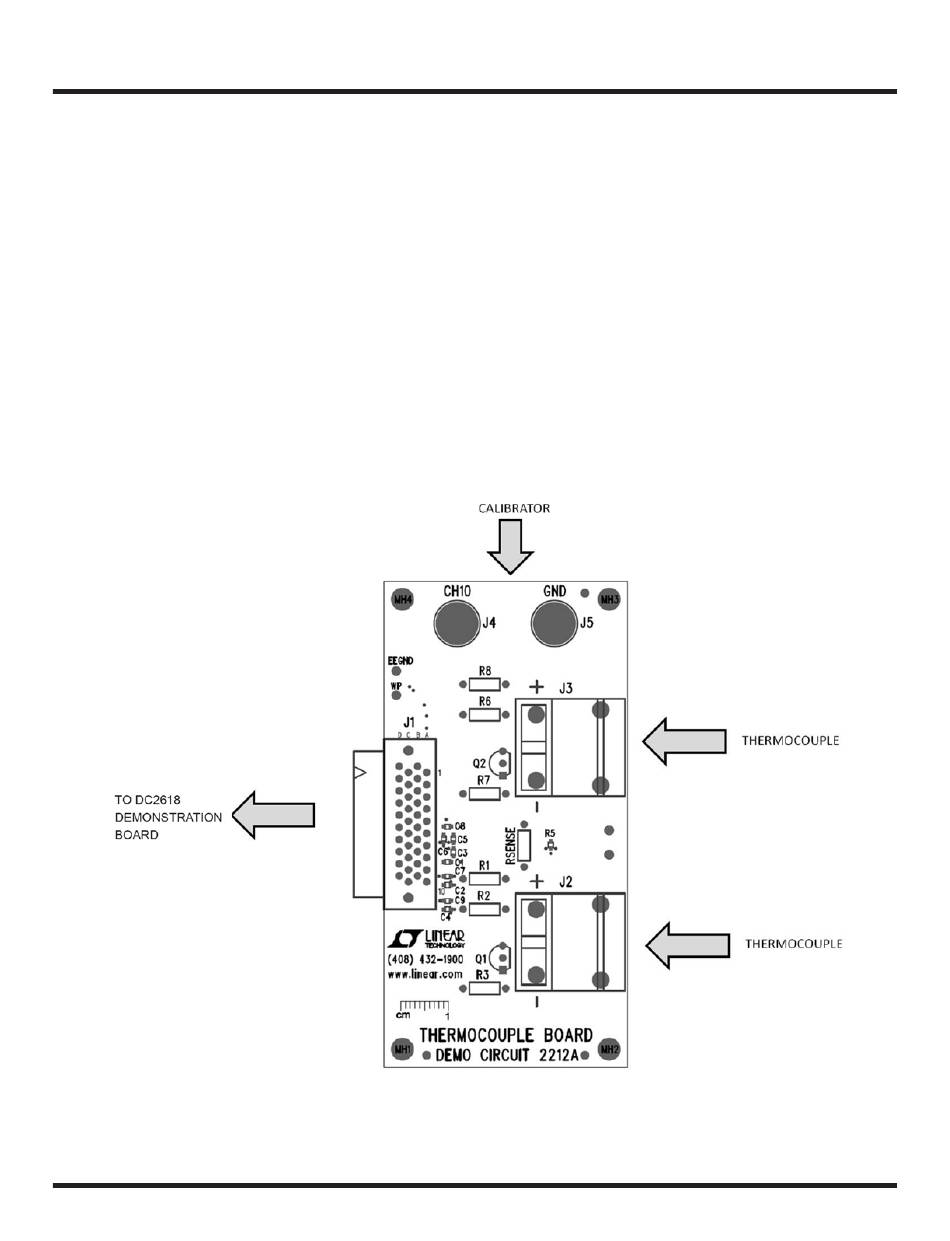

Figure 9. DC2212 Thermocouple Daughter Board
