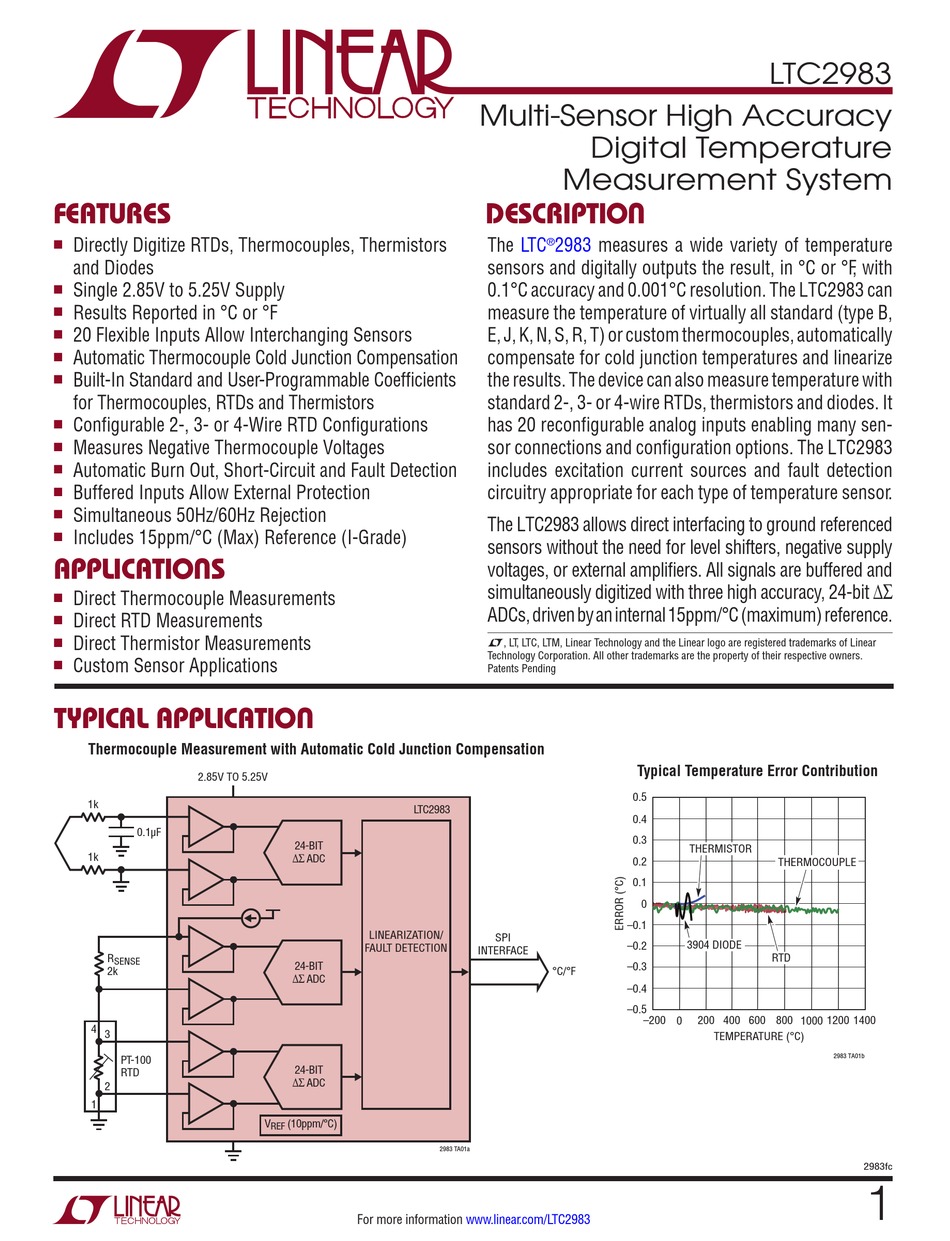

FEATURES

Directly Digitize RTDs, Thermocouples, Thermistors

and Diodes

Single 2.85V to 5.25V Supply

Results Reported in °C or °F

20 Flexible Inputs Allow Interchanging Sensors

Automatic Thermocouple Cold Junction Compensation

Built-In Standard and User-Programmable Coefficients

for Thermocouples, RTDs and Thermistors

Configurable 2-, 3- or 4-Wire RTD Configurations

Measures Negative Thermocouple Voltages

Automatic Burn Out, Short-Circuit and Fault Detection

Buffered Inputs Allow External Protection

Simultaneous 50Hz/60Hz Rejection

Includes 15ppm/°C (Max) Reference (I-Grade)

APPLICATIONS

Direct Thermocouple Measurements

Direct RTD Measurements

Direct Thermistor Measurements

Custom Sensor Applications

TYPICAL APPLICATION

Thermocouple Measurement with Automatic Cold Junction Compensation

2.85V TO 5.25V

0.1µF

SENSE

PT-100

RTD

LTC2983

24-BIT

∆∑ ADC

LINEARIZATION/

FAULT DETECTION

24-BIT

∆∑ ADC

24-BIT

∆∑ ADC

(10ppm/°C)

REF

2983 TA01a

For more information

Multi-Sensor High Accuracy

Digital Temperature

Measurement System

DESCRIPTION

The

LTC

2983

measures a wide variety of temperature

sensors and digitally outputs the result, in °C or °F , with

0.1°C accuracy and 0.001°C resolution. The LTC2983 can

measure the temperature of virtually all standard (type B,

E, J, K, N, S, R, T) or custom thermocouples, automatically

compensate for cold junction temperatures and linearize

the results. The device can also measure temperature with

standard 2-, 3- or 4-wire RTDs, thermistors and diodes. It

has 20 reconfigurable analog inputs enabling many sen-

sor connections and configuration options. The LTC2983

includes excitation current sources and fault detection

circuitry appropriate for each type of temperature sensor.

The LTC2983 allows direct interfacing to ground referenced

sensors without the need for level shifters, negative supply

voltages, or external amplifiers. All signals are buffered and

simultaneously digitized with three high accuracy, 24-bit ∆∑

ADCs, driven by an internal 15ppm/°C (maximum) reference.

L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear

Technology Corporation. All other trademarks are the property of their respective owners.

Patents Pending

Typical Temperature Error Contribution

0.5

0.4

0.3

0.2

0.1

–0.1

SPI

–0.2

INTERFACE

–0.3

°C/°F

–0.4

–0.5

–200

www.linear.com/LTC2983

LTC2983

THERMISTOR

THERMOCOUPLE

3904 DIODE

RTD

200

400

600 800

1000

1200

1400

TEMPERATURE (°C)

2983 TA01b

2983fc
