DEMO MANUAL DC2608

QUICK START PROCEDURE

Connect one of the five sensor daughter boards (DC2210,
DC2211, DC2212, DC2213 or DC2214) to the DC2618
demo board. Connect the DC2618 to a DC2026 using
the supplied 14-conductor ribbon cable. Connect the
DC2026 to the PC using a standard USB A/B cable. Run
the QuikEval software which the latest version can be
downloaded from the Linear website at
software. The LTC2986-1 demo program will be loaded
automatically. Refer to software manual LTC2986DSM for
more detailed information.
2
The demo software helps program and run the LTC2986-1.
It can configure the LTC2986-1, check and save the con-
figuration, run the LTC2986-1, output the results into a
file, and even create Linduino One ready C code based on
the configuration. The demo software allows the user to
configure the LTC2986-1 manually or automatically from
www.linear.com/ data stored in the daughter board EEPROM. Please see
www.linear.com/LTC2986software
manual. It includes a short tutorial for getting started.
Figure 2 shows a screenshot of the demo software at
start-up.

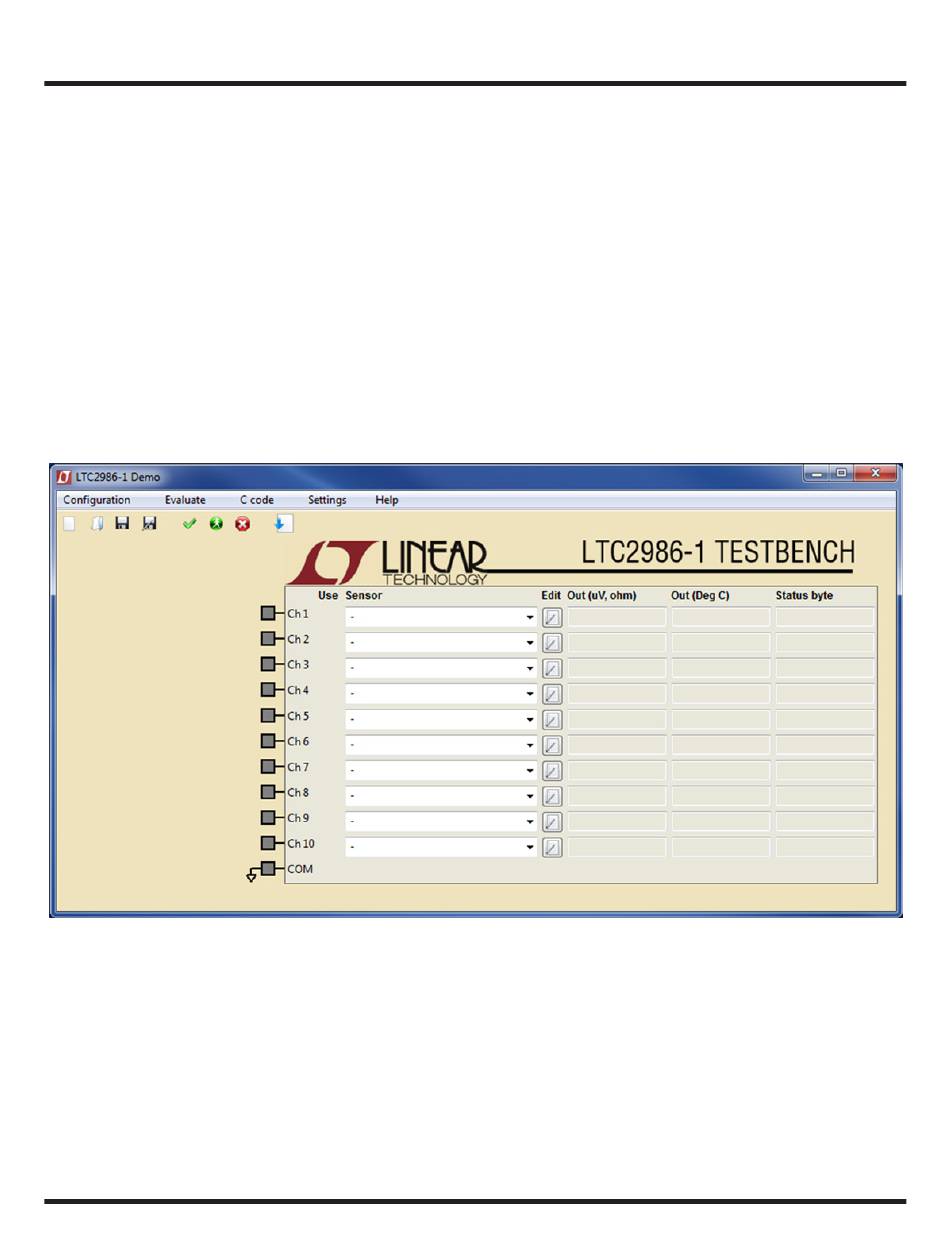

Figure 2. LTC2986-1 Demo Software
for the demo software
dc2608f
