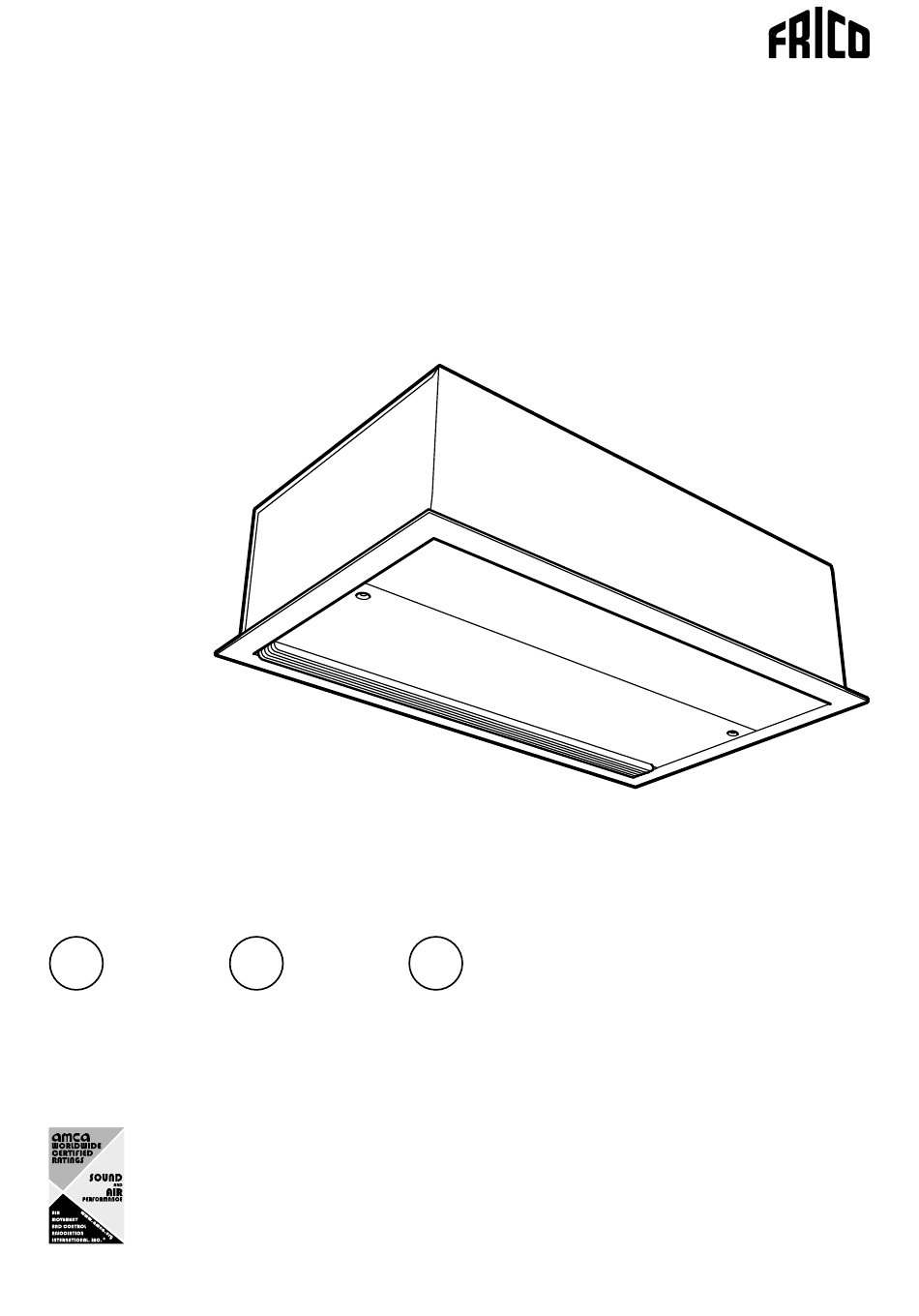

Frico AB certifies that the AREC4000A, AREC4000E and AREC4000W air curtains shown herein
are licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures
performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply
with the requirements of the AMCA Certified Ratings Program. The AMCA Certified Ratings Seal
applies to airflow rate, average outlet velocity, outlet velocity uniformity, velocity projection and
power rating at free delivery only.

Advertisement

Table of Contents
loading

Related Manuals for Frico AREC4025E Series

Summary of Contents for Frico AREC4025E Series

  • Page 1 ..32 ..22 Frico AB certifies that the AREC4000A, AREC4000E and AREC4000W air curtains shown herein are licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.
  • Page 2 AREC4000 Metric chart 1 Ambient, no heat - AREC4000A (IP20) Type Output Airflow* Sound Motor Voltage Amperage Weight power* power motor motor [kW] [dB(A)] [kg] AREC4010A-NA 2600 208V1~ AREC4015A-NA 3650 208V1~ AREC4020A-NA 5200 1008 208V1~ AREC4025A-NA 6200 1174 208V1~ 3 Electrical heat - AREC4000E (IP20) Type Output Airflow*...
  • Page 3 Uniformity [%] Uniformity [%] Frico AB certifies that the AREC4000A, AREC4000E and AREC4000W air curtains shown herein are licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.

  • Page 4: Imperial Chart

    AREC4000 Imperial chart 1 Ambient, no heat - AREC4000A (IP20) Type Output Airflow* Sound Motor Voltage Amperage Weight power* power motor motor [MBH] [cfm] [dB(A)] [lb] AREC4010A-NA 1530 208V1~ AREC4015A-NA 2150 208V1~ AREC4020A-NA 3050 1008 208V1~ AREC4025A-NA 3650 1174 208V1~ 3 Electrical heat - AREC4000E (IP20) Type Output...
  • Page 5 Uniformity [%] Uniformity [%] Frico AB certifies that the AREC4000A, AREC4000E and AREC4000W air curtains shown herein are licensed to bear the AMCA Seal. The ratings shown are based on tests and procedures performed in accordance with AMCA Publication 211 and AMCA Publication 311 and comply with the requirements of the AMCA Certified Ratings Program.
  • Page 6 AREC4000 Output charts water AREC4000W Metric chart Supply water temperature:80 °C Water temperature: 80/60 °C Room temperature: +18 °C Room temperature: +18 °C Outlet air temperature: +35 °C* Type Airflow Output Return Water Pressure Output* Outlet Water Pressure position water flow drop air temp.
  • Page 7 AREC4000 The introduction pages consist mainly of pictures. For translation of the English texts used, see the respective language pages. Les pages de présentation contiennent principalement des images. Pour la traduction des textes en anglais, consultez la page correspondante à la langue souhaitée.
  • Page 8 AREC4000 E / F / G / H 1 m: 4 x M8 1,5 m: 4 x M8 2 m: 6 x M8 2,5 m: 6-8 x M8 ø29 ø29 ø20 A / B / C / D Metric 1 m: 4 x M8 1.5 m: 4 x M8...

  • Page 9: Top View

    AREC4000 Mounting on threaded bars outside the unit Top view AREC4010x Metric Imperial Product type [mm] [in] 35.36 AREC4010x 34.04 AREC4010x 0.80 AREC4010x 1.16 AREC4010x 2.84 AREC4010x ø20 2.24 AREC4010x ø29 8.72 AREC4010x ø29 1400 56.00 AREC4015x 34.04 AREC4015x 37.80 AREC4020x 34.04 AREC4020x...
  • Page 10 AREC4000 Mounting on threaded bars outside the unit Fig. 1a: Mounting brackets on delivery. AREC4020x-NA AREC4025x-NA Fig. 1b. Mounting on threaded bars outside the unit.
  • Page 11 AREC4000 Mounting on threaded bars inside the unit Top view AREC4010x Metric Imperial Product type [mm] [in] 14.52 AREC4010x 13.60 AREC4010x 17.20 AREC4010x 0.80 AREC4010x 1.16 AREC4010x ø29 2.24 AREC4010x ø20 11.64 AREC4010x ø29 19.36 AREC4010x 8.72 AREC4010x 2.84 AREC4010x 16.44 AREC4015x AREC4015x...
  • Page 12 AREC4000 Mounting on threaded bars inside the unit Metric 1 m: 4 x M8 1.5 m: 4 x M8 2 m: 6 x M8 2.5 m: 6-8 x M8 1 m: 4 x M8 Imperial 1,5 m: 4 x M8 3.3 ft: 4 x M8 2 m:...
  • Page 13 AREC4000 AREC 90° Service hatch Fig. 3: Snap fixings Fig. 4: SIRe inside the unit. Fig. 5: Hoses are mounted via cable glands at knockouts to protect the hose and prevent air leakage.
  • Page 14 AREC4000 Accessories PA34TR PA34CB PA34VD FHDN20 AR42XTT See separate manual. Accessory Product type Quantity Metric Imperial PA34TR15 AREC4010/15x 4 pcs L: 1 m L: 3.3 ft PA34TR20 AREC4020x 6 pcs L: 1 m L: 3.3 ft PA34TR30 AREC4025x 8 pcs L: 1 m L: 3.3 ft PA34CB15...
  • Page 15 AREC4000 SIRe Metric Imperial SIReAC SIReAA SIReRTX 70x33x23 mm 2.8x1.3x0.9 in SIReAC/SIReAA SIReRTX SIReWTA SIReCJ4 SIReCJ6 SIReCC603 9.8 ft SIReCC605 16.4 ft SIReCJ4/SIReCJ6 SIReWTA SIReCC610 10 m 32.8 ft SIReCC615 15 m 49.2 ft SIReCC640 40 m 131.2 ft SIReCC403 9.8 ft SIReCC405 16.4 ft...
  • Page 16 AREC4000 AREC4000A/W 4025WA/4020WA/4015WA 4010WA SIRe B1EC Trafo AREC4000W/A PAEC4000W/A 161120 PE L1 L2 208V1~...
  • Page 17 AREC4000 AREC4010/15E-208V Actuator 230V Supply 230V Room...
  • Page 18 AREC4000 AREC4020/25E-208V Actuator 230V Supply 2 30V Room...
  • Page 19 AREC4000 AREC4010/15E-480V/600V A ctuato r 230V S upply 230V R oom...
  • Page 20 AREC4000 AREC4020/25E-480V/600V Actuator 230V Supply 230V Room...
  • Page 21 AREC4000 • Read the safety instructions before performing installation and/or maintenance activities on the unit. • Installation and/or maintenance activities on the unit may only be performed by qualified technical staff. • The unit shall not be installed and used outdoors or in environments that are aggressive, or potentially explosive.

  • Page 22: General Instructions

    AREC4000 Installation and operating instructions General Instructions Mounting on threaded bars outside the unit Read these instructions carefully prior to 1. The mounting brackets are fixed to the unit installation and use. Keep this manual for during transport. Loosen these, turn them future reference.

  • Page 23: Maintenance

    Note that the unit shall be preceded by a snap fixings lock securely. regulating valve, see Frico valve kit. The connections to the heating coil must Maintenance be equipped with shut off valves to allow Since fan motors and other components are trouble-free removal.

  • Page 24: Troubleshooting

    AREC4000 Overheating Replacing the water coil (W) The air curtain unit with electrical heating is 1. Shut off the water supply to the unit. equipped with an overheat protection. If it is 2. Open the vent valve. deployed due to overheating, reset as follows: 3.
  • Page 25 AREC4000 Residual current circuit breaker (E) Safety When the installation is protected by means of • For all installations of electrically heated a residual current circuit breaker, which trips products a residual current circuit breaker when the appliance is connected, this may be 300 mA for fire protection should be used.
