- Page 1 IC6CLASS-54 CEILING LOUDSPEAKERS EN54-24 In-ceiling /In-wall High-end Loudspeaker USER MANUAL v.20190405...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK ......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................ 5 INTRODUCTION ........................5 MAIN CHARACTERISTICS: ....................5 LOCATION, ASSEMBLY AND CONNECTIONS ..............6 PAINT ............................7 TECHNICAL CHARACTERISTICS ..................8 Coverage angles ..........................8 Frequency response and impedance vs. frequency ..............9 Coverage diagrams .......................... -
Page 3: Important Remark
1. IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
-
Page 5: Important Note

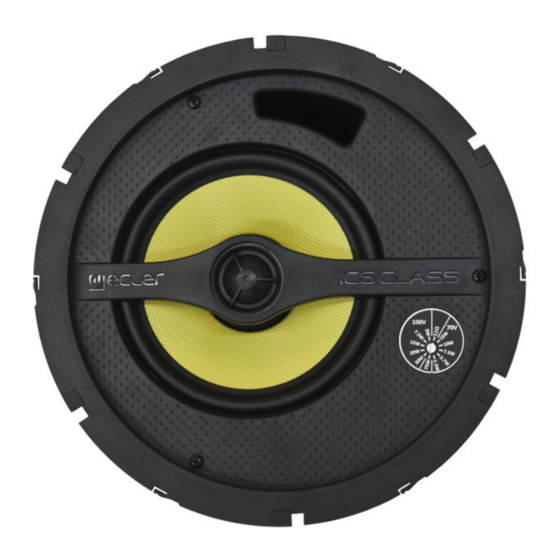

Ecler IC6CLASS-54 comes with a 1-year warranty. 4. INTRODUCTION ECLER IC6CLASS-54 is a low and high impedance 2-way loudspeaker which features a design in accordance with EN54-24 standard (Fire detection and fire alarm systems, Voice alarms - Loudspeakers), including a fire rated back can, ceramic connection terminals, thermal fuse and Internal FR wiring. -
Page 6: Location, Assembly And Connections
6. LOCATION, ASSEMBLY AND CONNECTIONS For proper product installation, circular holes have to be made in selected places and the appropriate wiring has to be prepared for each unit. Here are the steps to follow for proper installation: 1. Make the mounting hole in the drop ceiling, after marking its outline with the supplied cutting template 2. -
Page 7: Paint
8. Using a flat screwdriver, set one of the following taps with the power selector on the front of the speaker: Tap #1 12Ω - 30W Connection to a 70V line Connection to a 100V line Tap #2 1,5 W Tap #3 3,7 W 7,5 W... -
Page 8: Technical Characteristics
TECHNICAL CHARACTERISTICS IC6CLASS-54 Nominal impedance 12Ω RMS power Power options 100V: 30W / 20W / 15W / 7,5W / 3W / 12 Ω 70V: 15W / 10W / 7,5W / 3,7W / 1,5W / 12 Ω Sensitivity 1W/1m 84dB Max SPL 99dB External diameter 270 mm / 10.63”... -
Page 9: Frequency Response And Impedance Vs. Frequency
Frequency response and impedance vs. frequency... -
Page 10: Coverage Diagrams
Coverage diagrams RIGHT LEFT HORIZONTAL... -
Page 12: Mounting Diagram
Mounting diagram... - Page 13 Todas las características del producto están sujetas a variación debido a las tolerancias de producción. NEEC AUDIO BARCELONA S.L. se reserva el derecho a realizar cambios o mejoras en el diseño o la fabricación que puedan afectar estas especificaciones de producto. Motors, 166‐168 08038 Barcelona ‐ España ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
