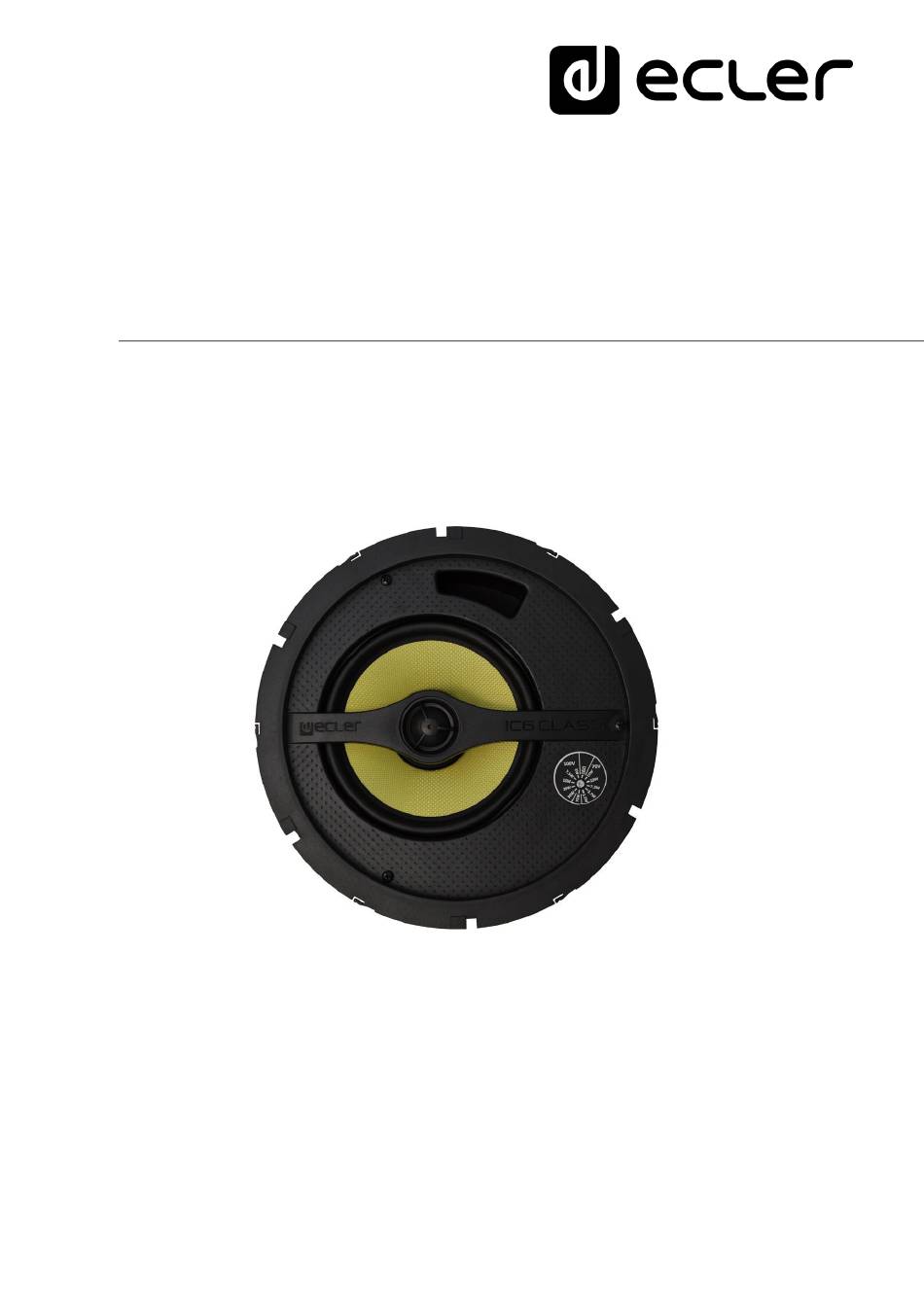

- Page 1 IC6CLASS-TR CEILING LOUDSPEAKERS In-ceiling / In-wall High-end Loudspeaker USER MANUAL v.20220321...
-
Page 2: Table Of Contents
INDEX IMPORTANT REMARK ......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................ 5 INTRODUCTION ........................5 MAIN CHARACTERISTICS: ....................5 LOCATION, ASSEMBLY AND CONNECTIONS ..............6 PAINT ............................7 TECHNICAL CHARACTERISTICS ..................7 Mechanical diagrams ......................... 8 Mounting diagram ..........................9... -
Page 3: Important Remark
IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. - Page 4 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
-
Page 5: Important Note

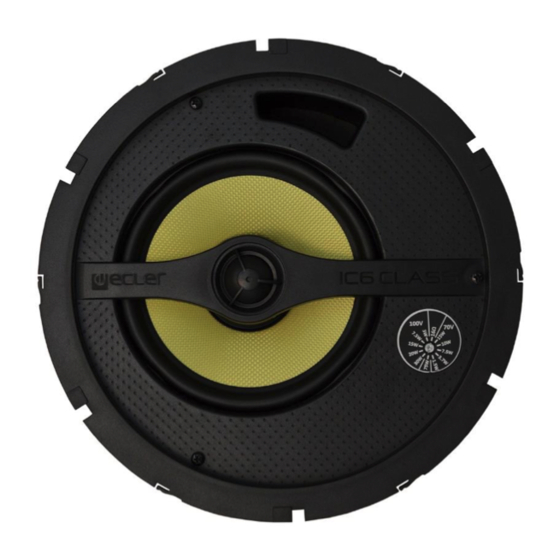

Ecler IC6CLASS-TR comes with a 3-year warranty. INTRODUCTION ECLER IC6CLASS-TR is a high and low impedance 2-way loudspeaker integrates a very careful and efficient selection of components (6" woofer + 1" tweeter), together with a mechanical design that provide a high-quality audio ("Hi-Fidelity" profile sound) and a very fast installation process, just using a basic set of tools. -
Page 6: Location, Assembly And Connections
In most cases, the electro-acoustical response of a ceiling/wall speaker like the IC6CLASS-TR will be better if it is installed in a ceiling or on a wall made of low-porosity materials and without the rear cover. The response in the low frequency range will be especially affected, since these types of ceilings act as baffles”... -
Page 7: Paint
PAINT IC6CLASS-TR is ready to be painted and thus can match any cosmetic criteria of the environment in which it is installed. Once the installation is complete, the front grill is the only visible part of the unit, simply paint it to get the desired result. Paint it carefully, avoiding excess paint from clogging the small holes in its central area. -
Page 8: Mechanical Diagrams
Mechanical diagrams... -
Page 9: Mounting Diagram
Mounting diagram... - Page 10 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
