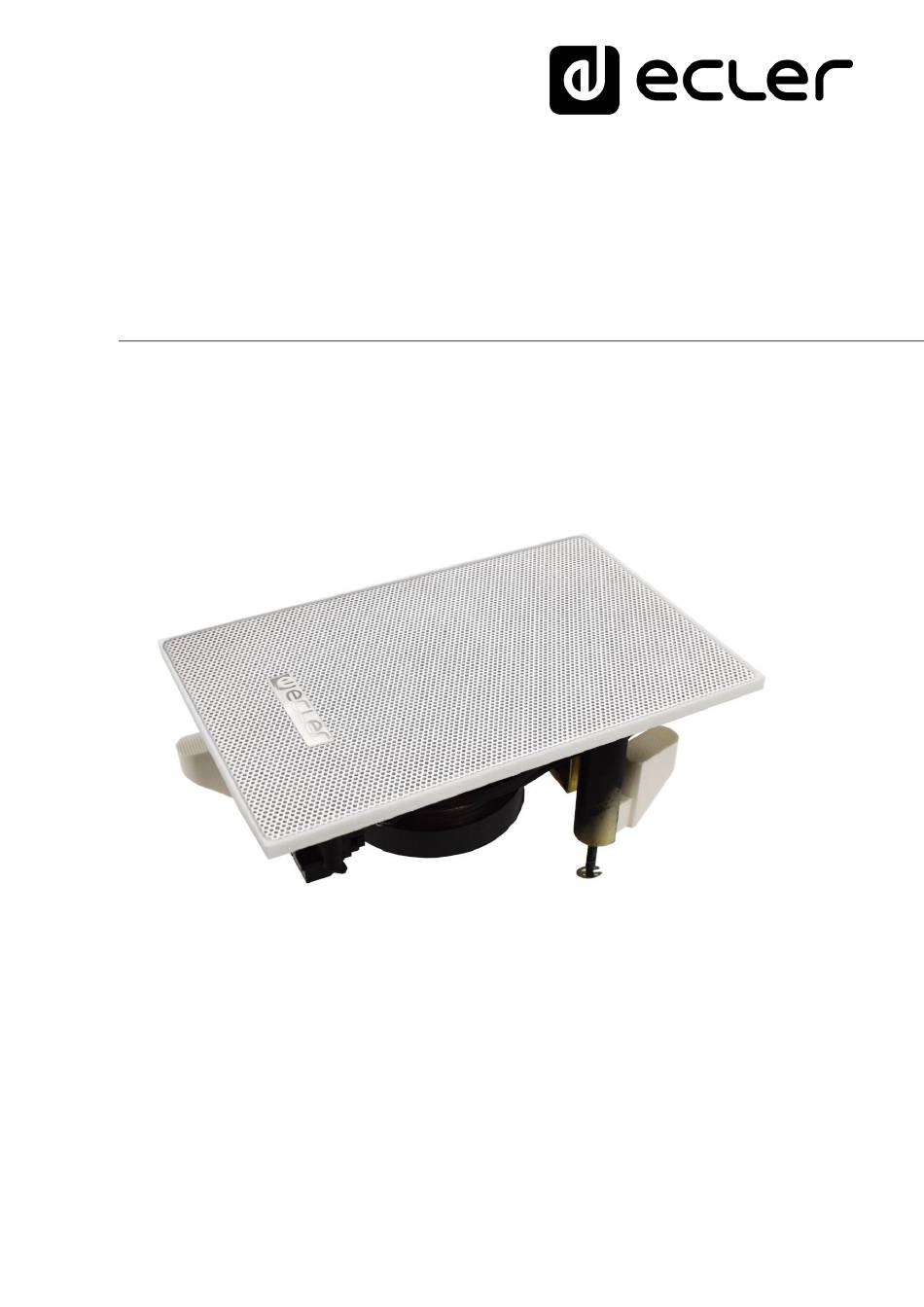

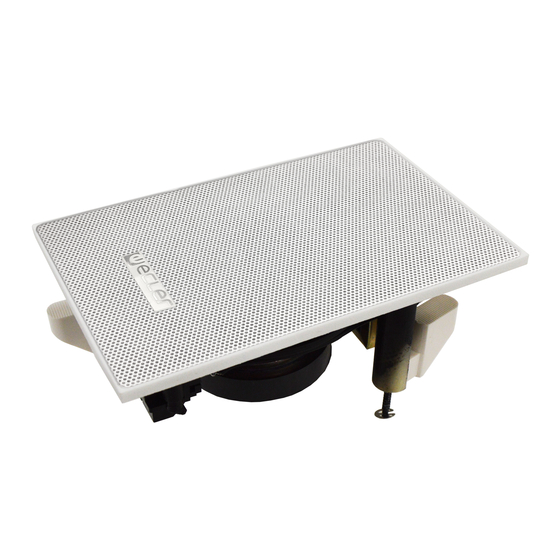

- Page 1 IW103 CEILING LOUDSPEAKERS In-ceiling / In-wall High-end Loudspeaker USER MANUAL v.20220322...
- Page 2 INDEX IMPORTANT REMARK ......................3 IMPORTANT SAFETY INSTRUCTIONS ................3 IMPORTANT NOTE ........................ 5 INTRODUCTION ........................5 MAIN CHARACTERISTICS: ....................5 CONNECTING .......................... 6 INSTALLATION ........................6 TECHNICAL SPECIFICATIONS .................... 7 Mechanical diagrams ......................... 8...
- Page 3 IMPORTANT REMARK The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
- Page 4 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety.
- Page 5 IMPORTANT NOTE Thank you for choosing our Ecler In ceiling / In-wall High-end Loudspeaker IW103! VERY IMPORTANT It is to carefully read this manual and to fully understand its contents before any connection in order to maximize your use and get the best performance from this equipment.
- Page 6 100V position will be reduced to half those indicated on the switchboard. In the event of installations at 50V, it will be reduced to a quarter. Model IW103 incorporates a detachable protective grille. Take care not to damage the loudspeaker when extracting the grille.
- Page 7 5. Tighten the 2 screws accessible from the front part of the unit. The loudspeaker will then be fixed into its final position. 6. Place the protective grille. TECHNICAL SPECIFICATIONS IW103 System Effective frequency range 83 Hz-20 kHz (-10dB) Coverage angle 158°x158°...
- Page 8 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona ‐ Spain ‐ (+34) 932238403 | information@ecler.com www.ecler.com...
