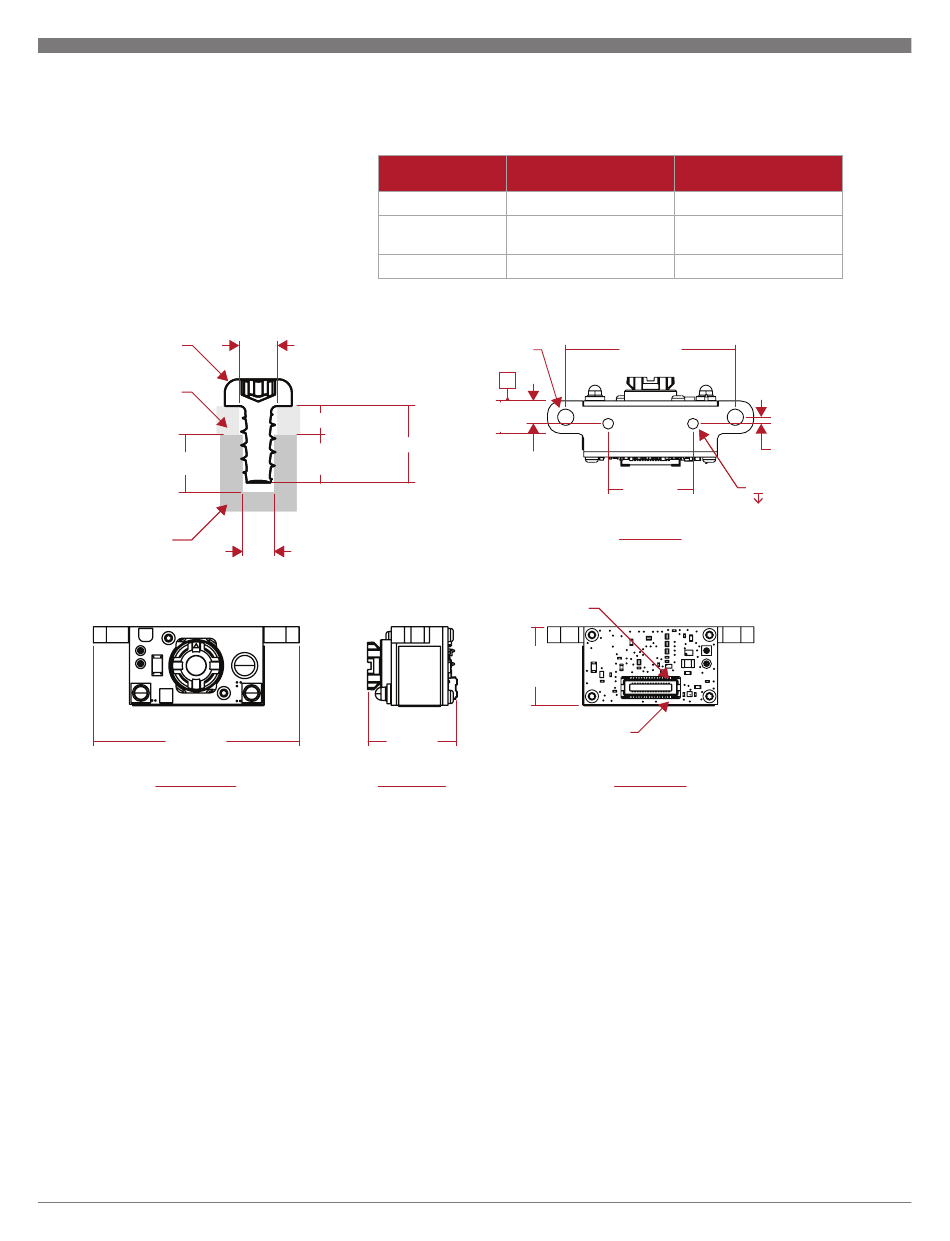

2.5 – Imager with Mounting Tab Mechanical Specifications
1. In addition to the four blind holes (two
on top and two on bottom) available
for mounting with self-tapping screws,
the Imager with mounting tabs has two
2.50mm [.098"] clearance holes.
2. Please use #1-32 Trilobular
®
screw or M1.8 Delta PT thread forming
®
screw, with the following dimensions:
#1-32 OR
M1.8 SCREW
MOUNTING
SUBSTRATE
3.00
[.118]
CR8200
HOUSING
31.60
[1.244]
FRONT VIEW FRONT VIEW
D027173_07 CR821X Dual Board Decoded Scan Engine Integration Guide
Thread Engagement
thread forming
Length (B)
Torque
2.00
[.079]
A
B
2.50 [.098] MAX
2.00 [.079] MIN
1.65
[.065]
13.63
[.537]
SIDE VIEW SIDE VIEW
*Dimension will change based on focus.
Decrease for far focus; increase for near focus.
Minimum
2.00 mm [.079"]
Mounting Substrate
Thickness (A) + 2.00 mm
N/A
2X Φ 2.50 [.098]
A
4.99
[.196]
3.50
[.138]
PIN 1 PIN 1
11.90
[.469]
MOLEX CONNECTOR
*
P/N: 51338-0374
Maximum
2.50 mm [.098"]
Mounting Substrate
Thickness (A) + 2.50 mm
1.5 Ibf-in
26.00
[1.024]
1.00
[.039]
13.00 4X Φ 1.65 [.065]
[.512] 3.00 [.118]
TOP VIEW TOP VIEW
BACK VIEW BACK VIEW
UNITS = MM [INCHES]
