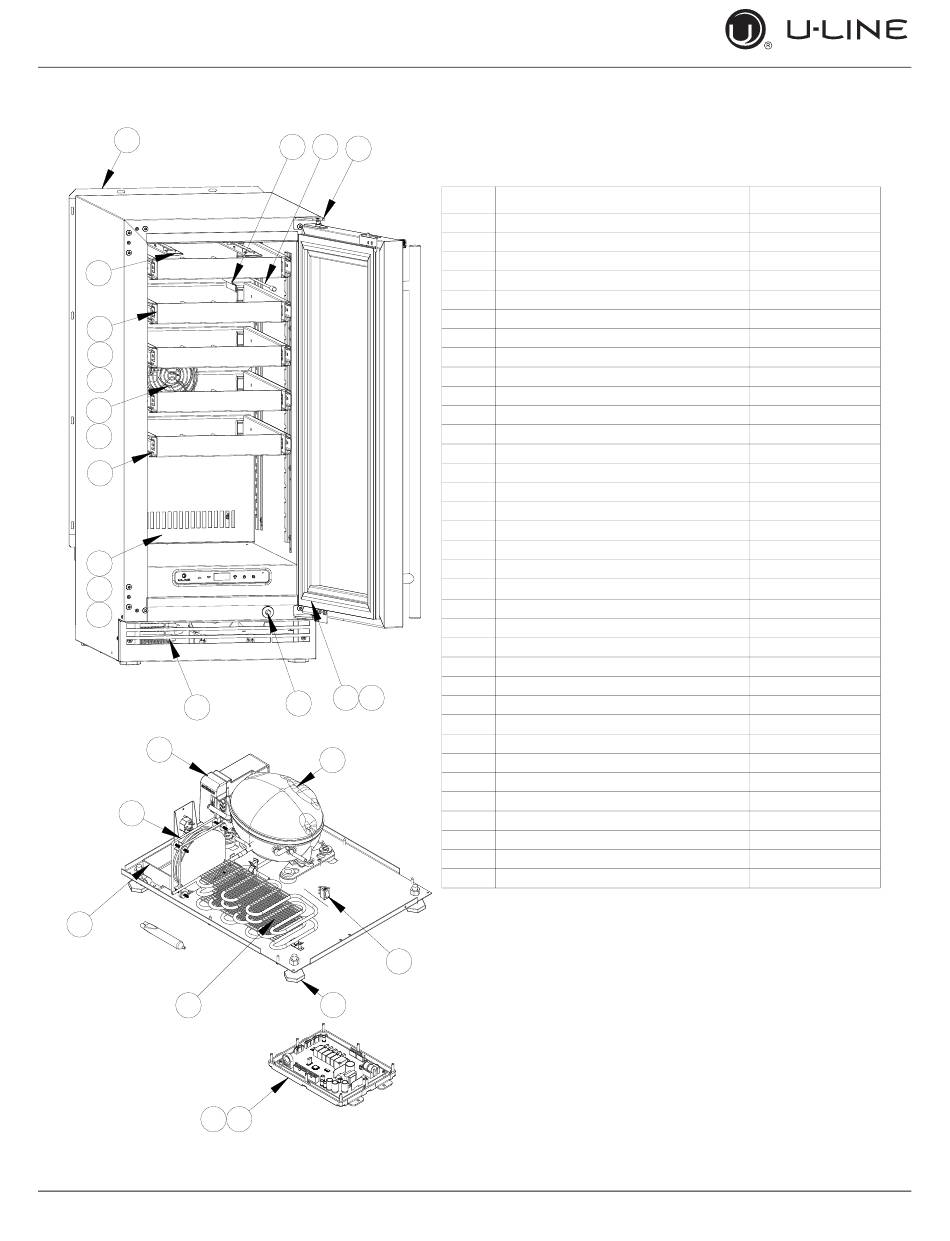

Parts
3
20
30
31
32
13
14
27
12
15
9
17
26
6
8
5
11 21
Parts
29 28
18
Item
10
11
12
13
14
15
16
17
18
19
20 20
21
22
23
24
7 16
23
25
26
27
4
28
29
30
31
32
33
34
*Not Pictured
25
1
UCWC515-SG33A
Description
1 LEG LEVELERS (4) 3/8"-16
2 ANTI-TIP BRACKET W/SCREWS *
3 BACK PANEL, 15"
4 COMPRESSOR 5 CLASS
5 CONDENSER ASSY 5 CLASS
6 CONDENSER FAN W/SCREWS
7 DOOR, 15" SG LOCK W/HINGES
8 DRAIN PAN
9 DRAIN TROUGH 5 CLASS
DRIER
ENCLOSURE ASSEMBLY, BOARD
EVAPORATOR ASSEMBLY
EVAPORATOR FAN
EVAPORATOR FAN COVER W/SCREWS
EVAP SS COVER 15"
GASKET, DOOR 15" NSF
GRILLE, 15" 5 CLASS
HINGE ASSEMBLY, NSF
HI TEMP THERMISTOR *
LIGHT ASM, 2 COLOR LIGHT ASM, 2 COLOR
MAIN BOARD/DISPLAY ASSEMBLY
PACKAGING *
PLUNGER SWITCH, NUGGET
POWER CORD, EXTERNAL *
ROCKER SWITCH
SERIAL INVERTER
SLIDE ASSY, 5 CLASS
THERMISTOR (1 PC)
THERMISTOR COVER, 5 CLASS
WINE RACK, 15" 5 CLASS
WINE RACK FRONT 15" 5 CLASS
WINE RACK W/RAILS 15" 5 CLASS
WIRE HARNESS, HI VOLTAGE *
WIRE HARNESS, LOW VOLTAGE *
