USER GUIDE

Interior Adjustments

All models feature side mounted rack supports with 19
adjustment positions.
All Wine Refrigerator models ship with 5 racks designed
to hold the maximum number of typical white and red
wine bottles. Remove and reposition racks as desired to
accommodate a variety of bottle sizes and shapes.
Note: Do not exceed 52.8 lb (24 kg) per shelf when
loading.

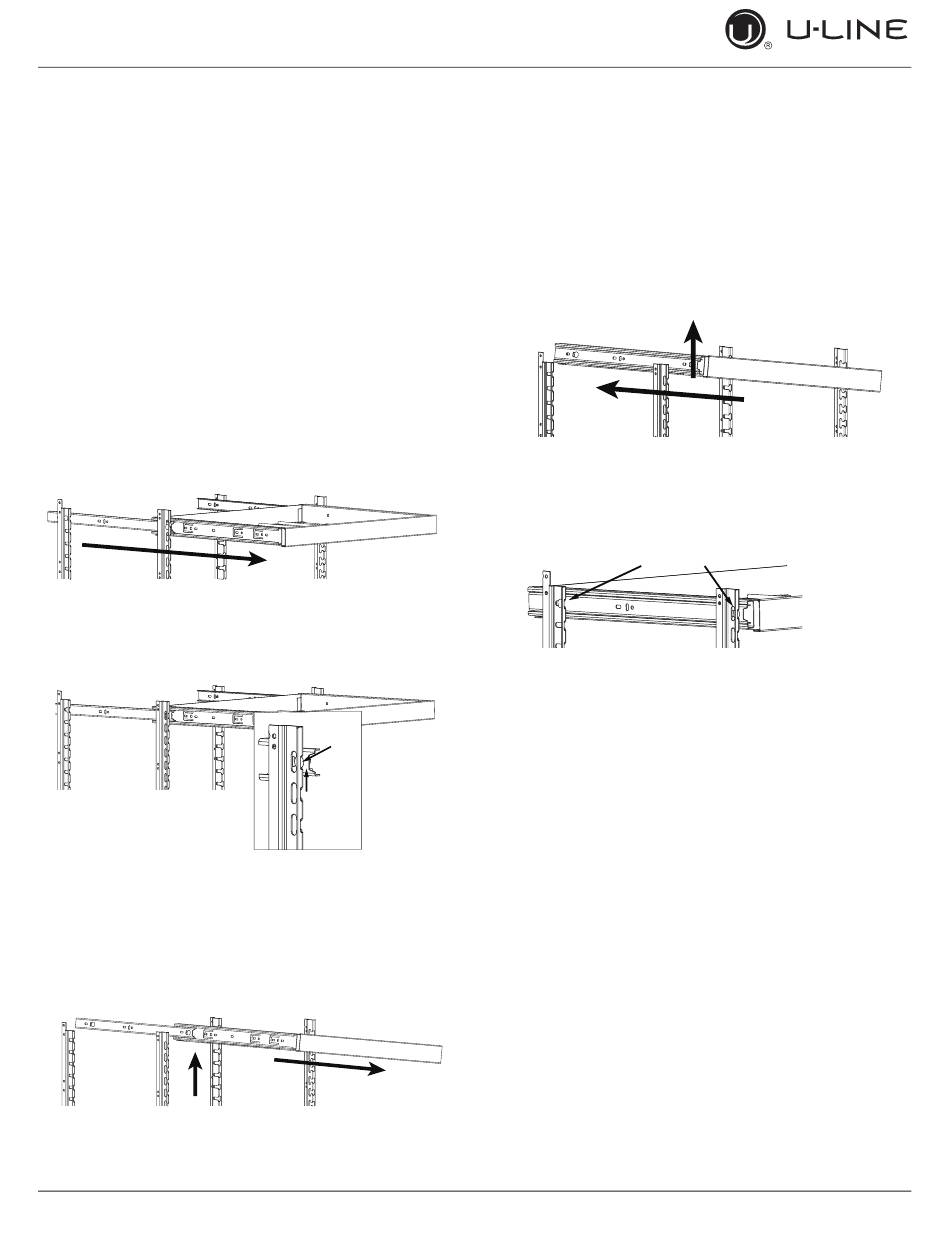

WINE RACK ADJUSTMENT
Wine Rack Removal
1. Fully extend empty rack
2. Firmly grasp both sides of rack and lift front end of
rack slightly (about 1/4") to center the pin in the slot.
3. Pull rack towards you until all pins are clear of the
slots. If only repositioning the rack, do not remove
completely - go to "Rack Installation" Step 2.
4. Slightly tilt one side. Gently pull rack towards you to
remove rack from unit.
Note: Take care when removing rack to avoid
scratching interior of unit.
Interior Adjustments
Center
the pin
Center
Center
the pin
the pin
Center
the pin
17
5. Once removed, retract the slides.
Note: The slides on the rack have a thin coating which
is used to block moisture and provide lubrication. Use
care when handling.
Wine Rack Installation
1. Insert empty rack into unit with one side tilted slightly
downward until back pin is between front and rear rail
supports.
2. Tilt rack back to horizontal and line up 2 back pins
with back slots.
Center
the pins
Back Pin
3. Line up 2 back pins with 2 back slots and 2 front pins
with 2 front slots.
Center
the pins
4. Continue inserting rack until all four pins are fully
inserted. Front of rack will set down slightly into the
front slots and be locked into position.
Back Pin
u-line.com
Center
the pins
Front Pin
Front Pin
Back Pin
Center
Center
the pins
Front Pin the pins
Back Pin
Back Pin
