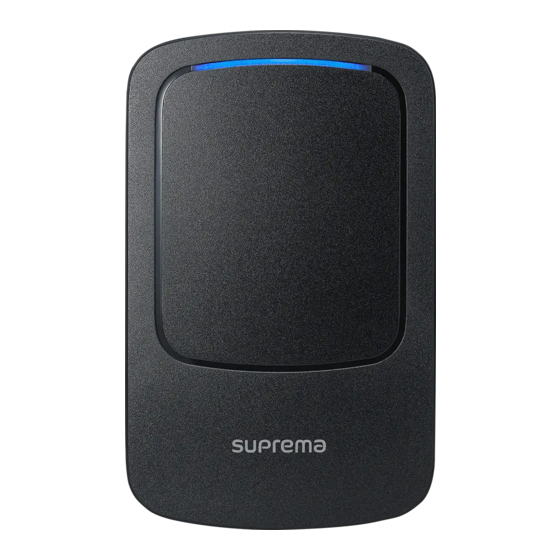

- Page 1 XPass D2 (XPD2-GKDBS, XPD2-GDBS, XPD2-GKDB, XPD2-GDB) INSTALLATION GUIDE Version 1.00 English EN 101.00.XPD2-GKDB V1.00A...
-
Page 2: Table Of Contents
Contents Safety instructions .................... 3 Introduction ...................... 5 Components ..............................5 Name and function of each part ....................... 6 Cables and connectors ..............................7 Installation ......................8 Fixing the bracket and the product ......................8 Cable connection ............................10 Power supply connection ..............................10 RS-485 connection ................................10 Wiegand and other cable connections ........................11 Restoring the Factory Defaults ........................ -
Page 3: Safety Instructions
Safety instructions Safety instructions Observe the following instructions to use the product safely and prevent any risk of injury or property damage. Warning Noncompliance of instructions could lead to serious injury or death. Installation Do not install the product in a place with direct sunlight, moisture, dust, or soot. A fire or electric shock may occur. - Page 4 Safety instructions Operation Do not drop the product or apply an impact to the product. A product failure may occur. • When cleaning the product, wipe the product with a soft and dry cloth and no water, benzene or alcohol. Otherwise, a product failure may occur.
-
Page 5: Introduction
Introduction Introduction Components Drilling Template XPass D2 Wall Bracket Wall Fixing Screw x 2 Bracket Fixing Screw 120 Ω resistor PVC Anchor x 2 (Star Shaped) Shrink Tube Quick Guide Open Source Software Guide NOTE Components may vary according to the installation environment. •... -
Page 6: Name And Function Of Each Part
Introduction Name and function of each part LED lamp Keypad RF card authentication unit Reset button Cable Name Description LED lamp Indicates the operational status of the device with the color of the LED lamp. Used to authenticate by entering the user ID directly. If you want to enter the ID directly, change the authentication method settings in BioStar 2. - Page 7 Introduction Name and function of each part LED lamp RF card authentication unit Reset button Cable Name Description LED lamp Indicates the operational status of the device with the color of the LED lamp. RF card authentication unit Reads RF cards for entering and exiting. Reset button Initialize the device.
-
Page 8: Cables And Connectors
Introduction Cables and connectors Name Color PWR +VDC Black (White stripe) 485 TRXN Yellow (Black stripe) 485 TRXP Blue (White stripe) Green WG D0 WG D1 White LED RED Orange LED GRN Brown BEEP Purple TMPR Gray... - Page 9 Introduction Name and function of each part LED lamp RF card authentication unit Reset button Cable Name Description LED lamp Indicates the operational status of the device with the color of the LED lamp. RF card authentication unit Reads RF cards for entering and exiting. Reset button Initialize the device.
-
Page 10: Installation
Installation Installation Fixing the bracket and the product Determine the correct position to install the bracket using the provided drilling template. Fix the bracket firmly using fixing screws through the bracket to the position where XPass D2 will be installed. NOTE If installing XPass D2 on a concrete wall, drill holes, insert PVC anchors, and fix them with fixing screws. - Page 11 Installation Install XPass D2 onto the fixed bracket. Wall Wall Assemble XPass D2 with the bracket by rotating the product fixing screw. Wall Wall NOTE When assembling the product with the bracket, you can use the included bracket fixing screw(Star Shaped) instead of the product •...
-
Page 12: Cable Connection
Installation Cable connection XPass D2 can be used as an RFID card reader by connecting to a master device or a CoreStation. Power supply connection XPass D2 1 - PWR +VDC 2 - GND Black (White stripe) DC power NOTE •... -
Page 13: Wiegand And Other Cable Connections
Installation Wiegand and other cable connections 1 - PWR +VDC XPass D2 2 - GND Black (White stripe) 5 - WG D0 Green 6 - WG D1 White DC power 7 - LED RED Orange 8 - LED GRN Brown 9 - BEEP Purple 10 - TMPR... -
Page 14: Product Specifications
Product specifications Product specifications Specification Category Feature XPD2-GKDB LF card option HF card option MIFARE, MIFARE Plus, DESFire/EV1, FeliCa Credential NFC card Supported BLE card Supported RF read range MIFARE/DESFire/EM : 50 mm, FeliCa: 30 mm 80 MHz Memory 256 KB Flash + 64 KB RAM Multi-color Sound Multi-tone Buzzer... -
Page 15: Dimensions
Product specifications Dimensions (Unit: mm) * The tolerance is ±0.3mm. 116.1 72.4... - Page 16 Product specifications Dimensions (Unit: mm) * The tolerance is ±0.3mm. 116.1 72.4...
-
Page 17: Fcc Compliance Information
FCC compliance information compliance information Copyright notice The copyright of this document is vested in Suprema. The rights of other product names, trademarks and registered trademarks are vested in each individual or organization that owns such rights. Warning & Safety Information... -
Page 18: Appendices
Suprema's products. Do not use the product of Suprema under the situations related to medical, rescue of human lives, or maintenance of life, as a •... - Page 19 Tel: +82 31 783 4502 I Fax: +82 31 783 4503 I Inquiry: sales@supremainc.com ©2018 Suprema Inc. Suprema and identifying product names and numbers herein are registered trade marks of Suprema, Inc. All non-Suprema brands and product names are trademarks or registered trademarks of their respective companies. Product appearance, build status and/or specifications are subject to change without notice.
