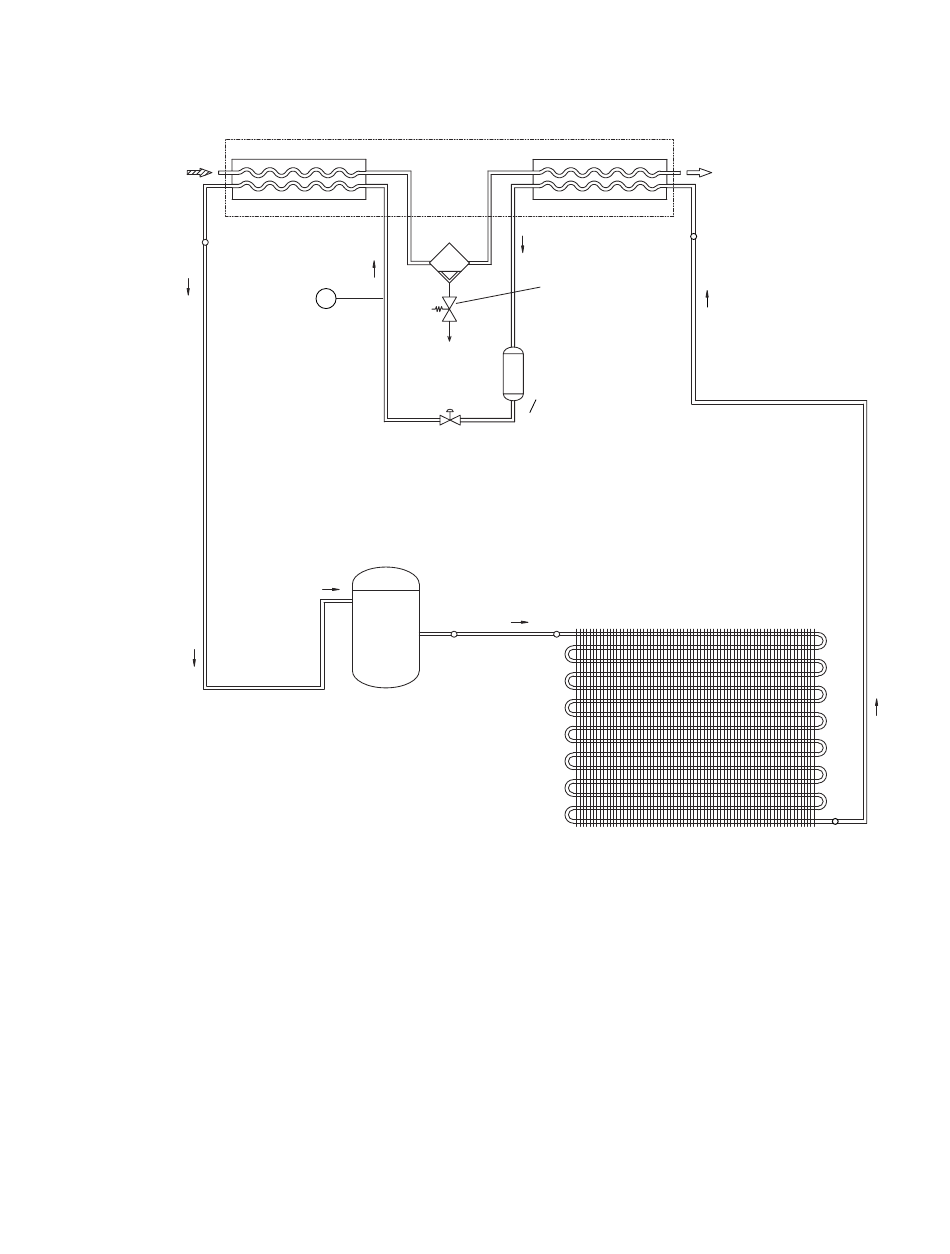

AIR AND REFRIGERANT FLOW SCHEMATICS

HEAT EXCHANGER
EVAPORATOR REHEATER
AIR INLET AIR OUTLET
AUX. CONDENSER
CHILLER
ELECTRONIC
C.I.
DRAIN
VALVE
COLOR INDICATOR
DRAIN OUTLET
LIQUID RECEIVER
FILTER DRYER
CONSTANT PRESSURE
EXPANSION VALVE
REF. COMPRESSOR
CONDENSER
Figure 2
25-50 scfm models
