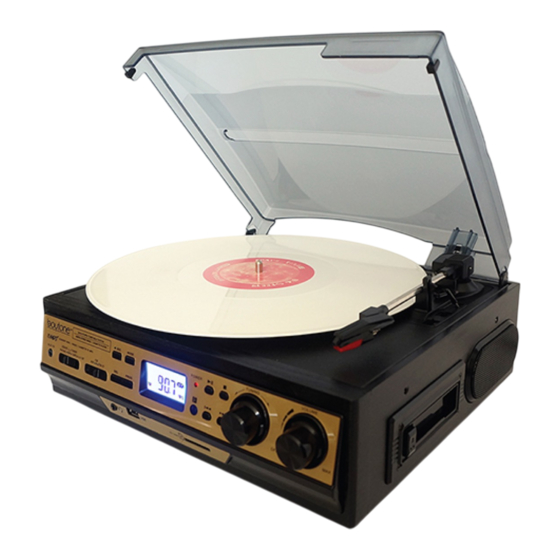

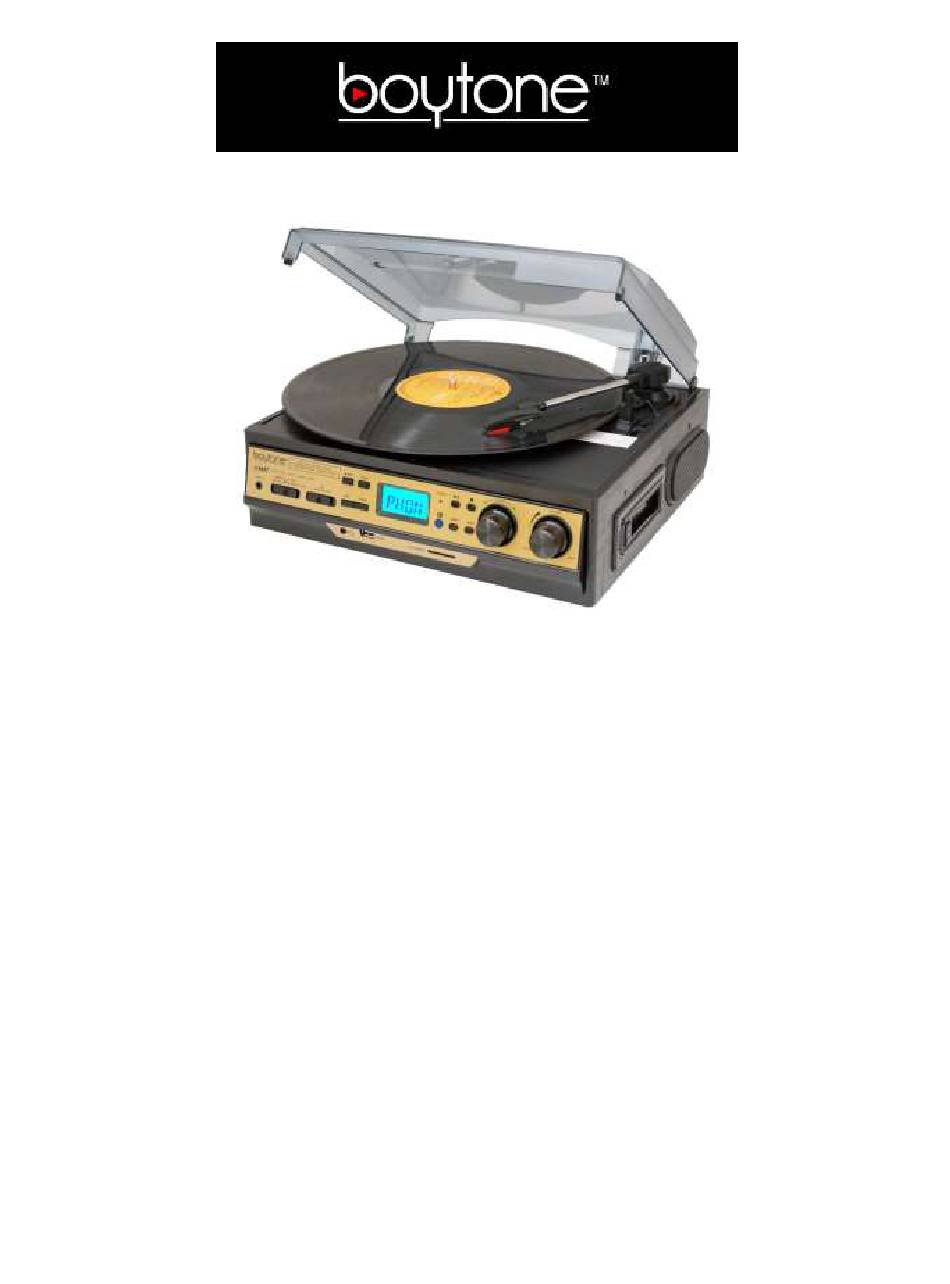

- Page 1 Turntable/Cassette Player With USB/SD and Radio Model Number BT-27G-C INSTRUCTION MANUAL...
-
Page 2: General Safety Instructions
General Safety Instructions Read this manual thoroughly before first use and keep it in a safe place for future reference, along with the completed warranty card, purchase receipt and carton. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Follow all instructions and take notice of all warnings to reduce the risk of fire or electric shock. -
Page 3: Usage Conditions And Restrictions
• Unplug the unit from the power outlet after use to avoid possible damage during electrical storms, or when the equipment will be unattended or unused for a long period of time. • Do not let the cord hang over the edge of a table or counter, or touch any hot surface. Do not allow anything to rest on or roll over the power cord, and run any cords so that no one steps on or trips over them. -
Page 4: Parts List
• The equipment is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 5 9 Program button 10 USB port 11 LC display 12 Power LED indicator 13 Play/Pause button 14 Stop button 15 Volume knob 16 Tuning knob 17 Skip up button 18 Skip down button 19 SD/MMC card slot...
-
Page 6: Getting Started
20 Right speaker 21 45 rpm adaptor 22 Lift lever 23 Auto stop control 24 Speed selector (33/45/78 rpm) 25 Tone arm 26 Line out sockets 27FM wire antenna 28 AC power cord Getting Started Before first use • Remove all packaging and protective materials from the appliance and dispose of them responsibly. -
Page 7: Installation
• Refer to the Parts List on pages 7 to 8 to familiarize yourself with the product and identify all parts. Installation • Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made. -
Page 8: Listening To Radio
Features Features • Variable turntable speed (33, 45, 78 rpm) • Automatic/manual stop turntable • Belt-driven system • Direct USB/SD encoding for turntable and auxiliary input • Auxiliary input for connection of other device (e.g. CD player or MP3 player) •... -
Page 9: The Record Player
7. AM reception: the receiver has a built-in AM bar antenna. If reception is weak, slightly rotate or reposition the unit to improve AM reception. 8. FM reception: the receiver has a built-in FM wire antenna hanging at the rear cabinet. For best reception, completely unravel and extend this wire. -
Page 10: Playing A Record
Playing a record 1. Open the dust cover and turn the volume knob clockwise to turn the equipment on. 2. Use the function selector to select PHONO mode. 3. Set the speed selector to the appropriate position: 33, 45 or 78, depending on the record to be played. -
Page 11: Phono Encoding
13. When you have finished playing records, engage the tone arm lock to protect it from accidental movement. Turn the volume knob in a counterclockwise direction to switch the unit off. Unplug it from the power supply if you are not going to use it for a while. NOTE: Should your record stop before the last track finishes, set the auto stop control to OFF. - Page 12 The auxiliary input Listening to a CD (or other auxiliary input) 1. Turn the volume knob clockwise to turn the equipment on. 2. Use the function selector to select AUX mode, then connect the external audio device (such as a CD player) to the AUX IN socket at the front of the equipment. The audio signal from the external audio device will now be played through the system.
- Page 13 The USB Port and SD Card Slot Playback of music in MP3/WMA format via USB device or memory card The system is able to decode and playback all MP3/WMA files stored in the memory media connected to the USB port or SD/MMC card slot. 1.
-
Page 14: Important Notes
SKIP UP Press this button once to play the next file, press and hold this button to fast forward through the files/tracks. SKIP DOWN Press this button once to play the previous file, press and hold this button to fast reverse through the files/tracks. - Page 15 6. When all desired tracks have been programmed, press the PLAY/PAUSE button to play the tracks in the assigned order. 7. To cancel programming, move the function selector to another mode (e.g. tuner, phono). Copying of MP3 / WMA files The system allows you to copy files from USB to SD/MMC or vice versa.
- Page 16 2. Press the record REC button: “ONE” will be flashing on the display. Press the SKIP UP or SKIP DOWN button to select “ALL” on the display. Press the record REC button again to confirm. 3. The USB or SD icon will be flashing on the display while the system is copying the files/tracks. 4.
- Page 17 2. Press the delete DEL button: “ONE” will be flashing on the display. Press theSKIP UP or SKIP DOWN button to select “ALL” on the display. Press the delete DEL button again to confirm. 3. While the system is deleting the files/tracks, the USB or SD icon will be flashing on the display until the deletion is complete.
- Page 18 • When playing music from a USB device (or SD/MMC card), make sure the memory device is properly inserted in the USB port (SD/MMC card slot) and the correct MODE is selected. Problems with radio reception • Make sure you are in an area that can receive signals for your selected radio station. •...
