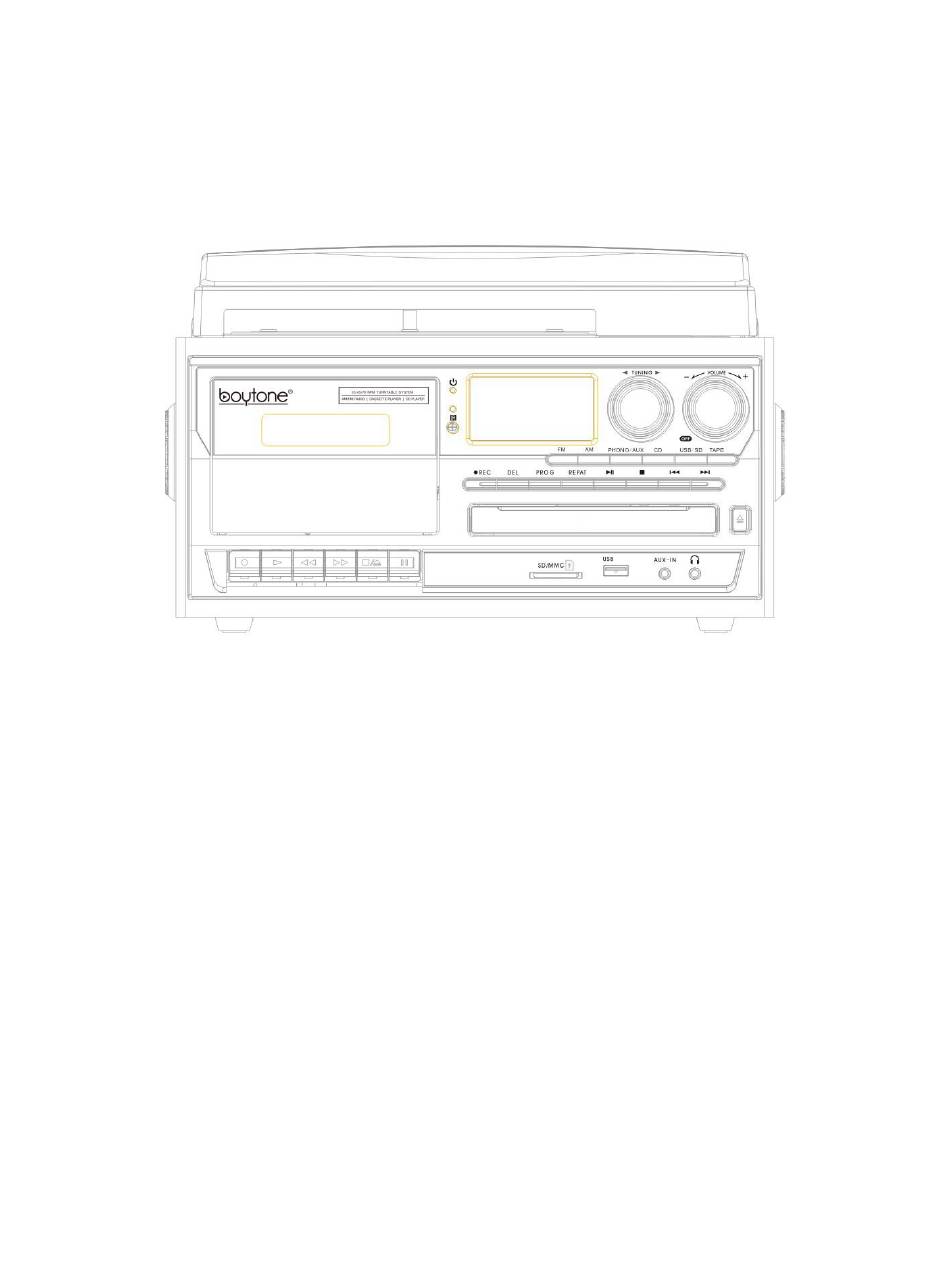

- Page 1 ® BOYTONE Turntable with CD Player, AM/FM Radio, Cassette Player & MP3 Encoding MODEL(S): BT28SPB BT28SPS ----------------------------------------------------------- Operating Instructions Manual...
-
Page 2: Important Safety Instructions
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE SHOCK HAZARD, DO EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. -
Page 3: Unpacking And Setup
Avoid installing this unit in places exposed to direct sunlight or close to heat radiating appliances such as electric heaters, on top of other stereo equipment that radiates too much heat, places lacking ventilation or dusty areas, places subject to constant vibration and/or humid or moist areas. Do not attempt to clean this unit with chemical solvents as this might damage the finish. -
Page 4: Protect Your Furniture
PROTECT YOUR FURNITURE This model is equipped with non-skid rubber 'feet' to prevent the product from moving when you operate the controls. These 'feet' are made from non-migrating rubber material specially formulated to avoid leaving any marks or stains on your furniture. However certain types of oil based furniture polishes, wood preservatives, or cleaning sprays may cause the rubber 'feet' to soften, and leave marks or a rubber residue on the furniture. -
Page 5: Back Panel
PHONOGRAPH 30) 45 rpm adaptor 31) Lift lever 32) Auto stop control 33) Tone arm lock 34) Speed selector (33/45/78 rpm) 35) Tone arm BACK PANEL 18) RCA Line out jack 19) FM wire antenna 20) AC power cord REMOTE CONTROL 41) Mute button 42) Program button 43) Repeat button... -
Page 6: Listening To Radio
NOTE: All the buttons on the remote control just use for CD/USB/SD function. OPERATING INSTRUCTIONS Listening to radio Turn the volume knob in a clockwise direction to turn the equipment on. Use the function selector to select TUNER mode. Use the radio band selector to select the desired band (AM, FM or FM-Stereo). Turn and hold the tuning knob for a few seconds to tune into a radio station. -
Page 7: Phono Encoding
5. Place the record on the turntable (use the 45 rpm adaptor, if required). 6. Move the lift lever towards the back to raise the tone arm from the arm park, then slowly move the arm to the record, as illustrated on the right. The turntable will start rotating. -
Page 8: Cassette Operation
(You can skip this step if only a USB drive or an SD/MMC card is inserted.) 5. The system will start the encoding mode after a few seconds. 6. Lower the tone arm to start playback of the record. During encoding, the USB or SD icon will be flashing on the display. - Page 9 3) FORWARD----------When Cassette Stop -------Press FORWARD. push – Cassette function stop, 2 push open cassette 4) STOP/EJECT-----1 5) RECORDER--------Recording from RADIO / PHONO /AUX IN / CD / USB / SD to TAPE a) RADIO / PHONO /AUX IN / CD / USB / SD-------During playing -------Press Tape”EJECT”----Open tape door-----Put a blank tape into Cassette Dock----close the door-----Press RECORDER&PLAYER together same time-----Now start the recording...
- Page 10 4. The system will start the encoding mode after a few seconds. Insert your cassette into the playback slot. During encoding, the USB or SD icon will be flashing on the display. 5. To finish encoding, press the stop button. The display will show “END” and return to TAPE/AUX mode.
-
Page 11: Playback Controls
The USB Port and SD Card Slot Playback of music in MP3/WMA format via USB device or memory card The system is able to decode and playback all MP3/WMA files stored in the memory media connected to the USB port or SD/MMC card slot. 1. - Page 12 CD/USB/SD PlayBack press and hold this button to one & All repatedly REPAT Important notes The system can detect and read files in MP3 / WMA format only via the USB port or SD card slot. You can connect an MP3 player to the system via the USB socket, however, some MP3 players may not be able to play via the USB socket.
- Page 13 2. Press the record REC button during playback of the track you want to copy: “ONE” will be flashing on the display. Press the record REC button again to confirm. 3. The USB or SD icon will be flashing on the display while the system is copying the file. Once the file has been copied, the unit will stop playback automatically.
- Page 14 Deleting a single file/track 1. Insert the USB storage device or SD card, then select USB/SD mode (as described previously). 2. Press the delete DEL button during the playback of the track you want to delete: “ONE” will be flashing on the display. Press the delete DEL button again to confirm. 3.
- Page 15 To remove a memory card, press the memory card inwards and then release it. The card will be released (partially ejected) and you can remove it by hand. The auxiliary input Listening to a CD (or other auxiliary input) 1.
-
Page 16: Troubleshooting Guide
Troubleshooting Guide If you are experiencing problems with your USB Turntable with Cassette Deck and Radio, check in the section below whether there are any quick and easy checks you can do that may help you solve the problem. If you cannot solve the problem by yourself, contact our after sales support line for advice.
