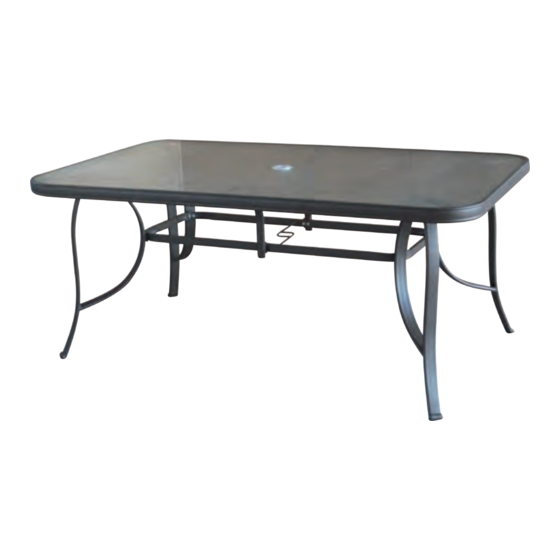

Courtyard Creations TGS64DP-WM Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE
PARTS LIST
PART
MATERIAL CODE
NO.
1
TGS64DP-CS05-1
2
TGS64DP-CS04-1
3
TGS64DP-CS04-2
4
62TGS65DPY101
5
17C17A0403001Y4
You will need the following tools:
- Phillips Screwdriver (Not Included)
- Hex. Key Wrench (See Part #10)
Attention:
Make sure that each bolt needed for all steps matches
the corresponding figure to ensure proper assembly.

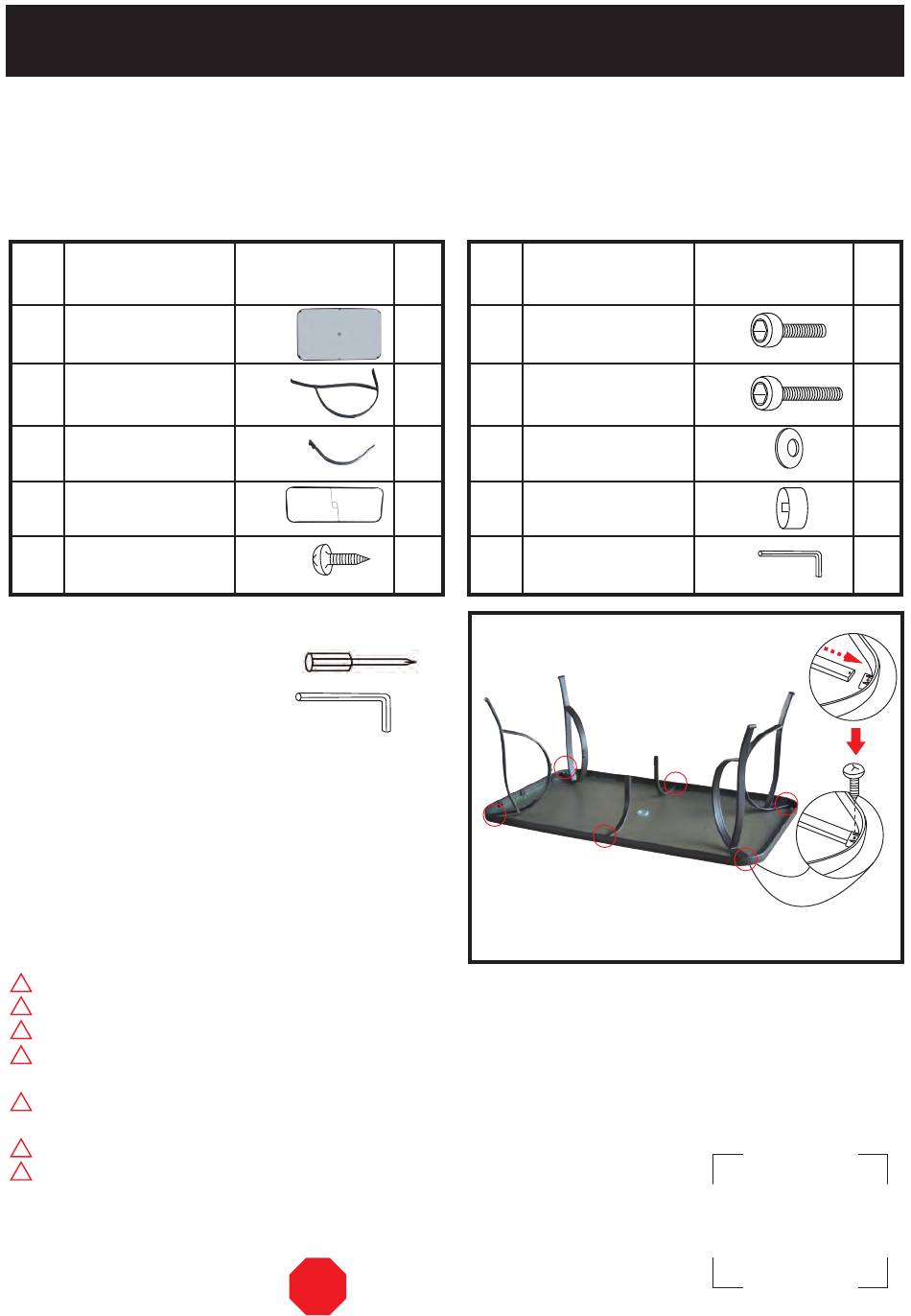

Step 1:
Place the table top (#1) onto a non-abrasive surface,
such as a carpet, with its underside facing upwards.
Insert the legs (#2) and supports (#3) into the plastic
holders on the table top (#1) rim. Fasten them together
by using screws (#5). See Figure 1.
!
Use the correct bolts as indicated. Do not tighten any of the bolts until is completely assembled.
!
Do not sit or stand on this table.
!
A weighted umbrella base must be used when using an umbrella with this table.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and
fittings required.
!
Keep children away during assembly. This item contains small parts that can be swallowed by
children. Children should always be under direct adult supervision while using this product.
!
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
INTENDED FOR RESIDENTIAL USE ONLY.
TGS64DP
PART Q'TY
TABLE TOP
LEG
SUPPORT
CENTER
CONNECTOR WITH RING
SCREW ST4.2*12
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
STOP DON'T RETURN TO STORE!
PAGE 1 OF 2
-WM
