Courtyard Creations TGS66DS Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE
PARTS LIST
PART
MATERIAL CODE
NO.
1
TGS66DS-CS01
2
TGS66DS-CS02
3
TGS66DS-CS03
4
62TGS66DSY101
Attention:
Make sure that each bolt needed for all steps matches the
corresponding figure to ensure proper assembly.
Step 1:
Place the table top (#1) onto a non-abrasive surface, such as
a carpet, with its underside facing upwards. Fasten the legs
(#2) and the supports (#3) to the underside of the table top
(#1) rim by using the bolts (#5) and washers (#7). Keep the
bolts loose. See Figure 1.
!
Use the correct bolts as indicated and do not tighten any bolts, until the unit is completely assembled.
!
Do not sit or stand on this table.
!
A weighted umbrella base must be used when using an umbrella with this table.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and fittings required.
!
Keep children away during assembly. This item contains small parts that can be swallowed by
children. Children should always be under direct adult supervision while using this product.
!
Retain these assembly instructions for future reference.
!
Quote the following FQC NO. when contacting the service center.
INTENDED FOR RESIDENTIAL USE ONLY.

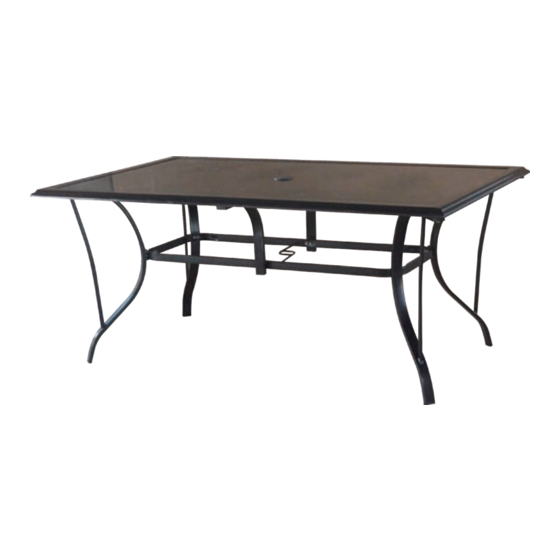

Regency 66''x40'' Glass Dining Table
PART
TABLE TOP
LEG
SUPPORT
CENTER
CONNECTOR WITH RING
SERVICE CENTER TOLL FREE NO.
TGS66DS
5
Q'TY 17C01A0709002Y4
1 6
17C01A0706002Y4
4 7
17FA05040301-Y4
2
8
18000337002
1 9
17KAA0201----Y4
FIGURE 1
2
TEL: 1-877-539-7436
FAX: 1-877-539-7439
PAGE 1 OF 2
BOLT M6*25
BOLT M6*16
WASHER d6.5*D13*1.0
BOLT CAP M6
HEX.KEY WRENCH 6MM
2
2
3
3
1
25
#5 BOLT M6*25
COURTYARD CREATIONS INC.
10
8
18
18
1
2
8
5
7
