1.10 Connecting Rear Panel I/O Devices

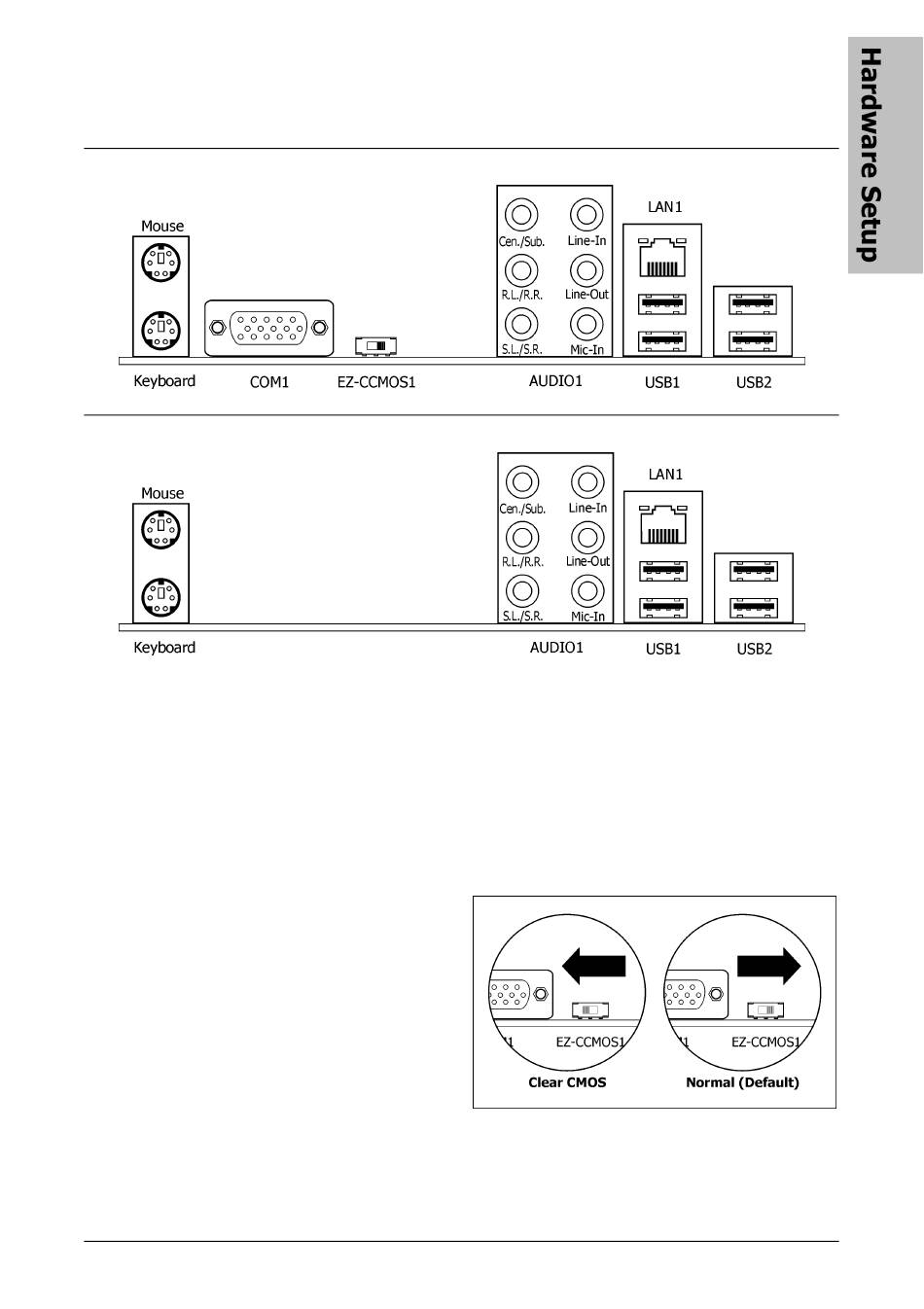

The rear I/O part of this motherboard provides the following I/O ports:
AN52S
AN52
•
Mouse: Connects to PS/2 mouse.
•
Keyboard: Connects to PS/2 keyboard.
•
COM1: Connects to external modem, mouse or other devices that support this
communication protocol.
•
EZ-CCMOS1: This switch enables clearing the CMOS memory without uncovering the
(For AN52S only)
system chassis.
To clear the CMOS memory by EZ-CCMOS1 switch:
Step 1: Power off the system.
Step 2: Turn left this switch to the
"Clear CMOS" position.
Step 3: Turn right this switch to its
default "Normal" position. The default
CMOS memory is now reloaded.
Make sure to set this switch to its
※
"Normal" position before turning on
the AC power. Otherwise, the DC
power won't be able to turn on.
Also make sure to shut down the system power before clearing CMOS memory.
※
Note that by turning left this switch to the "Clear CMOS" position under system
power-on condition will force shutting down the system, and by turning right
this switch to the "Normal" position will then force turning on the system.
AN52S/AN52
(For AN52S only)
1-19
