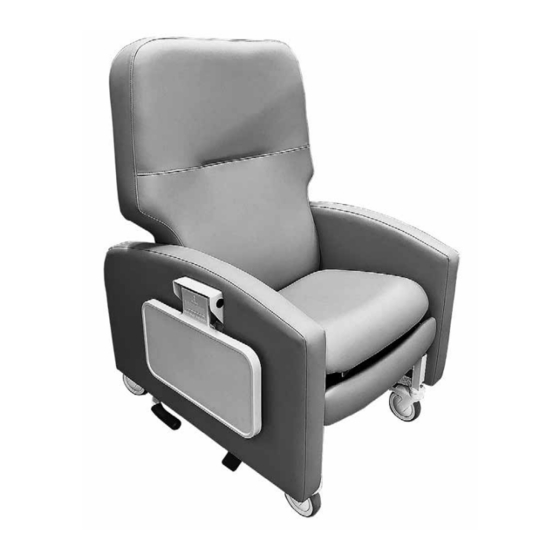

Series FR601P Clinical Care Recliner with Pivot-Arm and Upholstered Arms
Series FR601PH Clinical Care Recliner with Pivot-Arm, Upholstered Arms, and Heat and Massage
Series FR601PHO Clinical Care Recliner with Pivot-Arm, Upholstered Arms, and Heat Only
Series FR601U Clinical Care Recliner with Pivot-Arm and Urethane Arms
Series FR601UH Clinical Care Recliner with Pivot-Arm, Urethane Arms, and Heat and Massage
Series FR601UHO Clinical Care Recliner with Pivot-Arm, Urethane Arms, and Heat Only
Series FR601PL Clinical Care Recliner with Pivot-Arm, Upholstered Arms, and Extended Legrest
Series FR601PHL Clinical Care Recliner with Pivot-Arm, Upholstered Arms, Heat and Massage, and Extended Legrest
Series FR601PHOL Clinical Care Recliner with Pivot-Arm, Upholstered Arms, Heat Only, and Extended Legrest
Series FR601UL Clinical Care Recliner with Pivot-Arm, Urethane Arms, and Extended Legrest
Series FR601UHL Clinical Care Recliner with Pivot-Arm, Urethane Arms, Heat and Massage, and Extended Legrest
Series FR601UHOL Clinical Care Recliner with Pivot-Arm, Urethane Arms, Heat Only, and Extended Legrest
Assembly and Operating Instructions
SAVE THIS MANUAL FOR FUTURE USE.
LX_FR601-INS-LAB-RevD21
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lumex FR601P Series
Summary of Contents for Lumex FR601P Series

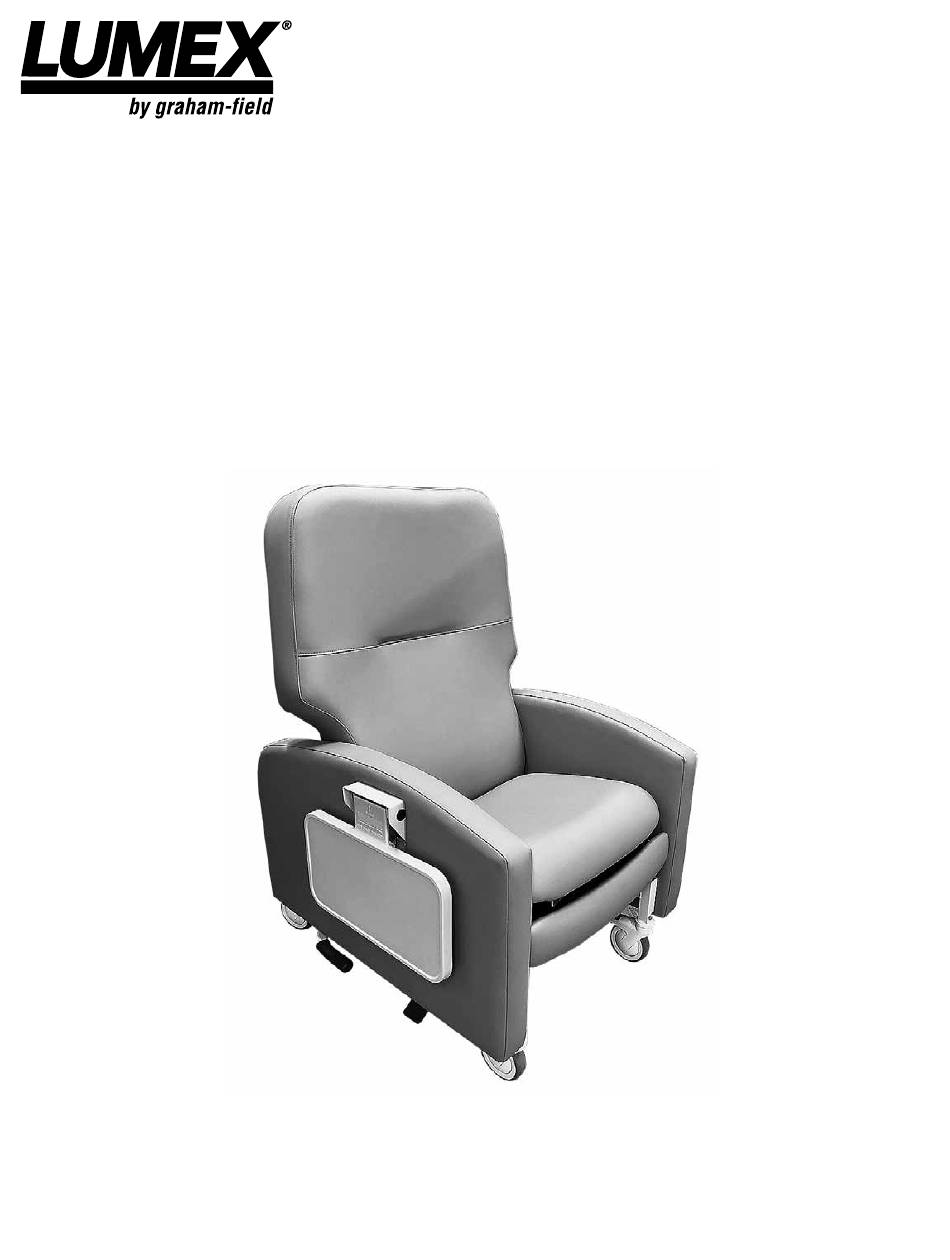

- Page 1 Series FR601P Clinical Care Recliner with Pivot-Arm and Upholstered Arms Series FR601PH Clinical Care Recliner with Pivot-Arm, Upholstered Arms, and Heat and Massage Series FR601PHO Clinical Care Recliner with Pivot-Arm, Upholstered Arms, and Heat Only Series FR601U Clinical Care Recliner with Pivot-Arm and Urethane Arms Series FR601UH Clinical Care Recliner with Pivot-Arm, Urethane Arms, and Heat and Massage Series FR601UHO Clinical Care Recliner with Pivot-Arm, Urethane Arms, and Heat Only Series FR601PL Clinical Care Recliner with Pivot-Arm, Upholstered Arms, and Extended Legrest...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ..................................3 INTENDED USE ................................3 IMPORTANT SAFETY PRECAUTIONS—PLEASE READ BEFORE USE ..............3 WARNINGS ................................3 ASSEMBLY ....................................5 UNPACKING..................................5 PRODUCT DESCRIPTION ..............................5 UPHOLSTERED BACK ASSEMBLY, ALL MODELS ....................6 OPERATION ..................................7 TENTE CASTERS................................7 ® MODELS FR601P / FR601PH / FR601PHO / FR601U / FR601UH / FR601UHO ...........7 MODELS FR601PL, FR601PHL, FR601PHOL, FR601UL, FR601UHL, FR601UHOL WITH EXTENDED LEGREST ..................................7 SIDE TABLE OPERATION ..............................8... -
Page 3: Introduction
Lumex Clinical Care Recliners are intended to make the care, treatment and recovery of patients easier and more comfortable. Lumex Clinical Care Recliners are used in a wide range of healthcare applications including Dialysis, Oncology, Drug Delivery, Same Day Surgery and Post-Operative Recovery. - Page 4 WARNING: This product has a maximum weight capacity of 400 lb (181.4 kg), EVENLY DISTRIBUTED. WARNING: Casters must be locked at all times, except during transport. WARNING: Unauthorized modification of your recliner or the use of non-Lumex replacement parts may change the structure of the recliner and could create a hazardous condition, which may result in serious injury and will void the warranty.
-
Page 5: Assembly
ASSEMBLY UNPACKING 1. Check for obvious damage to the carton or its contents. If damage is evident, notify the carrier and your Graham-Field authorized distributor. 2. Remove all packaging materials from recliner base. PRODUCT DESCRIPTION upholstered back push handle upholstered seat pivot-arms upholstered legrest / skirt... -
Page 6: Upholstered Back Assembly, All Models
UPHOLSTERED BACK ASSEMBLY, ALL MODELS upholstered back upholstered skirt threaded knobs upholstered back’s knockdown brackets steel tube mechanism’s bayonet links bracket and link to be even threaded knob through large bayonet hole in link knockdown bracket bayonet link 1. Lift the skirt on the rear of the upholstered back. To make assembly easier, hold skirt up with a small piece of tape to fully expose the knockdown brackets that are to be mated to the two bayonet lugs on the recliner mechanism. -
Page 7: Operation
® WARNING: Casters must be locked at all times EXCEPT during transport. All Lumex Clinical Care Recliners now feature the latest design, all-plastic casters from TENTE, shown at right. Specifically designed for use in healthcare environments, the new casters are easier to clean, easier to move, and tolerate a wide array of cleaners and chemicals. -
Page 8: Side Table Operation
RECLINER OPERATION The Lumex Series FR601 Recliner features three positions for patient comfort. The fourth position is a Trendelenburg (or Shock) Position that must be activated by a caregiver. The Trendelenburg Position CANNOT be activated by a patient while in the recliner. -
Page 9: Third Position (Second Recline Position)
Third Position (Second Recline Position) The third position is the Second Recline Position and is also known as the “Full Recline” position. This position is ideal for patient treatment, rest and reading. First Recline Position To Achieve Third Position / Second Recline Position: (TV Position) •... -
Page 10: Pivot-Arm Operation
PIVOT-ARM OPERATION See pictures at right. The FR601 Clinical Care Recliner features two pivot-arms. The pivot-arms make cleaning the recliner much easier and more efficient. The pivot-arms are hinged at the back of the recliner. WARNING: The pivot-arm Feature is a CAREGIVER OPERATED FEATURE. -
Page 11: Footplate Operation
FOOTPLATE OPERATION Footplate Shown in Extended Position The Series FR601 Recliner features a self-storing footplate, shown above, for patient comfort and convenience during patient transport. The footplate is easily extended when needed and can be stored safely out of the way when not in use. To operate the footplate, pull it out from underneath the recliner until fully extended —... -
Page 12: Recliners With Heat And Massage Or Heat Only Feature
Heat Only Unit offers three levels of seat and back heat. The Lumex Healthcare Seating Heat and Massage / Heat Only Unit is a low-voltage (12V) Heat and Massage / Heat Only Unit, controllable by the user and / or caregiver via a handheld pendant. -
Page 13: Heat And Massage / Heat Only Installation Instructions
Handheld Heat & Massage Power Cord Handheld Heat Only Power Cord Pendant Connectors Connector Pendant Connectors Connector Connector Connector Heat and Massage Feature — Heat Only Feature — Control Module and Transformer Unit Control Module and Transformer Unit Showing All Connections Correctly Made Showing All Connections Correctly Made 3. - Page 14 Insert Insert Seat Seat Connector Connector Here Here Heat and Massage Feature — Heat Only Feature — Install Seat Connector Install Seat Connector 4. There is only one connection to make — push the seat connector firmly into the control module until its locking tabs snap into place as shown above.
-
Page 15: Heat And Massage / Heat Only Unit Operation Instructions
Heat and Massage / Heat Only Unit Operation Instructions 1. Plug the power cord into any grounded outlet. Handheld Pendant Handheld Pendant Heat and Massage Heat Only 2. The Heat and Massage / Heat Only Unit is operated using the Handheld Pendant, shown above. HIGH HEAT PRESS 1 TIME MEDIUM HEAT... - Page 16 4. Heat and Massage MASSAGE Option: Press the MASSAGE switch to start this function. The Massage Function Settings are as follows: a) Press selector switch for Setting 1: Gentle Lower Back Massage. b) Press selector switch AGAIN for Setting 2: Firm Lower Back Massage. c) Press selector switch AGAIN for Setting 3: Gentle Upper and Lower Back Massage.
-
Page 17: Heat And Massage / Heat Only Unit Troubleshooting Guide
Heat and Massage / Heat Only Unit Troubleshooting Guide The cables and connections need to be validated. This will require the services of a maintenance person and a clear working area. 1. INSPECTION: Perform the following checks. If a working recliner of the same model is available, use it for comparison. -
Page 18: Care And Maintenance
CARE AND MAINTENANCE WARNING: Inspect all components periodically and replace as needed. EVERY THREE MONTHS • Check and clean casters. • Tighten bolts in each leg that secure caster into frame. • Check caster brakes. • Check and clean lock recline mechanism. •... -
Page 19: Cdc Recommendations
Abrasion test results exceeding ACT Performance Guidelines are not an indicator of product lifespan. Multiple factors affect fabric durability and appearance retention. This information is not a guarantee and does not relieve the user from the responsibility of the proper and safe use of the product and all cleaning agents. The use of certain agents can be harmful to the surface appearance and lifespan of vinyl. -
Page 20: Technical Specifications
• Follow proper procedures for effective uses of mops, cloths, and solutions. • Prepare cleaning solutions daily or as needed, and replace with fresh solution frequently according to facility policies and procedures. • Change the mop head at the beginning of each day and also as required by facility policy, or after cleaning up large spills of blood or other body substances. -
Page 21: Disposal And Key To Symbols
FR601UH FR601UHO FR601PL FR601PHL FR601PHOL FR601UL FR601UHL FR601UHOL KEY TO SYMBOLS The following symbols are used on Lumex Recliner product labels. MANUFACTURER GENERAL WARNING SIGN FRAGILE, HANDLE WITH CARE KEEP DRY ELECTRICAL AND ELECTRONIC CE MARK EQUIPMENT CAUTION CONSULT INSTRUCTIONS FOR USE... -
Page 22: Limited Warranty
LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. -
Page 23: Index
INDEX Assembly 5 Operation 7 Care and maintenance 18 Pivot-arm, close 10 Caster operation 7 Pivot-arm, open 10 CAUTION statement, significance 3 Pivot-arm operation 10 Product description 5 Disposal 21 Recliner operation 8 Footplate operation 11 Side table, lower 8 Side table operation 8 Heat and massage / heat only 12 Side table, raise 8... - Page 24 © 2019, GF Health Products, Inc. All Rights Reserved. Graham-Field and Lumex are trademarks of GF Health Products, Inc. Tente is a trademark of TENTE GmbH & Co., FED REP GERMANY. GF Health Products, Inc. is an ISO 13485:2016 / MDSAP Certified Company.
