Lumex 5644G Manual

Activity tray table

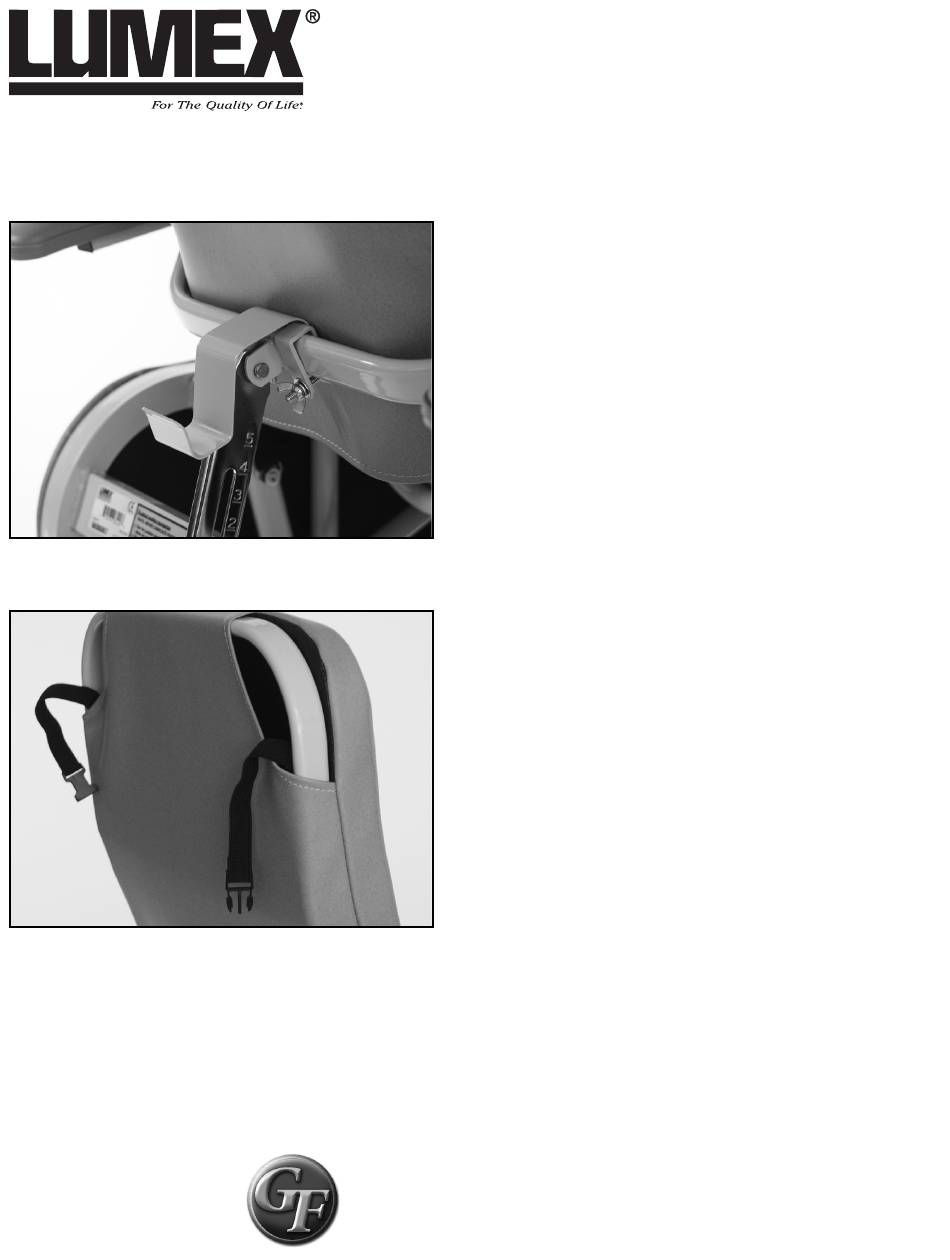

Figure 1

Figure 2

Tools Required:

Phillips Screwdriver

1. Lock rear casters.

2. Place table hanger assembly over back cross

brace. (See Figure 1)

3. Insert carriage bolts through square hole in

rear of hanger bracket. Add washers and wing

nuts. Tighten wing nuts.

1. Remove upholstery from back of chair.

2. Insert plastic rivets through grommets on ends

of strap into small holes in chair back bend.

3. Push or tap lightly with small hammer on

plunger of rivet until flush, this will lock rivet

in place. (See Figure 2)

Graham-Field Health Products

2935 Northeast Parkway, Atlanta, Georgia 30360

telephone: 800-347-5678, 770-447-1609

fax: 800-726-0601, 678-291-3232

http://www.grahamfield.com

Activity Tray Table

Items: 5644G, 5644PG

GF0500040RevA05

Table of Contents

Do you have a question about the 5644G and is the answer not in the manual?

Page 1 Activity Tray Table Items: 5644G, 5644PG Tools Required: Phillips Screwdriver Table Hanger Installation: 1. Lock rear casters. 2. Place table hanger assembly over back cross brace. (See Figure 1) 3. Insert carriage bolts through square hole in rear of hanger bracket. Add washers and wing nuts.
Page 2 Receiving Tubes Installation: 1. Standing behind the chair, tip it over on its left side. 2. Remove two front screws and washers from underneath the right arm. With the tube facing front, reinsert washer and screws through the plate, back into the armrests (See Figure 3).
