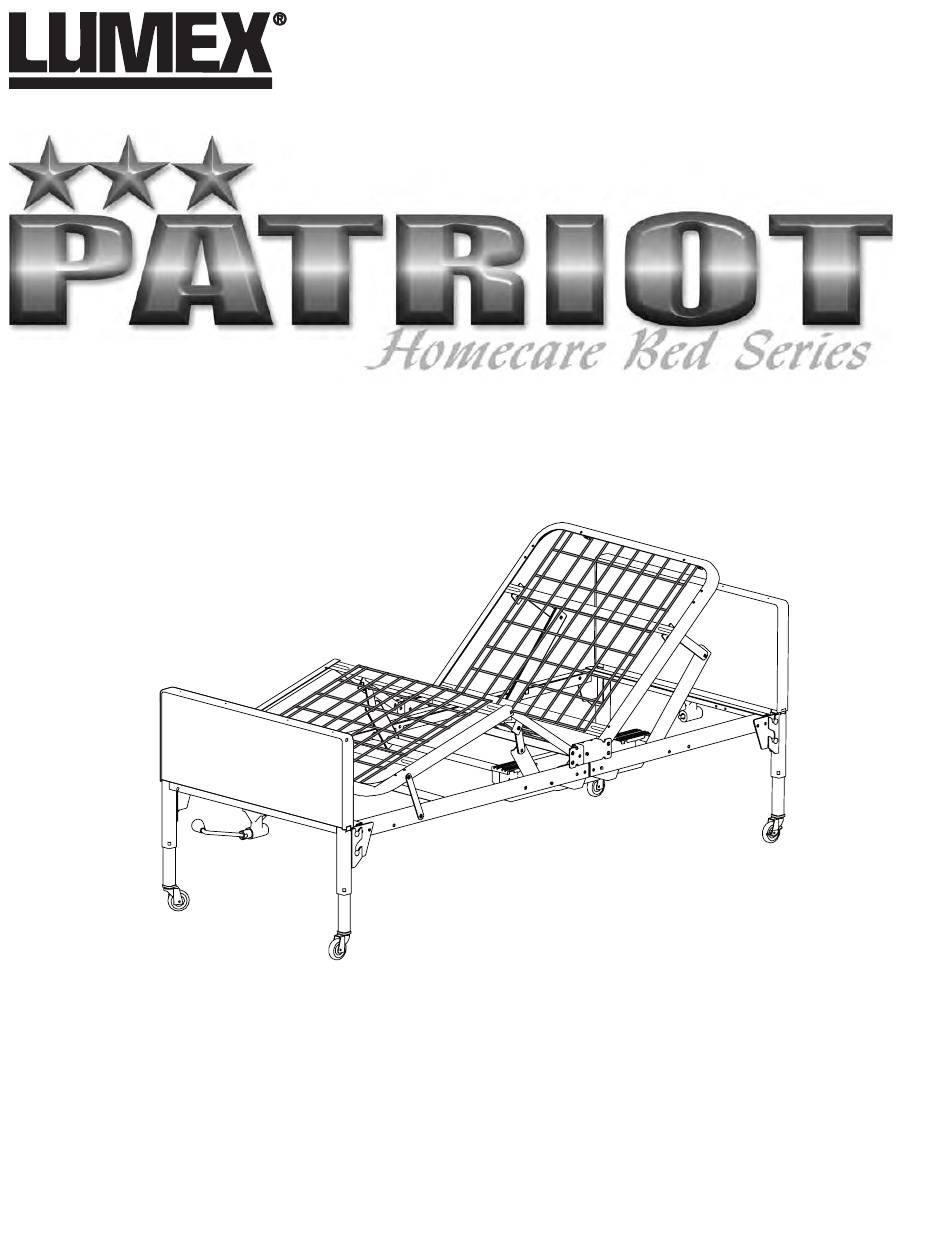

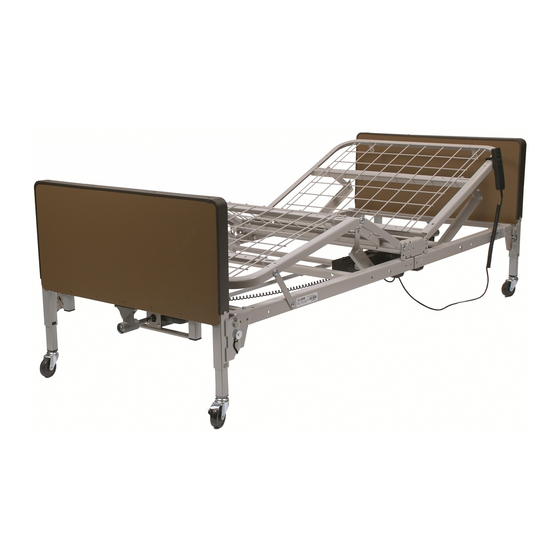

- Page 1 ® MODEL US0208 / US0208PL SEMI-ELECTRIC BED MODEL US0458 / US0458PL FULL-ELECTRIC / LOW BED USER MANUAL READ THIS MANUAL BEFORE OPERATING THE PATRIOT HOMECARE BED. ™ SAVE THIS MANUAL FOR FUTURE USE. US0208-INS-LAB-RevE13...
-
Page 2: Table Of Contents
LIMITED WARRANTY ..................................26 10 INDEX ........................................ 27 GF Health Products, Inc. is not responsible for typographical errors. Graham-Field, Lumex, and Patriot Homecare Bed Series are registered trademarks, and Patriot is a trademark, of GF Health Products, Inc. US0208-INS-LAB-RevE13 • Patriot Homecare Bed... -
Page 3: Safety
This includes when assisting the user in repositioning or transferring in or out of bed. WARNING: In order not to invalidate the warranty or create a hazardous condition resulting in serious personal injury, GF Health Products, Inc. recommends the use of only Lumex replacement parts. - Page 4 WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury caused by improper assembly or use of this product. WARNING: GF Health Products, Inc. speciically disclaims responsibility for any bodily injury or property damage which may occur during any use which does not comply with federal, state or local laws or ordinances.
-
Page 5: Introduction, Patriot Homecare Bed User Manual
2 INTRODUCTION, PATRIOT HOMECARE BED USER MANUAL This manual contains assembly and maintenance instructions for your Model US0208 / US0208PL Semi-Electric and US0458 / US0458PL Full-Electric / Low Patriot bed. Read the entire manual carefully before using your bed, and refer to it during use if you have questions. THERMAL MOTOR PROTECTION This product is powered by a quiet, eficient DC motor system. -
Page 6: Assembly Instructions
3 ASSEMBLY INSTRUCTIONS HEAD AND FOOT ASSEMBLY Head hook rivet motor cam foot head section section Foot hook rivet Assembly, head and foot sections Note: Grid deck not shown for clarity 1. Place the head and foot sections on their sides at approximately right angles to each other with motor cams up, as shown above. -
Page 7: Motor Assembly
MOTOR ASSEMBLY pressure WARNING: Assemble motor on bed as follows. While it is possible to install the slide cap motor backwards, avoid it! Incorrect installation could cause the bed to move in unexpected ways. Note that the motor ends are labeled and embossed with head and foot symbols (shown at right). -
Page 8: Install Motor Slide Caps
Install motor slide caps 7. Position the caps as shown at right so that the grooves in the slide cap are aligned with the grooves in the motor. 8. Apply straight downward pressure to each end of the cap while sliding into the closed position. 9. -
Page 9: Bed End Assembly
BED END ASSEMBLY All bed models: Assemble bed head end 1. Insert one locking and one non-locking caster into bed end. Locking casters must be installed diagonally from each other. See previous page for full-electric caster position options. 2. Standing directly in front of the bed end, position it as close to the bed as possible. 3. -
Page 10: All Models: Install Bed End Locking Hardware
All models: Install bed end locking hardware 1. After bed head end has been attached, install nylon cord Bed End Locking Hardware to act as a latch fender for each corner. washer Bed End Locking Hardware, part number hairpin clevis pin 690-1000-100, includes four lanyards, each clip with hole... - Page 11 5. From the inside, reattach the hairpin clip to the cord’s looped end as shown in d. This prevents the cord from slipping back through the frame bracket hole. 6. From the outside, insert lanyard clevis pin with washer into the small hole directly below the bed end bracket top hook so that the washer rests against the bracket, as shown in e.
-
Page 12: Full-Electric Bed Only (Us0458 / Us0458Pl): Assemble Hi/Lo Motor Shaft To Foot End Gear Box
Full-electric bed only (US0458 / US0458PL): Assemble hi/lo motor shaft to foot end gear box hi/lo motor FOOT notches in hi/lo motor shaft coupler slide over gear box shaft pin gear box hi/lo motor shaft Attach hi/lo motor shaft to foot end gear box You must irst attach the coupler end of the motor shaft to the foot-end gear box (see above). -
Page 13: Hi/Lo Rod Assembly / Bed Length
HI/LO ROD ASSEMBLY / BED LENGTH The hi/lo rod assembly consists of an inner and outer tube with a spring button lock to keep them together. 1. Assemble outer and inner tubes: Semi-electric bed only (US0208 / US0208PL): Assemble hi/lo rod Hi/lo rod assembly semi-electric bed US0208 / US0208PL... -
Page 14: All Models: Attach Hi/Lo Rod To Gearbox Or Motor Shaft Pins
All models: Attach hi/lo rod to gearbox or motor shaft pins Both ends of the hi/lo rod assembly have a slot to mount on the foot end motor shaft pins and bed end gearbox shaft pins. Follow steps 2-3 to mount the hi/lo rod assembly on the gearboxes. notch at end of hi/lo rod rests over pin at end of m otor shaft FOOT END... -
Page 15: Bed Operation
4 BED OPERATION WARNING: Ensure that bed is secure and assembled as instructed on previous pages before operating. Plug the power cord into any grounded outlet. WARNING: Do not leave the bed unattended when plugged in. Info: In the event of a power failure, use a standard 9V battery to lower the bed’s head and foot sections (the 9V battery connection is attached to the motor). -
Page 16: Crank Operation: Semi-Electric Bed Only (Us0208 / Us0208Pl)
CRANK OPERATION: SEMI-ELECTRIC BED ONLY (US0208 / US0208PL) Use the crank at the center foot of the semi- foot electric bed (shown at right) to change bed height (raise or lower entire deck). crank Crank operation TRENDELENBURG POSITION, ALL MODELS (HEAD END AT LOWER ELEVATION THAN FOOT END) 1. -
Page 17: Specifications, All Models
5 SPECIFICATIONS, ALL MODELS Deck High position height Deck height: High Position US0208 / US0208PL: US0458 / US0458PL with US0458 / US0458PL with 24.0 inches casters in low position: casters in standard position: 20.0 inches 23.5 inches Low position Deck height: Low Position US0208 / US0208PL: US0458 / US0458PL with US0458 / US0458PL with... -
Page 18: Accessories: Bed Rails
6 ACCESSORIES: BED RAILS Patriot Homecare Bed decks are equipped with patent-pending slots speciically for bed rail installation, providing a ixed place to mount GF bed rails. Two styles of Lumex bed rails are described in Section 6: 1) The Lumex Patriot Liberty bed rail system, designed speciically for Patriot Beds, and... -
Page 19: Patriot Liberty Bed Rail Design
PATRIOT LIBERTY BED RAIL DESIGN Lumex Patriot Liberty Bed Rails, designed speciically for use with Lumex Patriot Beds, were developed using the FDA Hospital Bed System Dimensional Guidance to Reduce Entrapment and tested to the Hospital Bed Safety Workgroup and FDA Dimensional Test Methods for Bed System Zones 1-4 and International Standard IEC60601-2-38 Requirements for the Safety of Electrically Operated Hospital Beds. -
Page 20: Gf6590Bh-1: Half No-Gap Head Rail
GF6590BH-1: Half No-Gap Head Rail head end slot pivot point slot head end pivot point slotted head deck foot end angle GF6590BH-1 Half No-Gap Head Rail mounting slots The Half No-Gap Head Rail, shown above, provides full head coverage of 31.5 inches and extends to eliminate the gap between the head board and the end of the rail. -
Page 21: Lumex Universal Bed Rails
LUMEX UNIVERSAL BED RAILS If you install Lumex universal bed rails, follow the installation instructions that accompany them; the following instructions are provided to describe the differences between the installation of bed rail crossbraces on Patriot grid beds and spring beds. -
Page 22: Service Parts, All Models
7 SERVICE PARTS, ALL MODELS Service parts for all bed models are shown below and on the following two pages. See pictures and tables for appropriate service parts. BED COMPONENTS HEAD FOOT Part number Description Semi-electric Full-electric US0208 US0208PL US0458 US0458PL 690-7100-901 Head section, includes hi/lo rod... -
Page 23: Bed End Components
BED END COMPONENTS HEAD FOOT Item Part number Description Semi-electric Full-electric US0208 US0208PL US0458 US0458PL 690-7001-901 Head bed end, semi-electric, walnut panels 690-7601-901 Head bed end, semi-electric, plastic panels 690-7004-901 Head bed end, full-electric, walnut panels 690-7604-901 Head bed end, full-electric, plastic panels 690-7001-902 Foot bed end, semi-electric, walnut panels 690-7601-902... -
Page 24: Bed Service Parts
BED SERVICE PARTS HEAD FOOT Item Part number Description Semi-electric, H7920SE Full-electric, H7920FE US0208 / US0208PL US0458 / US0458PL 690-2001-913 Motor and pendant hand control, semi-electric 690-2001-411 Pendant hand control, semi-electric 690-3001-943 Motor and pendant hand control, full-electric 690-2001-414 Pendant hand control, full-electric 690-7001-944 Motor and bracket, hi/lo 690-3001-945... -
Page 25: Maintenance And Safety Checks
8 MAINTENANCE AND SAFETY CHECKS Perform the following as needed or between patient placements, whichever happens sooner: Electronics and Check all controls to ensure that all functions work Foot control properly. Motors Head control Hi/Lo (if applicable) Check all cables for damaged or frayed wires. Power cord Pendant hand control cord Check to ensure that all plugs are fully inserted or attached. -
Page 26: Limited Warranty
Lumex Patriot US0208 / US0208PL Semi-Electric Homecare Bed: ..2 years Lumex Patriot US0458 / US0458PL Full-Electric / Low Bed: ... . 2 years The applicable warranty period shall commence from date of shipment to the original customer, unless there is an expiration date on the component in which case the warranty shall expire on the earlier of warranty period or the expiration date. -
Page 27: Index
GF6590BH-1 Half No-Gap Head Rail 20 Head and foot assembly instructions 6 Hi/lo rod assembly 13 Info statement, signiicance 3 Introduction 3 Lumex universal bed rails 21 Maintenance, bed frame and sleeping surface 25 Maintenance, cleaning 25 Maintenance, electronics 25 Maintenance, lubrication and mechanical 25... - Page 28 Manufactured by: GF Health Products, Inc. Proudly made in the U.S.A.
