FR597G Ortho-Biotic
with Wooden Arm Caps
FR597P Ortho-Biotic
with Fully Upholstered Arms
Assembly and Operating Instructions
IMPORTANT: READ THIS MANUAL BEFORE OPERATING YOUR LUMEX FR597
Ortho-Biotic II Recliner.
SAVE THIS MANUAL FOR FUTURE USE.
THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT
www.grahamfield.com.
* This product is not made with natural rubber latex.

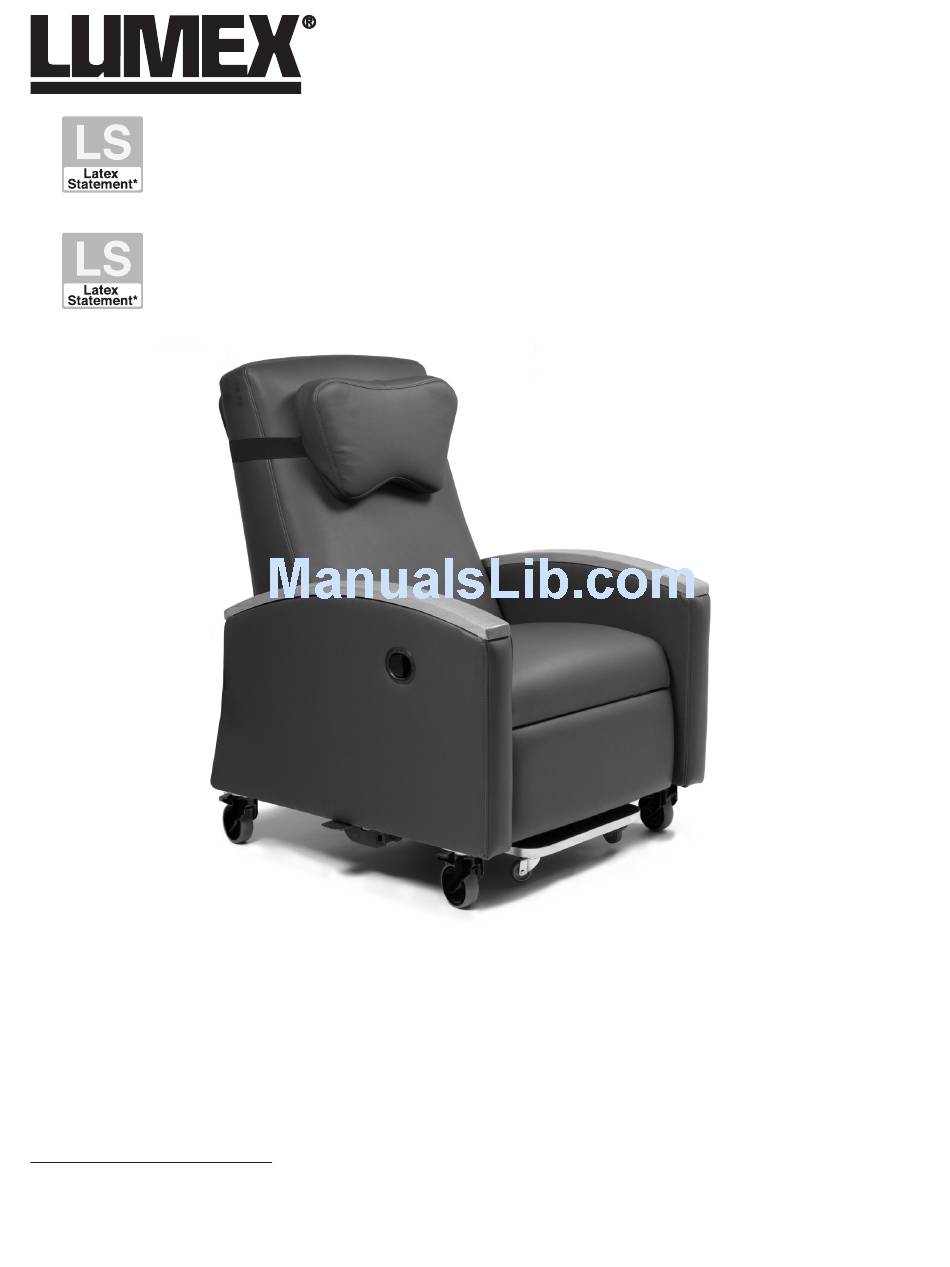

FR597G Model Shown
II Recliner
™
II Recliner
™
FR597-INS-LAB-RevA15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FR597G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lumex FR597G

Summary of Contents for Lumex FR597G

  • Page 1 Fully Upholstered Arms FR597G Model Shown Assembly and Operating Instructions IMPORTANT: READ THIS MANUAL BEFORE OPERATING YOUR LUMEX FR597 Ortho-Biotic II Recliner. SAVE THIS MANUAL FOR FUTURE USE. THE MOST CURRENT VERSION OF THIS MANUAL CAN BE FOUND ONLINE AT www.grahamfield.com.

  • Page 2: Table Of Contents

    IMPORTANT SAFETY PRECAUTIONS—READ BEFORE USE ..............3 WARNINGS ..............................3 UNPACKING AND ASSEMBLY ..........................5 PACKAGING ..............................5 UNPACKING THE RECLINER ...........................5 LUMEX FR597 ORTHO-BIOTIC II RECLINER DESCRIPTION AND FEATURES ..........6 OPERATION ................................7 TENTE® CASTERS ............................7 RECLINER OPERATION............................7 LEGREST OPERATION .............................8 EXTENDING LEGREST ..........................8 RETURNING LEGREST TO STORED POSITION ..................8...

  • Page 3: Introduction

    FR597P(COLOR) Ortho-Biotic II Recliner with Fully Upholstered Arms Read the entire manual carefully before using your recliner, and refer to it during use if you have questions. If you have further questions, call GF Health Products, Inc. / Lumex Technical Support at 770-368-4700.
  • Page 4 WARNING: This product has a maximum weight capacity of 350 lb (159 kg), EVENLY DISTRIBUTED. WARNING: Casters must be locked at all times, except during transport. WARNING: Unauthorized modification of your recliner or the use of non-Lumex replacement parts may change the structure of the recliner and could create a hazardous condition, which may result in serious injury and will void the warranty.

  • Page 5: Unpacking And Assembly

    UNPACKING AND ASSEMBLY 1. The Lumex Ortho-Biotic II Recliner is delivered in a three-piece single shipping carton strapped to a pallet. Upon delivery, ensure all cartons are present. Note any shortages on the delivery receipt. 2. Check for any obvious damage to the carton or contents. If damage is evident, immediately notify the carrier, your GF authorized distributor, and / or GF Health Products, Inc.

  • Page 6: Lumex Fr597 Ortho-Biotic Ii Recliner Description And Features

    LUMEX FR597 ORTHO-BIOTIC II RECLINER DESCRIPTION AND FEATURES Adjustable Padded Universal Headrest Push Handle Legrest-Recline Adjustment Lever Total Locking Directional Locking Caster (3) Caster (1) Pull-Out Footplate Trendelenburg Foot Pedal (RIGHT SIDE ONLY) FR597G Model Shown FR597-INS-LAB-RevA15...

  • Page 7: Operation

    RECLINER OPERATION The Lumex Ortho-Biotic II Recliner Series FR597 features a unitized recliner mechanism that allows independent adjustment of the legrest and back for patient comfort. The easy-access Trendelenburg (Shock) Position pedal on the RIGHT SIDE of the recliner allows quick activation by the caregiver.

  • Page 8: Legrest Operation

    To return the legrest to the stored position, press downward Legrest-Recline Adjustment Lever on the legrest until the legrest locks into place and is flush FR597G Model Shown Upright with the front of the recliner. with Legrest Extended RECLINE OPERATION Reclining by Patient Patient: Extend the Legrest as explained above.

  • Page 9: Footplate Operation

    UNIVERSAL HEADREST OPERATION The Lumex Universal Headrest is standard Large Neck Contour with the Lumex Ortho-Biotic II Recliner. The Universal Headrest has been designed to Adjustable Universal Elastic...

  • Page 10: Optional Accessories

    OPTIONAL ACCESSORIES The Lumex Ortho-Biotic II Recliner is available with several Factory Installed Optional Accessories. Optional Side Table An Optional Side Table is available for storage of prep materials or patient items. Order Item FR597GTBLMNT, Optional Side Table. Optional Side Table Operation...

  • Page 11: Care And Maintenance

    CARE AND MAINTENANCE WARNING: Inspect all components every three months and replace as needed. EVERY THREE MONTHS • Check and clean casters. • Tighten bolts in each caster plate to ensure casters are secured tightly to frame. • Check caster brakes. • Check and clean legrest recline lever. • Check recliner mechanism for operation in all positions, including Trendelenburg Position, with assistant seated in recliner. • Wooden armrest caps are finished in a water-based urethane. To clean, wipe with a mild surface cleaner. Armrest caps should be disinfected with a bleach-based wipe. • If optional side table and / or optional IV pole are installed, check all mounting screws for tightness.

  • Page 12: Cdc (Centers For Disease Control) Recommendations

    Info: For cleaning that requires step 4 or 5, use a soft cotton cloth saturated with the cleaning material and rub the stain in circles 10 times. Pat dry with another soft cotton cloth and check the results. The information published in this care guide refers to the performance of PERMABLOK3 products in specific tests conducted under laboratory conditions.

  • Page 13: Ce Certification

    ° Uncertainty exists regarding the presence of multi drug resistant organisms on such surfaces. • Detergent and water are adequate for cleaning surfaces in nonpatient-care areas (e.g., administrative offices). Clean and disinfect high-touch surfaces on a more frequent schedule than minimal-touch housekeeping surfaces. Clean walls, blinds, and window curtains in patient-care areas when they are visibly dusty or soiled. • Do not perform disinfectant fogging in patient-care areas.

  • Page 14: Test Parameters

    For complete technical specifications, call the GF Health Products, Inc. Technical Support Group at 770-368-4700. ACCESSORIES For your convenience, GF Health Products, Inc. offers the following accessories that may be purchased from your Lumex Distributor. Item Description FR597GTBLMNT Optional Side Table...

  • Page 15: Limited Warranty

    LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the original purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance.
