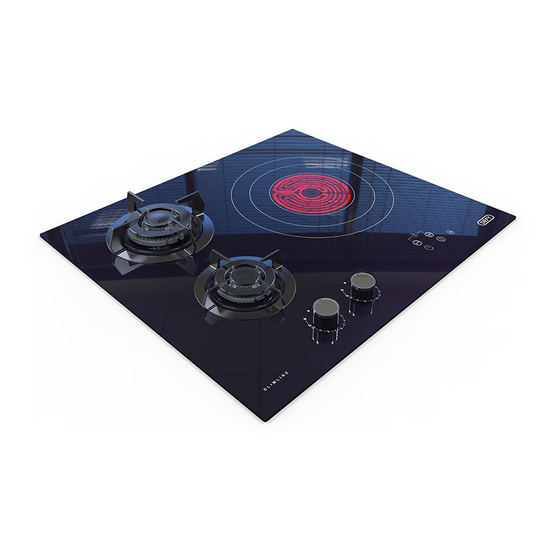

- Page 1 DHG605 SLIMLINE GAS ELECTRIC HOB Page 1 Cooking Instruction manual Part number: 071006D...
- Page 2 Dear Customer, Your new Defy appliance was manufactured in a state of the art facility and has passed the strictest quality control procedures. Important: Read these instructions for use carefully so as to familiarize yourself with the appliance before connecting it to its gas container. Keep these instructions for future reference.
-
Page 3: Table Of Contents
Important information for the user Electrical connection 8 Branches Gas connection Leakage control 9 Warranty Fitting the hob Final check Gas conversion Package information Future transportation Disposing of the old product Please register your product at PERMIT NUMBER www.defy.co.za 1037-49/1-RSA-12-A Page 3... -
Page 4: General Information
1 General information Overview Control panel Pan support Vitroceramic glass Triple zone controls Semi rapid burner front left Wok burner back left The manufacturer strives for continuous improvement. For this reason, technical specifications, text and illustrations in this manual are subject to change without notice. -
Page 5: Technical Specifications
Technical specifications Voltage / frequency 220-240 V ~ 50 Hz Cable type / section H05RR-FG 3 x 0,75 mm Cable length max. 2 m Gas type Liquid Petroleum Gas (LPG) / pressure G30/2.8-3.0 kPa Total gas consumption 5.3 kW Converting the gas type Natural Gas (NG) / pressure G20/2.0 kPa External dimensions (height / width / depth) 99 mm/580 mm/510 mm... -
Page 6: Important Safety Instructions
2 Important safety instructions This section contains safety instructions that Do not use the appliance for heating • will help you avoid risk of injury and damage. closed tins and glass jars. The pressure All warranties will become void if you do not that would build up in the tin/jar may follow these instructions. -
Page 7: Safety For Children
Safety for children Risk of explosion and DANGER. poisoning! Electrical and/or gas appliances are • Put out all naked flames and do dangerous to children. Keep children away not smoke, strike matches or do from the appliance when it is operating anything that could cause ignition. -
Page 8: If You Smell Gas
If odour persists contact your nearest • dish cloths etc. by hanging them on the oven Defy Service Centre for assistance. door handles. This product should also not If you still smell gas leave the property. •... -
Page 9: Installation
3 Installation The manufacturer accepts no liability for installation. Any action that the manufacturer has to take as a result of an erroneous installation will not be covered by the warranty. Installation, including gas and electrical connections, must be carried out by qualified personnel. -
Page 10: Aperture Size
Aperture size Important information for the installer Room ventilation This appliance may only be installed by a All rooms require a window that can be registered LP Gas installer registered with opened, or equivalent, and some rooms will the LPGSASA. (Liquefied Petroleum Gas require a permanent vent in addition. -
Page 11: Important Information For The User
Note.This appliance is supplied ex- Permanent installation factory with jets and air settings for use with LPG only. Important information for the user Safety compliance with local This appliance may only be installed by a requirements. registered LP Gas installer. All registered installers are issued with a card carrying Installer’s details are to be filled in on their registration number. -
Page 12: Electrical Connection
Gas connection Electrical connection Connect the appliance to a grounded outlet/ DANGER Risk of explosion or line protected by a fuse of suitable capacity poisoning by unprofessional as stated in the "Technical specifications" installation. The appliance may table. Have the grounding installation made be connected to the gas by a qualified electrician while using the distribution system only by a... -
Page 13: Leakage Control
Fitting the hob The hob is supplied with securing clips. • These fit into dedicated slots around the • hob base. (see picture A). Insert the clips. (as shown in picture B). • Lift the clips up until they click into place. •... -
Page 14: Final Check
Unless there is an abnormal Final check 1. Open gas supply. condition, do not attempt to remove the gas burner taps. You must call 2. Check gas installations for secure fitting an authorised service agent if it is and tightness. 3. -
Page 15: Package Information
4 Preparation IMPORTANT: If the gas type of the appliance is changed, then the sticker that is Tips for energy saving currently on the underside of the The following information will help you to use appliance that reads “Factory your appliance in an ecological way, and to adjusted for LPG”... -
Page 16: How To Use The Hob
5 How to use the hob Gas cooking General information about cooking The size of the cooking vessel and the • DANGER flame must be suited to each other. Adjust Risk of fire by overheated oil! the gas flames so that they do not extend When you heat oil, do not leave it past the bottom of the cooking vessel and unattended. -
Page 17: Fitting The Burner Caps
Since meals are cooked using a strong Push the knob inwards and turn it counter • flame and in a very short time, and as such clockwise to ignite. fry-pans conduct heat rapidly and evenly, the After the gas ignites, keep the knob •... -
Page 18: How To Use The Electric Plates
How to use Electric plate 4. How to Activate the Child Lock 1. Switching the cooktop on and off If the “+” and “-“ buttons are held down at the To switch the cooktop on, hold down the same time for 1.2 seconds then the hob will power button for one second. -
Page 19: Maintenance And Care
Cleaning of the valves must only be • so that the burners are centered. carried out by a qualified Defy technician. i.e. Burner not functioning correctly. Glass ceramic surfaces The condition of the gas hose and valve •... -
Page 20: Gas Jet Cleaning Procedure
This may be done using a Gas Jet Cleaning Kit which • may be purchased from your nearest Defy Service Centre. The kit comprises of a sliding T-bar (A) a socket (B) •... -
Page 21: Troubleshooting
7 Troubleshooting Problem solving guide—before calling for technical support There is no gas: Main gas valve is closed. Open gas valve. Ensure the gas pipe has been properly fitted. Gas pipe is bent. There is no ignition spark: No current. Check fuses in the fuse box. -
Page 22: Error Codes
Error codes Heater display Fault Solution Touch control software error. If error has occurred disconnect and reconnect the hob to the power supply. If the error occurs suddenly in a normal operation or if the error persists, contact the customer care line. Touch control zone is too hot and Wait until temperature goes down. -
Page 23: Branches
P.O. Box 33681 50 Monument Road Lusaka, 10101, Zambia Oranjesig Tel: +260 0211 242332/3 Bloemfontein Fax: +260 0211 242933 Bloemfontein.Service@defy.co.za sgiservicecentre@microlink.zm CAPE TOWN NAMIBIA: ATLANTIC DISTRIBUTORS (PTY) 5A Marconi Rd. Montague Gardens, 7441 CapeTown.Service@defy.co.za 10 Tienie Louw Street, Northern Industrial Area P.O. -
Page 24: Warranty
9 Warranty This certificate is issued by DEFY APPLIANCES (PTY) LTD manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.
