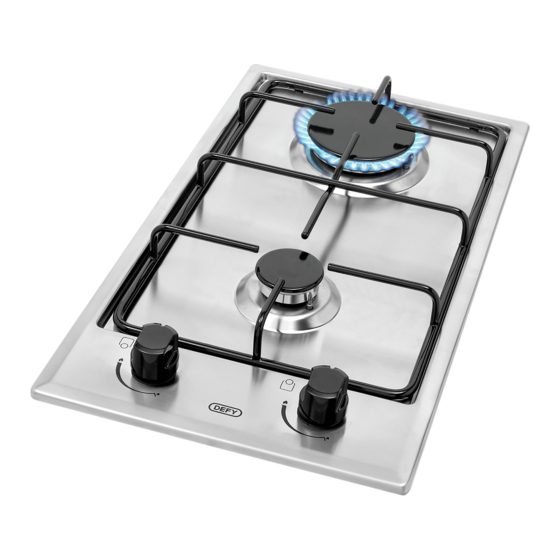

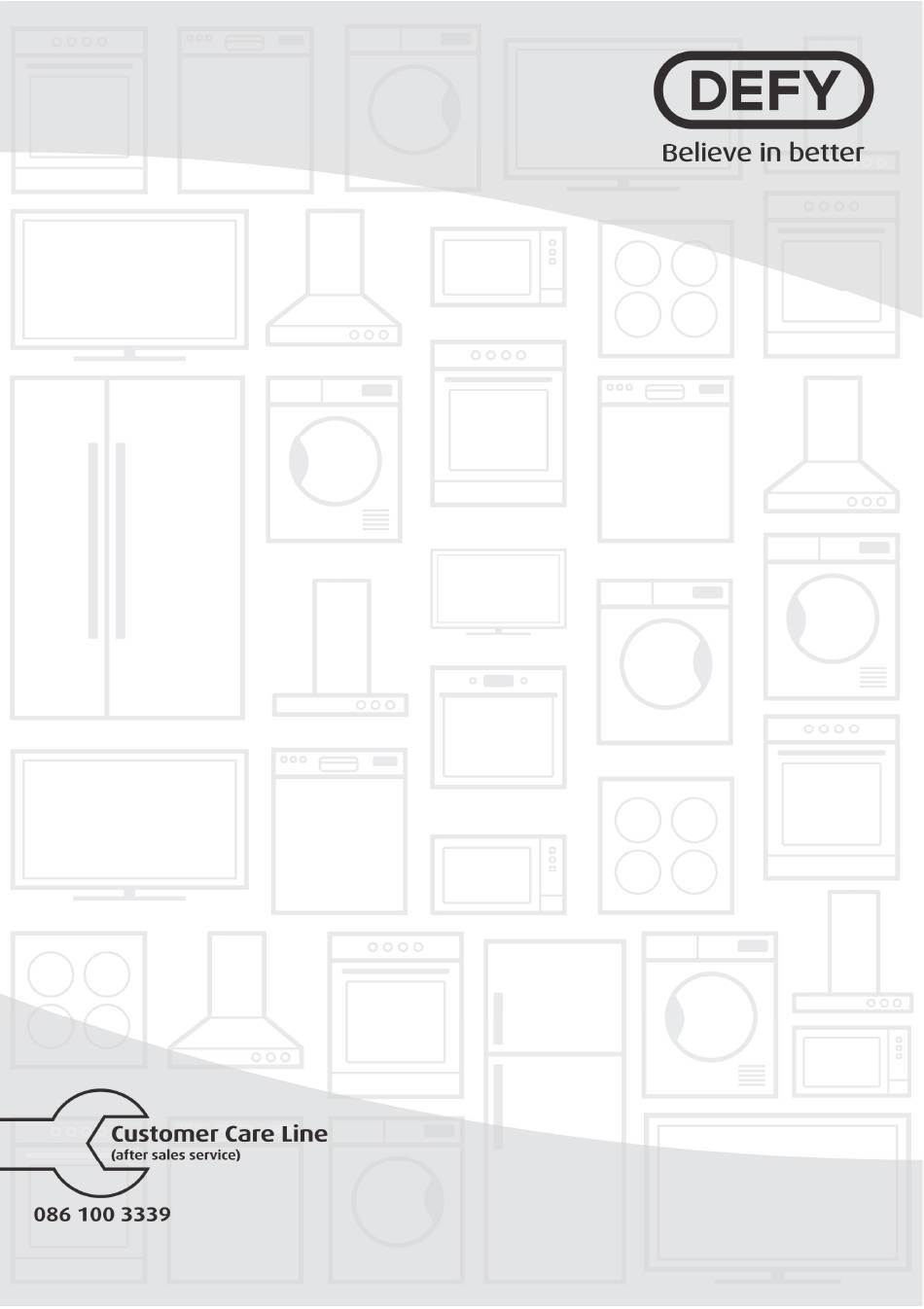

- Page 1 DHG134 2 BURNER GAS HOB Page 1 Cooking Instruction manual Part number: 068993...
- Page 2 Dear Customer, Your new Defy appliance was manufactured in a state of the art facility and has passed the strictest quality control procedures. Please read this manual carefully before installing and using your hob for the first time and then store it within easy reach for future reference. Safety instructions must be strictly followed.
-
Page 3: Table Of Contents
Table of contents 1 General information Overview Technical specifications Package contents Injector table 2 Important safety instructions General safety Safety for children Safety when working with gas If you smell gas Intended use 3 Installation Before installation Room ventilation Important information for the installer Important information for the user Electrical connection Gas connection... -
Page 4: General Information
1 General information Overview Base cover Pan support Rapid burner Spark plug Burner plate Control panel Auxiliary burner Auxiliary burner Front Rapid burner Rear The manufacturer strives for continuous improvement. For this reason, technical specifications, text and illustrations in this manual are subject to change without notice. -
Page 5: Technical Specifications
Technical specifications Voltage / frequency 220-240 V ~ 50 Hz Cable type / section H05RR-FG 3 x 0,75 mm Cable length max. 2 m Category of gas product Gas type / pressure LPG 30 / 2.8-3.0 kPa Total gas consumption 3.9 kW §... -
Page 6: Important Safety Instructions
2 Important safety instructions This section contains safety instructions that Do not use the appliance for heating will help you avoid risk of injury and damage. closed tins and glass jars. The pressure All warranties will become void if you do not that would build up in the tin/jar may follow these instructions. -
Page 7: Safety For Children
Safety for children Risk of explosion and DANGER. poisoning! Electrical and/or gas appliances are Put out all naked flames and do dangerous to children. Keep children away not smoke, strike matches or do from the appliance when it is operating anything that could cause ignition. -
Page 8: If You Smell Gas
If odour persists contact your nearest dish cloths etc. This product should also not Defy Service Centre for assistance. be used for room heating purposes. If you still smell gas leave the property. -
Page 9: Installation
3 Installation Installation is the buyer’s responsibility. The Before installation manufacturer accepts no liability for this This appliance is designed for installation in service. Any action that the manufacturer a domestic worktop. A safety distance must has to take as a result of an erroneous be left between the appliance and the installation will not be covered by the kitchen walls and furniture. -
Page 10: Room Ventilation
Important information for the installer Room ventilation All rooms require a window that can be This appliance may only be installed by a opened, or equivalent, and some rooms will registered LPG Gas installer registered require a permanent vent in addition. with the LPGSASA. -
Page 11: Important Information For The User
Note.This appliance is supplied ex- Permanent installation factory with jets and air settings for use with LPG gas only. Important information for the user Safety compliance with local This appliance may only be installed by a requirements. registered LP Gas installer. All registered installers are issued with a card carrying Installer’s details are to be filled in on their registration number. -
Page 12: Electrical Connection
Gas connection Electrical connection Connect the appliance to a grounded outlet/ DANGER Risk of explosion or line protected by a fuse of suitable capacity poisoning by unprofessional as stated in the "Technical specifications" installation. table. Have the grounding installation made The appliance may be connected by a qualified electrician while using the to the gas distribution system only... -
Page 13: Leakage Control
DANGER Risk of explosion Caution: Never use a naked and suffocation! flame to check for gas leaks LPG bottles must not be stored in the house. Installing the appliance 1. Prepare the counter according to the installation dimensions in the manual. 2. -
Page 14: Final Check
Unless there is an abnormal Final check condition, do not attempt to 1. Open gas supply. remove the gas burner taps. You 2. Check gas installations for secure fitting and tightness. must call an authorised service agent if it is necessary to change 3. -
Page 15: Package Information
IMPORTANT: Package information If the gas type of the appliance is Packaging materials dangerous changed, then the sticker that is children. Keep packaging materials in a safe currently on the underside of the place out of reach of children. appliance that reads “Factory adjusted for LPG gas”... -
Page 16: Preparation
4 Preparation Initial use Tips for energy saving The following information will help you to use First cleaning of the appliance your appliance in an ecological way, and to save energy: The surface may get damaged by some detergents or cleaning Defrost frozen dishes before cooking materials. -
Page 17: How To Use The Hob
5 How to use the hob Gas cooking General information about cooking The size of the cooking vessel and the DANGER flame must be suited to each other. Adjust Risk of fire by overheated oil! the gas flames so that they do not extend When you heat oil, do not leave it past the bottom of the cooking vessel and unattended. - Page 18 Push the knob inwards and turn it counter Wrong centralizing of the burner clockwise to ignite. caps may result in a flash back After the gas ignites, keep the knob and cause burners to melt and pressed for 3-5 seconds more to engage deform.
-
Page 19: Maintenance And Care
Every twelve months the hob should be inox surfaces and the handle. Use a soft serviced by a Defy Service agent to cloth with a liquid detergent (not abrasive) ensure continued efficient and safe to wipe those parts clean, paying attention operation. -
Page 20: Gas Jet Cleaning Procedure
This may be done using a Gas Jet Cleaning Kit which may be purchased from your nearest Defy Service Centre. The kit comprises of a sliding T-bar (A) a socket (B) and a ‘Classic pin’ (C). -
Page 21: Troubleshooting
7 Troubleshooting Problem solving guide—before calling for technical support There is no gas: Main gas valve is closed. Open gas valve. Gas pipe is bent. Ensure the gas pipe has been properly fitted. There is no ignition spark: No current. Check fuses in the fuse box. -
Page 22: Branches
P.O. Box 33681 50 Monument Road Lusaka, 10101, Zambia Oranjesig Tel: +260 0211 242332/3 Bloemfontein Fax: +260 0211 242933 Bloemfontein.Service@defy.co.za sgiservicecentre@microlink.zm CAPE TOWN NAMIBIA: ATLANTIC DISTRIBUTORS (PTY) 5A Marconi Rd. Montague Gardens, 7441 CapeTown.Service@defy.co.za 10 Tienie Louw Street, Northern Industrial Area P.O. -
Page 23: Warranty
9 Warranty This certificate is issued by DEFY APPLIANCES (PTY) LTD manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance. -
Page 24: Installers Details
Installer’s details to be recorded below INSTALLER’S NAME AND COMPANY…………………………………………………….. …………………………………………………………………………………………………... INSTALLER’S REGISTRATION NUMBER………………………………………………… …………………………………………………………………………………………………... HAVE YOU RECEIVED A WRITTEN COMPLETION CERTIFICATE?......………………………………………………………………………………………………….. HAS THE INSTALLER EXPLAINED THE OPERATIONAL DETAILS OF YOUR STOVE TO YOU?......................... Please register your product at www.defy.co.za Page 24...
