DHG131
PERMIT NUMBER
1037-49/1-RSA-12-A

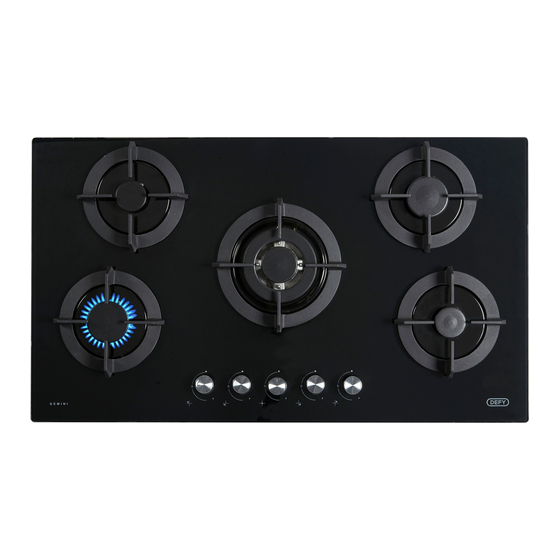

5 BURNER GAS HOB ON GLASS
Users Manual
Record in the space below the listed information for future reference. The serial number is
on the serial label located on the underside of the hob.
SERIAL NUMBER...............................................................................................
DATE OF PURCHASE..........................................................................................
PURCHASED FROM............................................................................................
.........................................................................................................................
The manufacturer strives for continuous improvement. For this reason, the text and
illustrations in this manual are subject to change without notice.
Page 1
069470
