- Page 1 DHG604 60 CM GAS HOB Page 1 Cooking Instruction manual Part number: 071186...
-
Page 2: Table Of Contents
Please read this user manual first! Dear Customer, Thank you for purchasing this Defy product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. -
Page 3: General Information

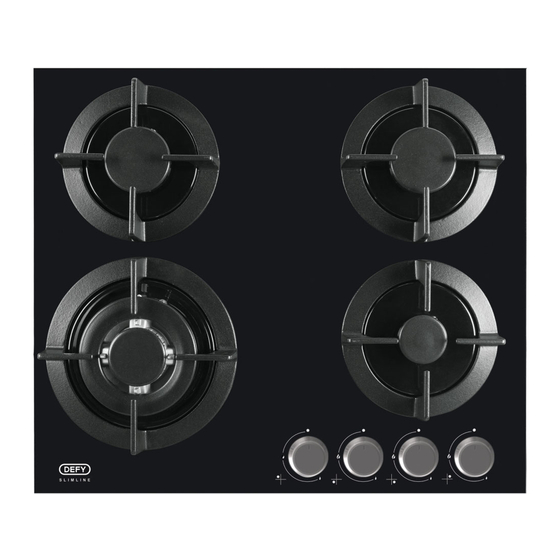

1 General information Overview Control panel Auxilliary burner Normal burner Tempered glass Pan support Normal burner Normal burner Normal burner Rear left Normal burner Front right Auxiliary burner Front left Normal burner Rear right Important: Read these instructions for use carefully so as to familiarize yourself with the appliance before connecting it to its gas container. -
Page 4: Technical Specifications
Technical specifications Voltage / frequency 220-240 V ~ 50 Hz Cable type / section H05RR-FG 3 x 0,75 mm Cable length max. 2 m Gas type Liquid Petroleum Gas (LPG) / pressure G30/2.8-3.0 kPa Total gas consumption 8.3 kW Converting the gas type Natural Gas (NG) / pressure G20/2.0 kPa External dimensions (height / width / depth) 99 mm/580 mm/510 mm... -
Page 5: Important Safety Instructions
2 Important safety instructions This section contains safety If the supply cord is damaged, it instructions that will help you must be replaced by the avoid risk of injury and damage. manufacturer, its service agent All warranties will become void if or similar qualified persons in you do not follow these order to avoid a hazard. - Page 6 Do not use the appliance for Use a deep pan, large enough heating closed tins and glass to cover the appropriate jars. The pressure that would burner. build up in the tin/jar may cause Always dry food thoroughly it to burst. before placing it in hot oil or fat.
-
Page 7: Safety For Children
Safety for children Prior to installation, ensure that Electrical and/or gas appliances the local distribution conditions are dangerous to children. Keep (nature of the gas and gas children away from the pressure) and the adjustment of appliance when it is operating the appliance are compatible. -
Page 8: If You Smell Gas
DANGER. Risk of Request information about gas explosion and emergency telephone numbers poisoning! and safety measures from your Put out all naked flames local gas provider in case of a and do not smoke, strike gas smell. matches or do anything that could cause ignition. -
Page 9: Intended Use
Check for leaks. Check all affected burner, and consult the tubes and connections for Defy help line for assistance. tightness. Ventilation If odour persists contact the Room ventilation is vital for the Defy help line for assistance. - Page 10 In case of any damage, switch This appliance should not be off the appliance and used for warming plates under disconnect it from the mains. To the grill, drying towels, dish do this, turn off the fuse at cloths etc. by hanging them on home.
-
Page 11: Installation
3 Installation Installation is the buyer’s responsibility. The This appliance requires an operating pressure of manufacturer accepts no liability for this service. Any 2.8-3.0 kPa. A suitable LPG regulator that action that the manufacturer has to take as a result of complies with the requirements of SANS 1237 an erroneous installation will not be covered by the must be used. -
Page 12: Room Ventilation
Important information for the installer Room ventilation All rooms require a window that can be opened, or This appliance may only be installed by a equivalent, and some rooms will require a permanent registered LPG Gas installer registered with the vent in addition. -
Page 13: Important Information For The User
Note.This appliance is supplied ex-factory with jets and air settings for use with LPG gas only. Safety compliance with local requirements. Installer’s details are to be filled in on page 23 of this book Temporary installation Flexible hose connection from the gas appliance to the cylinder can be made . -
Page 14: Electrical Connection
Gas connection Electrical connection Connect the appliance to a grounded outlet/line protected by a fuse of suitable capacity as stated in DANGER Risk of explosion or the "Technical specifications" table. Have the poisoning by unprofessional installation. grounding installation made by a qualified electrician The appliance may be connected to the while using the product with or without a transformer. -
Page 15: Leakage Control
DANGER Risk of explosion and suffo- cation! LPG bottles must not be stored in the house. Make sure the putty is filled on the base cover contours. 5. Turning the hob again, align and place it on the counter. 6. Secure your hob to the counter by using the clamp and the screws supplied. -
Page 16: Final Check
Unless there is an abnormal condition, do Final check not attempt to remove the gas burner 1. Open gas supply. 2. Check gas installations for secure fitting and taps. You must call an authorised service agent if it is necessary to change the taps. tightness. -
Page 17: Package Information
Disposing of the old product IMPORTANT: If the gas type of the appliance is Dispose of the old appliance in an environmentally changed, then the sticker that is friendly manner. currently on the underside of the appliance that reads “Factory adjusted Refer to your local dealer or solid waste collection for LPG gas”... -
Page 18: How To Use The Hob
5 How to use the hob General information about cooking Using the hobs DANGER Risk of fire by overheated oil! When you heat oil, do not leave it unattended. Never try to extinguish a fire with water! When oil has caught fire, immediately cover the pot or pan with a lid. - Page 19 Gas shut off safety system (in models with Fitting the burner caps thermic component) Carefully align the hole in the burner body with the As a counter measure flame failure sensor. against blow out due to Gently lower the burner body into position. Centralise and level the burner cap onto the fluid overflows at burners burner body.
-
Page 20: Maintenance And Care
Cleaning of the valves must only be carried out by are centered. a qualified Defy technician. i.e. Burner not functioning correctly. The condition of the gas hose and valve must be Glass ceramic surfaces... -
Page 21: Gas Jet Cleaning Procedure
This may be done using a Gas Jet Cleaning Kit which may be purchased from your nearest Defy Service Centre. The kit comprises of a sliding T-bar (A) a socket (B) and a ‘Classic pin’ (C). -
Page 22: Troubleshooting
7 Troubleshooting Problem solving guide—before calling for technical support There is no gas: Main gas valve is closed. Open gas valve. Gas pipe is bent. Ensure the gas pipe has been properly fitted. There is no ignition spark: No current. Check fuses in the fuse box. -
Page 23: Branches
P.O. Box 33681 50 Monument Road Lusaka, 10101, Zambia Oranjesig Tel: +260 0211 242332/3 Bloemfontein Fax: +260 0211 242933 Bloemfontein.Service@defy.co.za sgiservicecentre@microlink.zm CAPE TOWN NAMIBIA: ATLANTIC DISTRIBUTORS (PTY) 5A Marconi Rd. Montague Gardens, 7441 CapeTown.Service@defy.co.za 10 Tienie Louw Street, Northern Industrial Area P.O. -
Page 24: Warranty
9 Warranty This certificate is issued by DEFY APPLIANCES (PTY) LTD manufacturers of Defy and Ocean products, hereinafter the Company, to the original purchaser only, of the appliance described on the certificate and shall constitute the only warranty given in respect of this appliance.
