Owner's Manual &
Safety Instructions
22d
Model
HE32

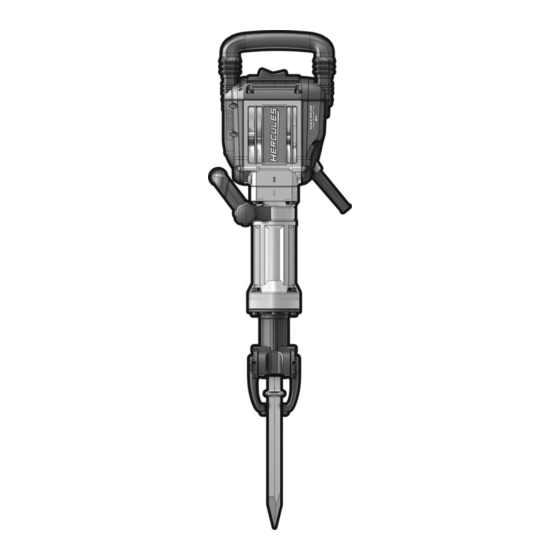

1-1/8" Hex Breaker Hammer
WARNING: To prevent serious injury, User must read and
understand Owner's Manual. SAVE THIS MANUAL.
When unpacking, make sure that the product is intact and
undamaged. If any parts are missing or broken, please call
1-888-866-5797 as soon as possible. Reference 57150

Advertisement

Table of Contents
loading

Related Manuals for Hercules HE32

Summary of Contents for Hercules HE32

  • Page 1 Owner’s Manual & Safety Instructions Model HE32 1-1/8″ Hex Breaker Hammer WARNING: To prevent serious injury, User must read and understand Owner’s Manual. SAVE THIS MANUAL. When unpacking, make sure that the product is intact and undamaged. If any parts are missing or broken, please call...

  • Page 2: Important Safety Information

    IMPORTANT SA FETY INFORMATION GENERAL POWER TOOL SAFETY WARNINGS 2. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard Read all safety warnings and all instructions. hat, or hearing protection used for appropriate Failure to follow the warnings and instructions may result conditions will reduce personal injuries.

  • Page 3: Vibration Safety

    5. Maintain power tools. Check for misalignment 15. People with pacemakers should consult their or binding of moving parts, breakage of parts physician(s) before use. Electromagnetic fields in and any other condition that may affect the close proximity to heart pacemaker could cause power tool’s operation.

  • Page 4: Grounding Instructions

    Extension Cords GROUNDING INSTRUCTIONS 1. Grounded tools require a three wire extension cord. Double Insulated tools can use either a two or three wire extension cord. TO PREVENT ELECTRIC SHOCK AND 2. As the distance from the supply outlet increases, DEATH FROM INCORRECT you must use a heavier gauge extension cord.

  • Page 5: Specifications

    Warning Symbols and Definitions Specifications This is the safety alert symbol. It is used to Electrical Rating 120VAC / 60Hz / 15A alert you to potential personal injury hazards. 1 Bull Nose Bit Bits Obey all safety messages that follow this symbol to 1 Narrow Tile Bit avoid possible injury or death.

  • Page 6: Operation

    OPERATION Install Collared Bit 1. Pull the Lock Lever open about 70-80° Read the ENTIRE IMPORTANT SAFETY to the second engaging position. INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product.

  • Page 7: General Operation

    General Operation MAINTENANCE AND SERVICING Procedures not specifically explained in this manual must be performed TO PREVENT SERIOUS INJURY: only by a qualified technician. Wear ANSI-approved safety goggles, ear protection, steel-toe boots, and dust mask during use. Keep feet clear of Breaker Hammer. Keep children and animals well TO PREVENT SERIOUS INJURY FROM clear of the work area.

  • Page 8: Troubleshooting

    Troubleshooting Problem Possible Causes Likely Solutions Tool will 1. Cord not connected. 1. Check that cord is plugged in. not start. 2. No power at outlet. 2. Check power at outlet. If outlet is unpowered, turn off tool and check circuit breaker. If breaker is tripped, make sure circuit is right capacity for tool and circuit has no other loads.
  • Page 9 Record Product’s Serial Number Here: Note: If product has no serial number, record month and year of purchase instead. Reference UPC 792363571500. Note: Replacement parts not available. Item 57150 For technical questions, please call 1-888-866-5797. Page 9...
  • Page 10 Page 10 For technical questions, please call 1-888-866-5797. Item 57150...
  • Page 11 Item 57150 For technical questions, please call 1-888-866-5797. Page 11...

  • Page 12: Limited 90-Day Warranty

    LIMITED 90 DAY WARRANTY Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of one year from the date of purchase.
