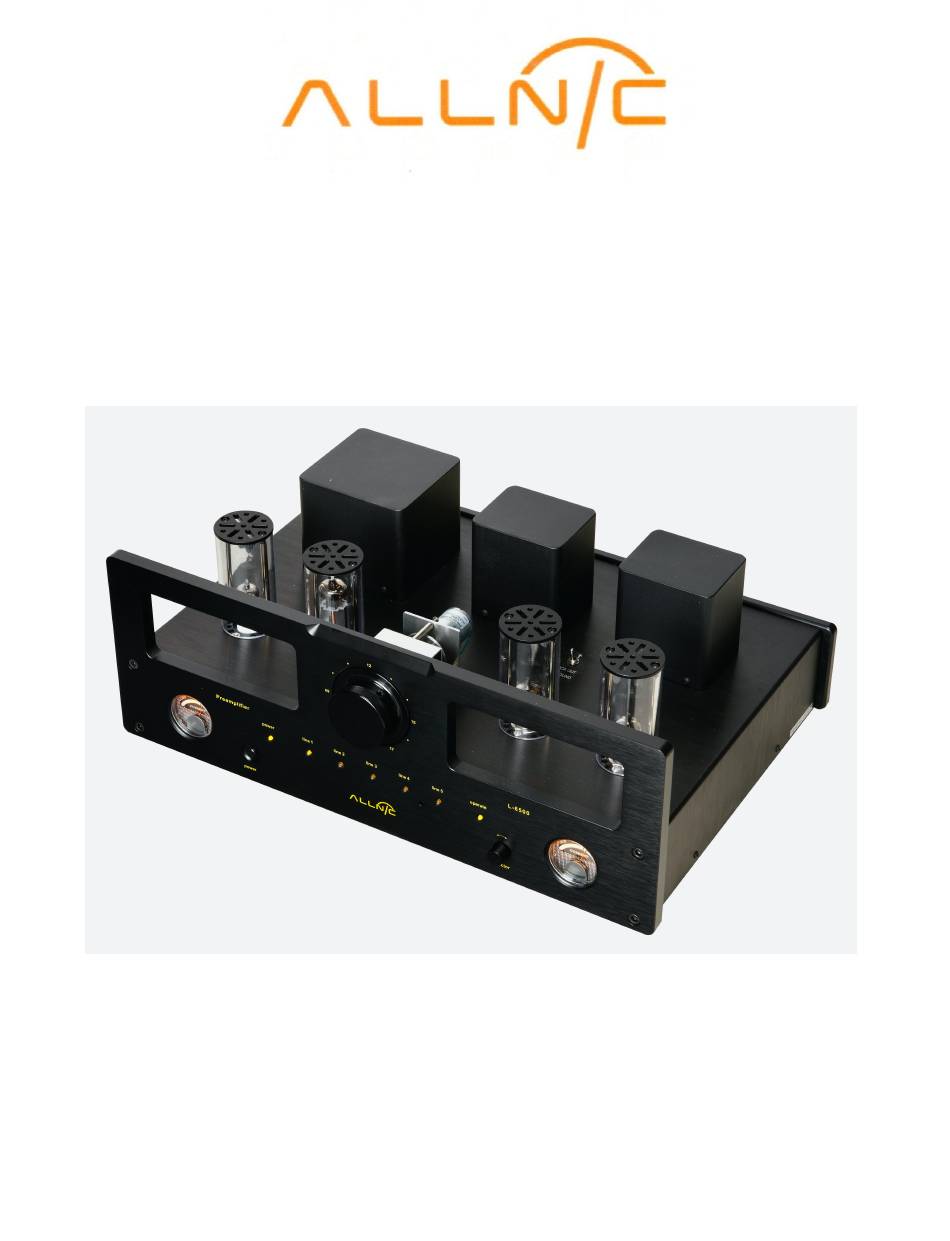

- Page 1 ALLNIC AUDIO L-6500 LINE-STAGE PREAMPLIFIER OWNER’S MANUAL...
- Page 2 L-6500 LINE-STAGE PREAMPLIFIER Thank you for purchasing the Allnic Audio L-6500 Line-Stage Preamplifier. We are certain your trust in Allnic Audio and its dealers worldwide, as well as your appreciation for the sound of this high-quality device, will be rewarded by its excellent operation for years to come.
-
Page 3: Table Of Contents
CURRENT METERS TUBES SPECIFICATIONS WARRANTY FIGURES Please read about SAFETY before you attempt to use the L-6500 Line- Stage Preamplifier - we care about our customers and the equipment, and we want you to enjoy this product for a long time! -
Page 4: Introducing The L-6500 Line-Stage Preamplifier

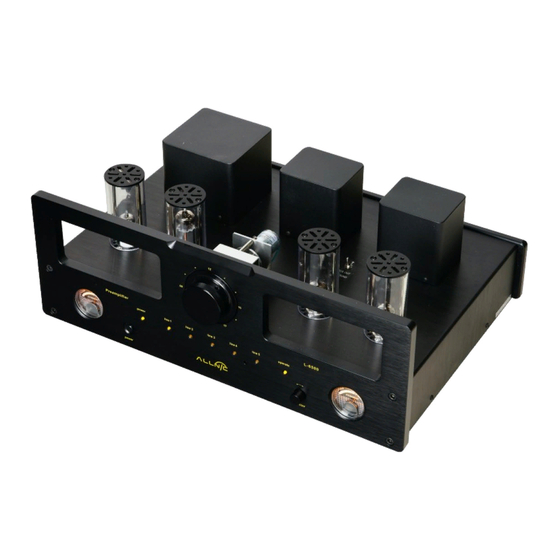

INTRODUCING THE L-6500 LINE-STAGE PREAMPLIFIER Immerse yourself in the original recorded space. The L-6500 is a single gain stage, transformer- coupled, remote-controlled line-stage pre-amplifier. The L-6500 is silent, except for the music emanating from the blackest of backgrounds. The outstanding sonic quality is matched by the simple elegance, flexibility and ergonomic functionality of the casework and connection options. -
Page 5: What's In The Box
Precision attenuator volume control – The L-6500 does not employ a digital IC volume control or a low- cost carbon film volume control with a motor. Allnic Audio has developed a precision oil clutched motorized attenuator; the L-6500 has no (± 0db) channel unbalance at any volume level. -
Page 6: Safety
NOT connect it to your AC outlet. Please contact your Allnic dealer. We advise that you keep the box and other packing materials that your L-6500 came in. It will be useful if you sell your L-6500 or in the unlikely event you need to ship it for service. -
Page 7: Power Connection
Figure 1). The L-6500 you have purchased is set internally for AC 110/120 volt – 60 HZ, or 220/230 volt – 50 Hz operation. There is no way to change this to another AC setting without return of the unit to the factory for re-wiring, at the owner’s cost, including transport both directions. -
Page 8: Remote Control
Once you have your L-6500 in place and all connections have been made to your sources and amplifier(s) and the power cord is installed and plugged into an AC receptacle, you are ready to turn on the power for your L-6500. Before you power up the L-6500, though, be sure you have: •... -
Page 9: Operation
The needle should be between the two parallel lines just left of centre on the meter face. Any failure of the tubes or circuits in one or the other of the L-6500 ’s channels is indicated by the needle on the meter for the respective channel moving out from between those two parallel lines. -
Page 10: Specifications
SPECIFICATIONS FOR THE ALLNIC AUDIO L-6500 LINE-STAGE PREAMPLIFIER • Line level × 5 pairs: Inputs: Balanced (XLR) × 3 Unbalanced (RCA) × 2 • 3 pairs: Outputs: Balanced (XLR) × 1 pair Unbalanced (RCA) × 2 pair • 100k ohms (RCA), 100k ohms (XLR) Input Impedance: •... -
Page 11: Warranty
Date of purchase is the date indicated on the invoice for the product issued by Allnic Audio or its authorized representative. For the warranty to be valid, a defective product must be returned to Allnic Audio’s authorized representative for service prior to any unauthorized attempt to repair. - Page 12 Figure 2 – L-6500 Rear Panel View Figure 3 – L-6500 Remote Control...
- Page 13 Figure 4 – L-6500 Front Panel View...
- Page 14 Figure 5 – L-6500 Top View...
