ALLNIC AUDIO
H-5500 PHONO-STAGE PREAMPLIFIER
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-5500 and is the answer not in the manual?

Questions and answers

Related Manuals for ALLNIC AUDIO H-5500

Summary of Contents for ALLNIC AUDIO H-5500

  • Page 1 ALLNIC AUDIO H-5500 PHONO-STAGE PREAMPLIFIER OWNER’S MANUAL...
  • Page 2 Please read this entire manual before you connect the H-5500 to the other components of your system and the wall outlet.

  • Page 3: Table Of Contents

    CURRENT METER SPECIFICATIONS WARRANTY FIGURES Please read about SAFETY before you attempt to use the H-5500 Phono- Stage Preamplifier - we care about our customers and the equipment, and we want you to enjoy this product for a long time!

  • Page 4: Introducing The H-5500 Phono-Stage Preamplifier

    H-5500 in your system. Be sure the H-5500 is labeled for the AC voltage of your location. If it is not, DO NOT connect the H- 5500 to your AC mains. Contact your authorized Allnic representative (See Figure 1).

  • Page 5: Cleaning

    IEC connector at one end (See Figure 1). The H-5500 is set internally for AC 110/120 volt – 60 HZ, or 220/230 – 50 HZ operation. There is no way to change this to another AC setting without return of the unit to the factory for re-wiring, at the owner’s cost, including...

  • Page 6: Inputs

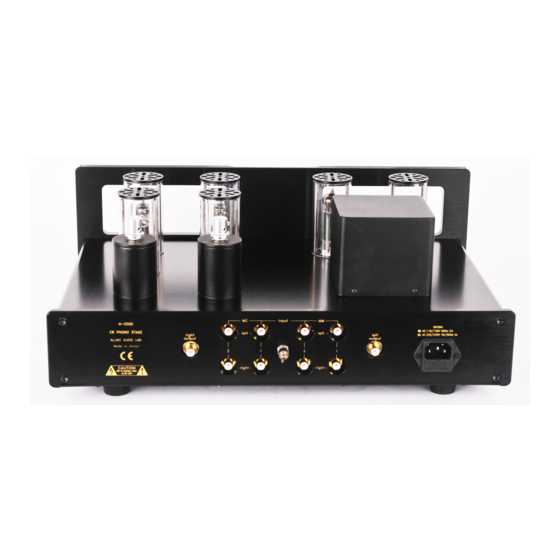

    RCA output connection is just to the left of the MC RCA input pairs (when facing the front of the H- 5500, to their right). Facing the rear of the H-5500, the left channel RCA output connection is just to the right of the MC RCA input pairs (when facing the front of the H-5500, to their left (See Figure 1).

  • Page 7: Operation

    To turn on the H-5500, press in the button switch labelled “power” just to the right of the current meter on the left of the front panel. Pressing the power button again will power down the H-5500 (See Figure 2).
  • Page 8 Maximum Input Voltage (MM, non-clipping): 20Hz / 30mV 100Hz / 60mV 1KHz / 300mV 10KHz / 500mV (Total Harmonic Distortion): Less than 0.3% (1KHz, Output 1V) Output Impedance: 1.2KΩ (on-off method) S/N Ratio: -68db (CCIR, 1KHz) Power Consumption: 20W / 220V @ 60Hz Tubes: E180CC - New old stock - approximately electrically (not sonically) equivalent: CV8431, 7062,...

  • Page 9: Warranty

    Date of purchase is the date indicated on the invoice for the product issued by Allnic Audio or its authorized representative. For the warranty to be valid, a defective product must be returned to Allnic Audio’s authorized representative for service prior to any unauthorized attempt to repair.
  • Page 10 Figure 2 – H-5500 Front Panel View Figure 3 – H-5500 Chassis Top View - MC Transformer Controls...
  • Page 11 Figure 4 – H-5500 Top View...
