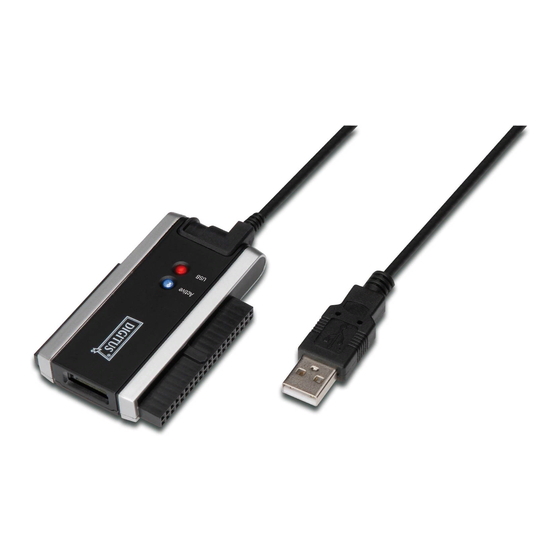

Usb 2.0 to ide & sata cable

Advertisement

Quick Links

1. Characteristics

Support SATA spread-spectrum transmitter
Support SATA II Asynchronous Signal Recovery (Hot Plug) feature
Compliance with USB 2.0 (Hi-Speed USB) electrical specification
Compliance with USB Mass Storage Class Bulk-Only Transport Specification
Support 480Mbps High Speed (HS) and 12Mbps Full Speed USB operation
Support ATA/ATAPI-7
Support ATA/ATAPI Ultra DMA Mode
Support ATA/ATAPI PACKET command feature set
Support ATA/ATAPI LBA48 addressing mode
Support dual LUN (Logic Unit Number) for USB to ATA/ATAPI
Support Windows 7/8/8.1, Vista, Windows XP, Windows 2000, Windows ME, 98SE
Need driver installation under Windows 98SE

Product introduction

1.
USB 2.0 A male
2.
IDE port for 2.5'' IDE hard drive
3.
Power socket for 5V input power adapter
4.
SATA port for 2.5''/3.5'' SATA hard drive
5.
IDE Port for 3.5'' IDE hard drive
6.
Power Indicator
7.
Active: The light will keep flashing when it is detecting the 2.5''/3.5'' SATA /IDE hard drive or during the
data transferring.

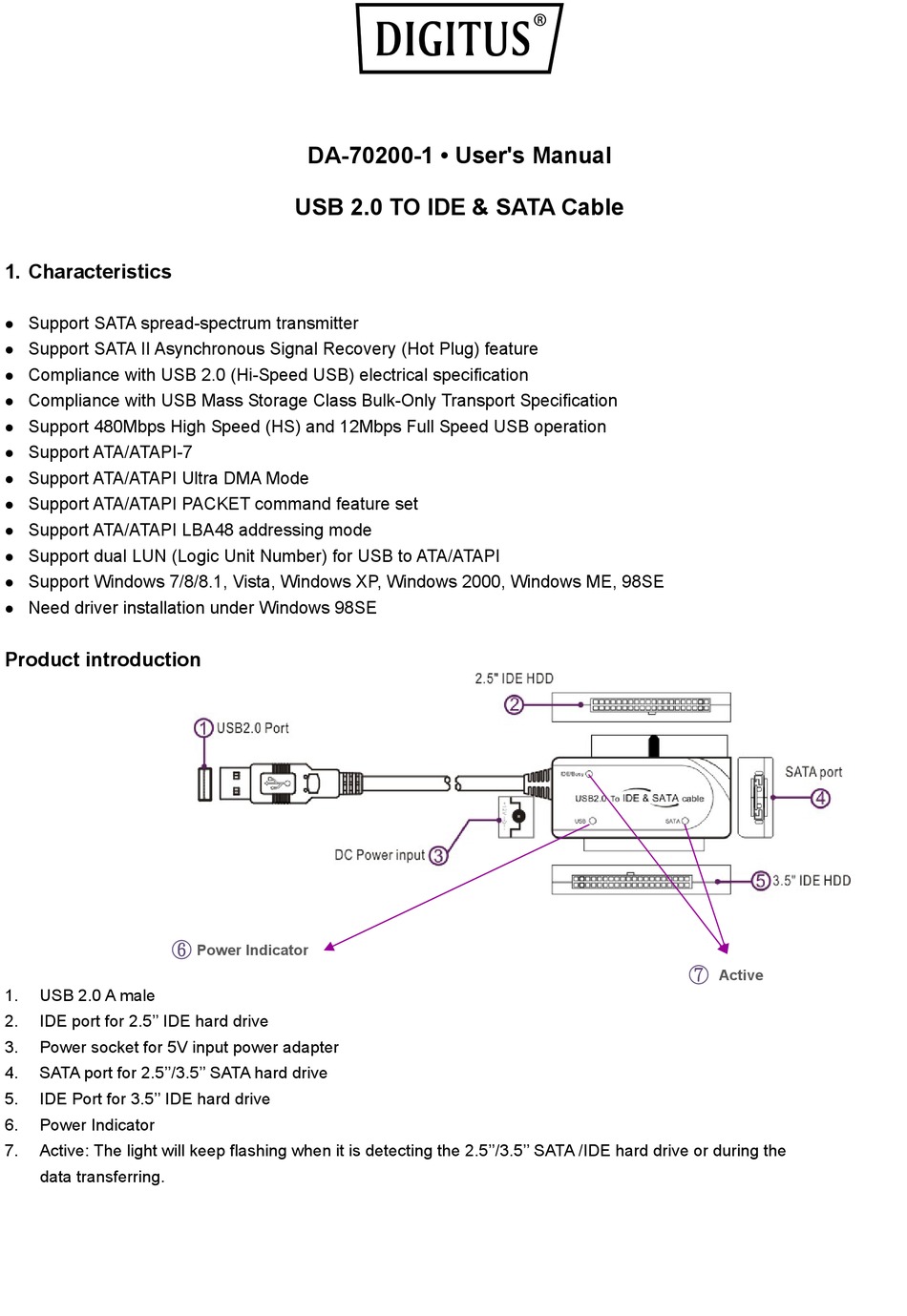

DA-70200-1 • User's Manual
USB 2.0 TO IDE & SATA Cable
Power Indicator
Active

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA-70200-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digitus DA-70200-1

  • Page 1 DA-70200-1 • User's Manual USB 2.0 TO IDE & SATA Cable 1. Characteristics Support SATA spread-spectrum transmitter  Support SATA II Asynchronous Signal Recovery (Hot Plug) feature  Compliance with USB 2.0 (Hi-Speed USB) electrical specification  Compliance with USB Mass Storage Class Bulk-Only Transport Specification ...
  • Page 2 User tips for HDD installation for 3.5’’ IDE HDD Have IDE Hard Drive to connect with USB 2.0 to SATA & IDE CABLE Have the external Power Adapter connect with 3.5” IDE HDD. Power on the power adapter, connect the USB 2.0 to IDE & SATA Cable to the PC USB port, the PC can automatically detect the product and the 3.5”...
  • Page 3 2. Software Installation Before installation, please connect the hard disk to the USB 2.0 IDE to SATA Cable Windows 98SE After installing the driver, please restart the computer, and then plug the USB 2.0 TO IDE&SATA CABLE into the computer. It’s very important. 1) Please put the enclosed CD into the CD-ROM, and doubly click “setup.exe”...
  • Page 4 4. Remove Driver 1) Pull out USB 2.0 TO IDE&SATA CABLE from the USB port of the computer 2) Then, Open the program "Add or Remove Programs", according to the following pass: Start/ Control Panel/ Add or Remove Programs. 3) When the following screen displays, Please click ‘ JMicron USB Disk Driver’, and then click “ADD/Remove…”, to begin canceling.
  • Page 5 5. If you use a all new HDD 1) Please use " Fdisk " to set the capacity of your HDD, but this will destroy all the data in the HDD. 2) Format your HDD by standard procedures, if you can't find your new HDD, please following the steps in FAQ-1 Note: "Fdisk"...
