ESCALADE Silverback B8417 Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. ESCALADE Manuals
  4. Sports & Outdoors
  5. Silverback B8417
  6. Assembly instructions manual

ESCALADE Silverback B8417 Assembly Instructions Manual

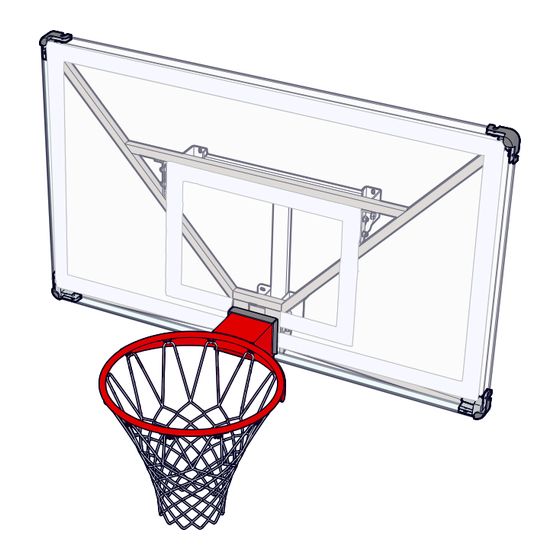

54" wall mount basketball system
Hide thumbs

Advertisement

Quick Links

Download this manual
Please Do Not Return This
Product to the Store!
Contact Escalade® Sports customer service department at:
Phone: 1-888-USA-GOAL Toll-Free!
Fax: 1-866-873-3536 Toll-Free!
E-mail: customerservice@escaladesports.com
Escalade® Sports products may be manufactured and/or licensed under the following patents.
6120397, 5816957, 5769744, 5119741, 4911085, 4717157, D460140, D420563, 8414431
Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.
5 4 " W A L L M O U N T
B A S K E T B A L L S Y S T E M
MODEL NO.
B8417
2L-7986-02
2022 Escalade Sports

Advertisement

loading
Need help?

Need help?

Do you have a question about the Silverback B8417 and is the answer not in the manual?

Questions and answers

Related Manuals for ESCALADE Silverback B8417

Summary of Contents for ESCALADE Silverback B8417

  • Page 1 Fax: 1-866-873-3536 Toll-Free! E-mail: customerservice@escaladesports.com 2L-7986-02 Escalade® Sports products may be manufactured and/or licensed under the following patents. 6120397, 5816957, 5769744, 5119741, 4911085, 4717157, D460140, D420563, 8414431 2022 Escalade Sports Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.

  • Page 2: P R E - A S S E M B L Y T I P S

    Sockets(deep-well sockets are recommended) (extension recommended) 13mm & 16mm • Phillips Screw Driver Please Do Not Return This Product To The Store! ® Contact Escalade Sports customer service department at: Please visit our Website at: 1-800-USA-GOAL Phone: Toll – Free ! www.escaladesports.com...
  • Page 3 WARNING WARNING A SOLID MOUNTING SURFACE, CAPABLE OF WITHSTANDING CAREFULLY INSPECT MOUNTING AREA FOR NORMAL RECREATIONAL USE FORCES, MUST BE PROVIDED STRUCTURAL INTEGRITY AND HIDDEN BY THE CUSTOMER. A RELIABLE CARPENTER OR BUILDING ELECTRICAL WIRING. CONTRACTOR SHOULD BE CONSULTED IF THERE ARE ANY QUESTIONS REGARDING PROCEDURE.
  • Page 4 DANGER FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN Refer to product manual for assembly instruc ons. SERIOUS INJURY AND/OR PROPERTY DAMAGE. Consult a structural engineer or builder on the DO NOT DUNK on this system. moun ng of this system and hardware required to do During play, do not wear jewelry (rings, watches, necklaces, so.
  • Page 5 P A R T S L I S T ( N O T A C T U A L S I Z E ) WALL BRACKET BACKBOARD ASSEMBLY, 54" MOUNTING CHANNEL, BACKBOARD 1A-7957-20 1A-8001-00 4A-8282-20 QTY. 1 QTY. 1 QTY. 1 COVER PLATE CONNECTOR PLATE BREAK AWAY RIM ASSEMBLY...
  • Page 6 H A R D W A R E L I S T ( A C T U A L S I Z E ) #8 X 1/2" THREAD CUTTING SCREW M10-1.5 X 165mm HEX HEAD BOLT 1B-6238-01 1B-7183-00 QTY. 4 QTY.
  • Page 7 DANGER CONSULT A STRUCTURAL ENGINEER OR BUILDER ON THE MOUNTING OF THIS SYSTEM AND HARDWARE REQUIRED TO DO SO. AVOID ATTACHING TO ANY BRICK SURFACE OR FAÇADE. IMPROPER MOUNTING MAY CAUSE SERIOUS INJURY OR DEATH. WARNING MINIMUM DISTANCE SHOULD BE 135.3” FROM TOP OF WALL BRACKET (ITEM #1) TO PLAYING SURFACE.
  • Page 8 HARDWARE NEEDED (ACTUAL SIZE) M10-1.5 X 165mm HEX HEAD BOLT 1B-7183-00 WASHER M10 M10-1.5 HEX LOCK NUT QTY. 1 2B-6801-00 2B-6800-00 QTY. 2 QTY. 1 TOOLS NEEDED NOTE Tighten hardware about 3/4ths of the way. Leave loose enough to 16mm 16mm attach the rest of the parts.
  • Page 9 HARDWARE NEEDED (ACTUAL SIZE) TOOLS NEEDED 13mm 13mm M8-1.25 HEX LOCKNUT M8-1.25 X 25 HHCS WASHER M8 2B-6797-00 1B-7170-00 2B-6808-00 QTY. 8 QTY. 4 QTY. 4 NOTE MAKE SURE HEAD OF BOLTS ARE ASSEMBLED ON THE INSIDE OF THE BRACKET AS SHOWN IN THE DETAIL VIEWS.
  • Page 10 HARDWARE NEEDED (ACTUAL SIZE) THE FOLLOWING STEPS REQUIRE 2 PEOPLE. NOTE ATTACH BACKBOARD TO THE TOP BRACKETS AND THEN SWING BACKBOARD DOWN ONTO THREADED STUDS EXTENDING FROM BACKBOARD MOUNTING CHANNEL (#3). HEX HEAD BOLT M10-1.25 X 30mm WASHER M10 M10-1.5 HEX LOCK NUT 1B-7239-00 2B-6801-00 2B-6800-00...
  • Page 11 HARDWARE NEEDED (ACTUAL SIZE) TOOLS NEEDED 16mm socket Phillips with 3” Extension WASHER M10 M10-1.5 HEX LOCK NUT 2B-6800-00 2B-6801-00 QTY. 4 NOTE QTY. 4 TAKE PROTECTIVE COATING OFF THE BACKBOARD BEFORE ATTACHING THE RIM. LEVEL RIM AND FULLY TIGHTEN THE HARDWARE. #8 X 1/2"...
  • Page 12 DETAIL A...
  • Page 13 Do not dunk or hang from the rim or any part of this system. Rims are not warranted for any defects other than workmanship. Torn back plates, damaged springs, bent rings, damaged eye bolts, and torn or distorted rim supports result from hanging on the rim and are not warranted.

  • Page 14: Limited 5 Year Warranty

    OR OTHER CAUSES NOT ARISING OUT OF DEFECTS IN MATERIAL OR WORKMANSHIP . ® Subject to proper installation and normal Residential use, Escalade Sports warrants, subject to the limitations below, to the original retail ® purchaser all structural components of the Silverback System to be free of defects in material and workmanship for a period of five (5) years from the original purchase.
