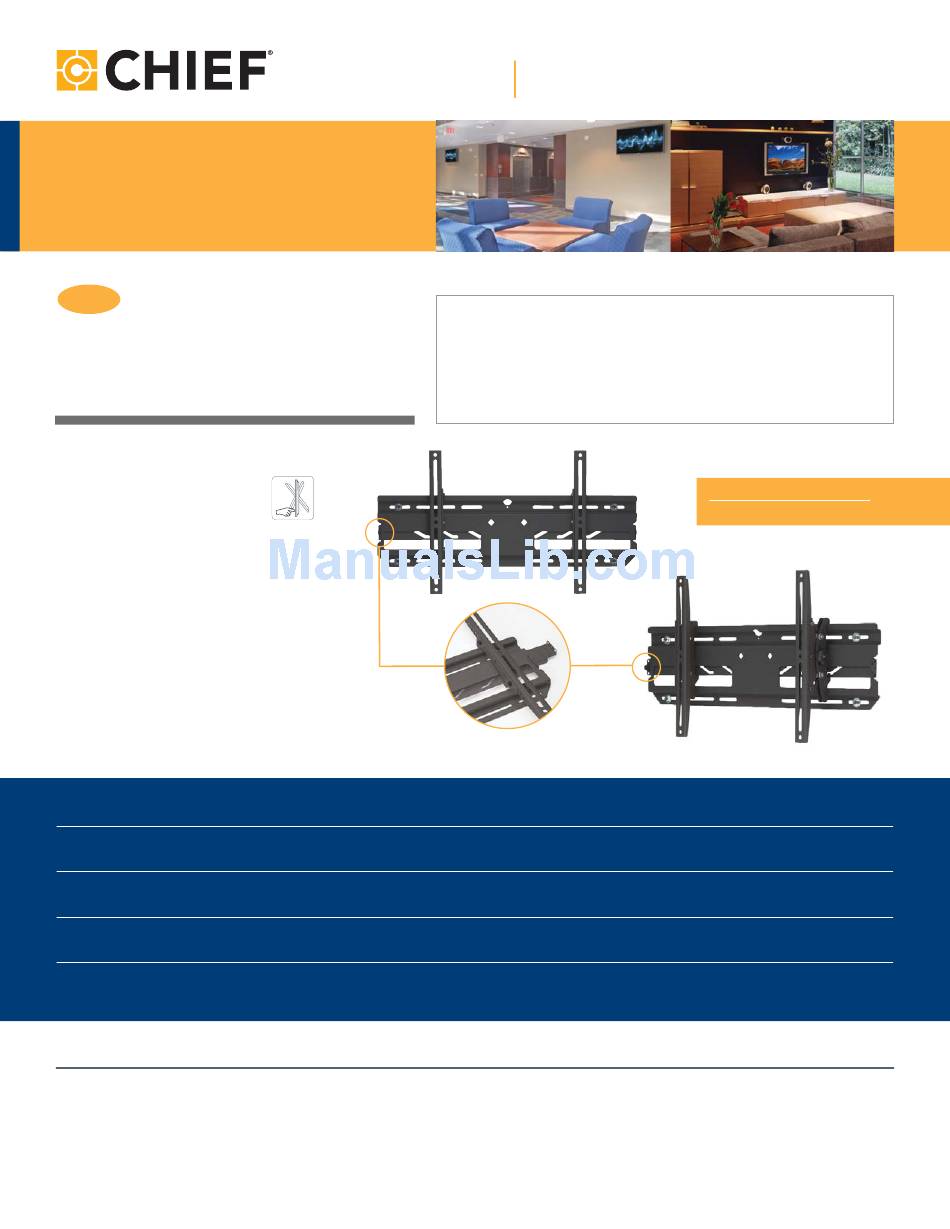

CHIEF RLF1 Product Specifications

UNIVERSAL
WALL MOUNTS
NEW!
GET BACK TO BASICS
Universal, rail-style wall mounts are easy to install
and simple to use.
UNIQUE FEATURES
I
Patented Centris ® Technology
fingertip tilt adjustments
I
Multiple mounting options including
single stud, 16", 20" and 24" centers
I
Post-installation lateral shift
I
Tool-less latching feature with exclusive
Glide Lock ™ Locking Flag
I
Integrated security with the addition of
a padlock
I
Allows for easy outlet placement above
or below mount
I
Installation hardware included
Dimensions
Model WxHxD
RMF1 20" x 10" x 1.64"
(508 x 254 x 42 mm)
RMT1 20" x 10" x 3.26"
(508 x 254 x 83 mm)
RLF1 29" x 18" x 1.64"
(737 x 457 x 42 mm)
RLT1 29" x 18" x 3.26"
(737 x 457 x 83 mm)
e n d - u s e r f o c u s e d
C H I E F M A N U FA C T U R I N G
U S A / I N T E R N AT I O N A L
C H I E F M O U N T S C A N A D A
C S AV E U R O P E B . V.
CSAV ASIA PACIFIC LTD
©2007 CSAV, Inc. Printed in the USA. 100128A 3/07. Chief is a registered trademark of CSAV, Inc. All other brand names or marks are used for identification purposes and
are trademarks of their respective owners. All patents are protected under existing designations. Other patents pending.
PRO AV
Weight
Capacity Tilt Screen Size Range
100 lbs – 23–45" LCDs
(45 kg) (58–114 cm)
100 lbs +/- 15˚ 23–45" LCDs
(45 kg) (58–114 cm)
175 lbs – 30–50" Plasmas & LCDs
(80 kg) (76–127 cm)
175 lbs +/- 15˚ 30–50" Plasmas & LCDs
(80 kg) (76–127 cm)
f a s t e r i n s t a l l a t i o n
I
A DIVISION OF CSAV, INC
I
P 800.582.6480/952.894.6280
I I
P 877.345.4329 F 888.377.5314
I I
P 31 (0)40 2668620
I I
P 8 6 7 5 5 8 9 9 6 9 2 2 6
HOME ENTERTAINMENT
IDEAL FOR 23–50" FLAT PANEL DISPLAYS
These simple, universal rail-style wall mounts offer an easy to
assemble, two-piece design that integrates into any environment.
These mounts are ideal for those who don't require the full
feature-set or supporting accessories of Chief's FUSION
fixed and tilt wall mounts.
RLF1
Large Fixed Mount
Glide Lock
Locking Flag
PRODUCT SPECIFICATIONS
Mounting Hole
Patterns (Maximum WxH)
9" x 17" (227 x 432 mm),
VESA 400 x 200 mm
9" x 17" (227 x 432 mm),
VESA 400 x 200 mm
17" x 29" (432 x 737 mm)
17" x 29" (432 x 737 mm)
s u p e r i o r s e r v i c e
I
www.chiefmfg.com
I
F 877.894.6918/952.894.6918
I
info@chiefmounts.ca
I
F 31 (0)40 2668615 europe.chief@csavinc.com
I
F 8 6 7 5 5 8 9 9 6 9 2 1 7 a s i a . c h i e f @ c s a v i n c . c o m
™ Series
Also Available
RMF1 Medium Fixed Mount
RMT1 Medium Tilt Mount
RLT1
Large Tilt Mount
Installation
Options Color(s)
I
Single Stud,
16" Centers
I
Single Stud,
16" Centers
I
16", 20" and
24" Centers
I
16", 20" and
24" Centers
p r o v e n q u a l i t y
