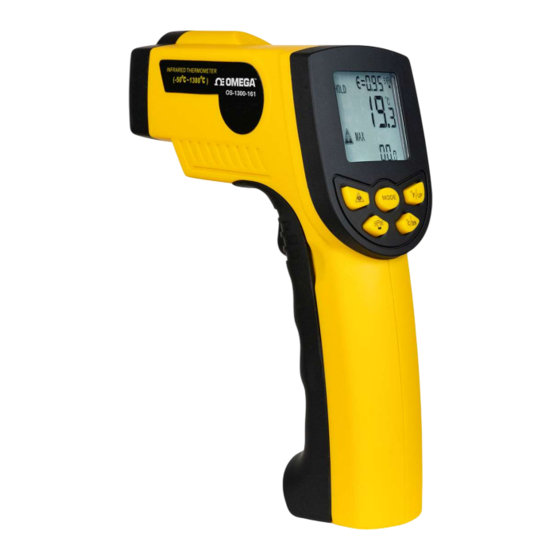

Introduction The OS1300-Series handheld infrared thermometer is a non-contact temperature sensing thermometer. It has a wide temperature range of -50 to 1300°C (-58 to 2372°F). This thermometer features a backlit display which is automatically illuminated when the trigger is pulled and allows working in poor or zero-lighting conditions. The single laser is also automatically active when the trigger is pulled. -
Page 5: Caution
Emissivity Table: Material Emissivity Material Emissivity Aluminum 0.30 Iron 0.70 Asbestos 0.95 Lead 0.50 Asphalt 0.95 Limestone 0.98 Basalt 0.70 0.94 Brass 0.50 Paint 0.93 Brick 0.90 Paper 0.95 Carbon 0.85 Plastic 0.95 Ceramic 0.95 Rubber 0.95 Concrete 0.95 Sand 0.90 Copper 0.95... -
Page 6: Specifications
Specifications Temperature Range -50 to 1300°C (-58 to 2372°F) Accuracy 3% of reading + 3°C, -50°C to 0°C (-58 to 32°F) 2% of reading +2°C, above 0°C Field of View 16:1 Repeatability 1% of reading or 1°C Response Time 500 ms (95% response) Spectral Response 8 –... -
Page 7: Button And Key Layout
3.2 Button and key Layout: 3.3 Operating Steps 1) Hold the thermometer by the handle grip and point it towards the surface to be measured. 2) Pull and hold the trigger to turn the thermometer on. The “SCAN” icon will appear on the top line of the display. 3) The surface temperature being measured will be displayed on the LCD screen. -
Page 8: Locating A Hotspot
3.5 Locating a Hotspot: To find a hot spot, aim the thermometer outside the area of interest, then scan across with up and down motions until you locate the hot spot. Turning on the laser will make for more precise targeting. 3.3 Locating a Hotspot: To find a hot spot aim the thermometer outside the area of interest, then scan across with up and down motions until you locate the hot spot. - Page 9 © Copyright 2019 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of OMEGA ENGINEERING,...
