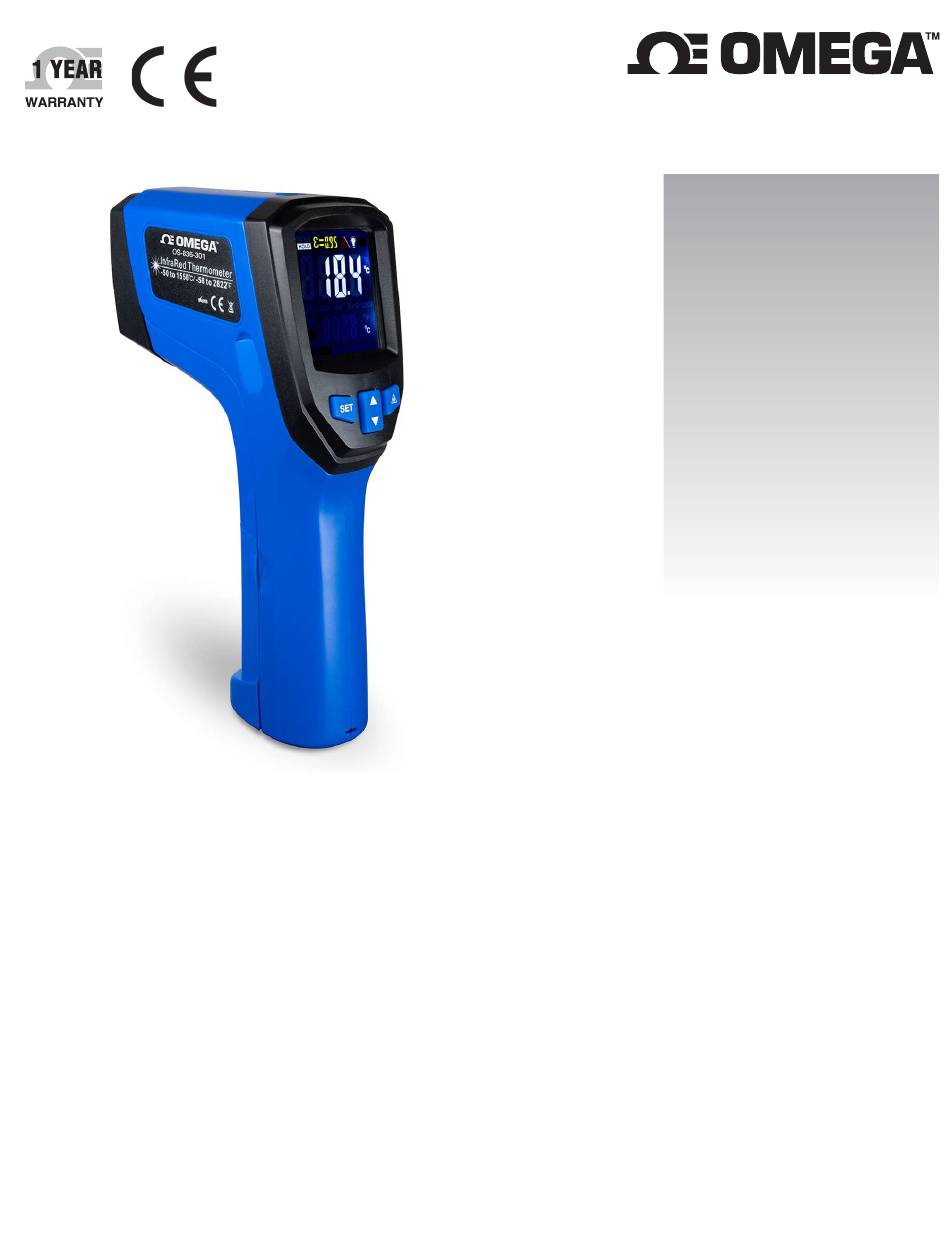

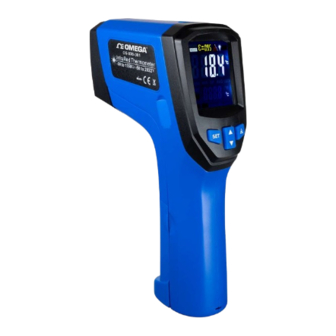

- Page 1 U ser’ s Gui d e Shop online omega.com e-mail: info@omega.com For latest product manuals: www.omegamanual.info OS836-Series High Performance Infrared Thermometer...
- Page 2 Servicing North America: U.S.A. Omega Engineering, Inc. 800 Connecticut Ave. Suite 5N01, Norwalk, CT 06854 Headquarters: Toll-Free: 1-800-826-6342 (USA & Canada only) Customer Service: 1-800-622-2378 (USA & Canada only) Engineering Service: 1-800-872-9436 (USA & Canada only) Tel: (203) 359-1660 Fax: (203) 359-7700 e-mail: info@omega.com...
-
Page 3: Table Of Contents
Table of Contents Table of Contents ............................. 3 1) Introduction .............................. 4 How it works ..............................4 Caution ................................5 2) Specifications ............................6 3) Operating Instructions ..........................6 Battery Installation: ............................6 Product Layout: ..............................7 Button Layout: ..............................7 Operating Steps ...............................8 Button function ..............................8 3.5.1 Setting Mode ................................ -
Page 4: Introduction
Introduction The OS836-Series high performance infrared thermometer boasts 30 to 1 field of view and -50 to 1550°C (-58 to 2822°F) temperature range. This high performance easy to use device is great for non-contact measurement of surfaces that are far away and very high temperatures. -
Page 5: Caution
Emissivity Table: Material Emissivity Material Emissivity Aluminum 0.30 Iron 0.70 Asbestos 0.95 Lead 0.50 Asphalt 0.95 Limestone 0.98 Basalt 0.70 0.94 Brass 0.50 Paint 0.93 Brick 0.90 Paper 0.95 Carbon 0.85 Plastic 0.95 Ceramic 0.95 Rubber 0.95 Concrete 0.95 Sand 0.90 Copper 0.95... -
Page 6: Specifications
Specifications Temperature Range -50°C - 1550°C (-122°F - 2822°F) Thermocouple Range -50°C - 1370°C (-58°F - 2498°F) Accuracy ±4.0°C (7.2°F): -50°C - 0°C (-58°F - 32°F) ±1.5% ± 2.0°C (3.6°F): 0°C - 500°C (32°F - 932°F) ±2.0% ± 2.0°C (3.6°F): >500°C (932°F) Thermocouple Accuracy ±1.5% or 2.0°C (3.6°F), whichever is greater Field of View... -
Page 7: Product Layout
Product Layout: 1) Laser Pointer 2) IR Sensor 3) Laser Pointer 4) Measurement Trigger 5) Battery Cover 6) Tripod Mounting Hole (bottom of unit) 7) Up/Down Button 8) Laser On/Off 9) Set Button 10) LCD Display 11) K-type Probe Connection Button Layout: 12 11 LCD Display:... -
Page 8: Operating Steps
Operating Steps 1) Hold the thermometer by the handle grip and point it towards the surface to be measured. 2) Pull and hold the trigger to turn the thermometer on, the “SCAN” icon will appear and blink when measurement starts. 3) The surface temperature being measured will be displayed on the LCD screen. - Page 9 © Copyright 2019 OMEGA ENGINEERING, INC. All rights reserved. This document may not be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or in part, without the prior written consent of OMEGA ENGINEERING,...
- Page 10 Where Do I Find Everything I Need for Process Measurement and Control? OMEGA…Of Course! Shop online at omega.com TEMPERATURE Thermocouple, RTD & Thermistor Probes, Connectors, Panels & Assemblies Wire: Thermocouple, RTD & Thermistor Calibrators & Ice Point References ...
