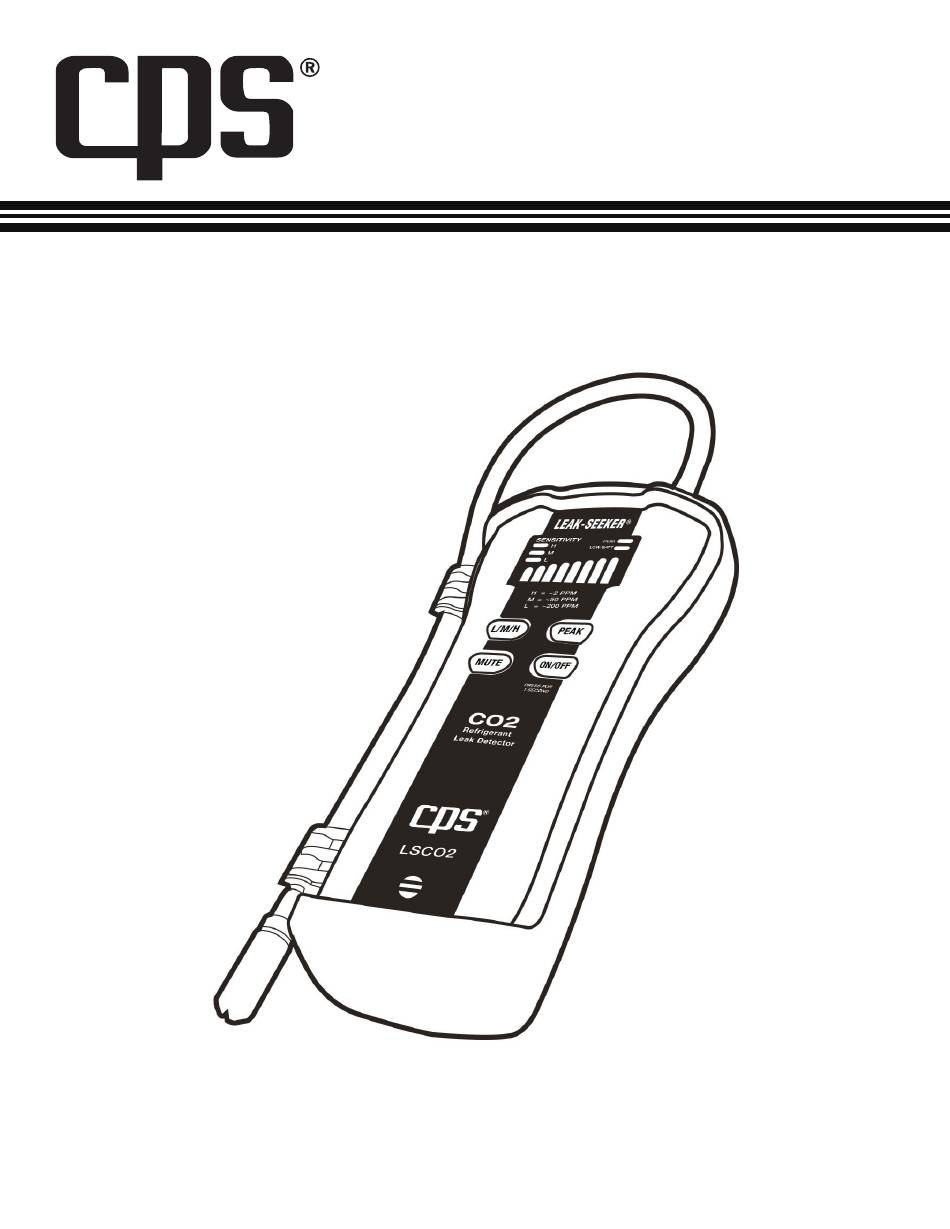

- Page 1 Leak-Seeker ® CPS Leek-Seeker LSCO2 ® Carbon Dioxide Refrigerant Leak Detector OPERATION MANUAL www.cpsproducts.com...
-
Page 2: Table Of Contents
GENERAL INFORMATION Table of ConTenTs Quick Start General Safety Instructions 03-04 Lithium Battery Care Overview Controls/Features (Housing Front) Controls/Features (Housing Back) Controls/Features (Accessories) Battery Use Functions & Settings 11-13 Operation CO2 Leak Detection Procedure 15-16 Appendix A (Detector Specifications) 17-18 Appendix B (Battery Specifications) Appendix C (Battery Charger Specifications) Appendix D (Battery Selection &... -
Page 3: Quickstart
2. fIlTeR - Insure that one of the included filters is installed inside the flexible wand tip (or in the base of the Brass Needle Probe). never operate the lsCo2 without an approved CPs filter installed. Damage to the lsCo2 may result. -
Page 4: General Safety Instructions
• Do noT charge the battery with any charger other than the chargers supplied with the LSCO2. • Do noT use the LSCO2 without a clean, CPS brand filter correctly installed in the tip of the flexible wand (or base or the Needle Probe). - Page 5 PRoCeDURes WHen seRVICInG THose sPeCIfIC TYPes of eQUIPMenT. • noTe: It may be unlawful to discharge or exhaust refrigerants into the atmosphere. CPS strongly recommends the practice of recovery or recycling. Check your local government agencies for refrigerant handling regulations.
-
Page 6: Lithium Battery Care
GENERAL INFORMATION lITHIUM baTTeRY CaRe To prevent personal injury and/or equipment damage: • Do not disassemble or attempt to repair the battery or protective circuit. • Never attempt to charge the battery if it has been removed from the unit. •... -
Page 7: Overview
GENERAL INFORMATION oVeRVIeW The LSCO2 Carbon Dioxide Detector from CPS uses an advanced infrared, photo optics, permanent sensor and user friendly controls to allow the HVAC technician to quickly and easily detect a change in concentration of CO2 gas in residential and commercial HVAC/R systems. -
Page 8: Controls/Features (Housing Front)
GENERAL INFORMATION ConTRols/feaTURes (HoUsInG fRonT) 16” Or 10” Flexible Wand Peak Indicator LED Low, Medium & High Sensitivity Indicators Low, Medium Or High Sensitivity Selection Key Low Battery Indicator MUTE Key 8 LEDs Indicate ON/OFF Key Concentration Level Filter Chamber (Attaches To PEAK Key End Of 10”... -
Page 9: Controls/Features (Housing Back)
GENERAL INFORMATION ConTRols/KeY feaTURes (HoUsInG baCK) Connection Point For AC Flexible 16” Wall Charger Or DC Car (40,6 cm) Wand Charger Rechargeable, Replaceable Lithium Ion Battery Wand Gasket Battery Replaceable filter Compartment located in end (Door Installed) pg 08... -
Page 10: Controls/Features (Accessories)
GENERAL INFORMATION ConTRols/KeY feaTURes 4 Interchangeable 9” Needle 10” or 16” Plugs Probe Flexible Wand Universal Wall Charger Car Charger 5 Replacement Wand Gaskets 10 Replacement Filters pg 09... -
Page 11: Battery Use
GENERAL INFORMATION baTTeRY Use befoRe UsInG THe lsCo2 foR THe fIRsT TIMe 1. The LSCO2 was factory shipped with the Lithium Ion Battery partially charged. fully charge the lithium Ion battery using the included AC Wall Charger or the 12V DC Car Charger (See Charging Instructions Below). WHen THe baTTeRY CHaRGe Is loW 1. -
Page 12: Functions & Settings
& seTTInGs fIlTeR (function & Replacement) 1. Prior to operating the LSCO2, an approved, CPS brand disposable filter MUST ALWAYS be placed within the tip of either flexible wand (or at the base of the brass Needle Probe). The filter acts as a moisture and contaminant barrier, thereby protecting the sensor. - Page 13 GENERAL INFORMATION fUnCTIons & seTTInGs The higher the concentration of CO2 in the area being inspected, the lower the sensitivity setting should be to minimize false alarms. Sensitivity LED Corresponding PPM (Parts Per Million) H (High) Approx. 2 PPM M (Medium) Approx.
- Page 14 GENERAL INFORMATION fUnCTIons & seTTInGs ConTaMInaTIon MoDe 1. To check for even the smallest leaks in refrigerant contaminated environments, press the PEAK Key rapidly 4 times. The GREEN PEAK LED will flash rapidly to indicate “Contamination Mode” is ON. 2. Press the PEAK Key again 4 times to turn this feature OFF. pg 13...
-
Page 15: Operation
OPERATION INFORMATION oPeRaTIon Co2 DeTeCTIon In oUTDooR aReas The LSCO2 sensor is stable, but can be set off by excess turbulent air currents around the wand nozzle. Therefore, outdoor operation may lead to mixed results and false signals on the most sensitive levels. Co2 DeTeCTIon In ConfIneD aReas 1. -
Page 16: Co2 Leak Detection Procedure
OPERATION INFORMATION Co2 leaK DeTeCTIon PRoCeDURe Use the following “double pass method” to find Co2 leaks by detecting a change in refrigerant concentration. 1. Charge the a/C system with enough refrigerant to have a gauge pressure of at least 50 PsI (340 kPa) with the system off. At ambient temperatures below 15°C, leaks may not be measureable as the pressure may not be reached. - Page 17 OPERATION INFORMATION Co2 leaK DeTeCTIon PRoCeDURe 5. at a rate of no more than 3 inches/sec. (75mm/sec), move the wand tip completely around each test position (valve, sensor, welded areas, tubing connection points, etc.) as closely as possible (without making contact). Slower movement and closer approach of the wand tip around each test position normally improves the chances of finding a leak.
-
Page 18: Appendix A (Detector Specifications)
APPENDIX INFORMATION aPPenDIX a DeTeCToR sPeCIfICaTIons Operating 32°F to 122°F (0°C to 40°C) Temp Range: Gas Measured: Carbon Dioxide (CO2) Wand Length: 10 Inch (22,8 cm) & 16 Inches (38 cm) Needle Probe 9 Inch Length: Sensing Element: Infrared Warm Up Time: Approx. -
Page 19: Appendix B (Battery Specifications)
APPENDIX INFORMATION aPPenDIX a Storage < 80% RH for detector (and battery). Storage and Environment: operating temperatures are recommended to be the same to maximize battery life LSCO2 Weight: 14.4 Oz (.408 kg) aPPenDIX b baTTeRY sPeCIfICaTIons Battery Type: 3.7 VDC (nominal) rechargeable lithium-ion Battery Life: 8 hours continuous (when fully charged) Degradation:... -
Page 20: Appendix C (Battery Charger Specifications)
APPENDIX INFORMATION aPPenDIX C baTTeRY CHaRGeR sPeCIfICaTIons Wall CHaRGeR Input: AC 100-240 Output: 15V 800 mA. CaR CHaRGeR Input Voltage: 12V (>20V will damage detector). Fuse: aPPenDIX D (baTTeRY seleCTIon & RePlaCeMenT) Each new LSCO2 Carbon Dioxide Detector includes one (partially charged) rechargeable Lithium Ion type NP-120 battery. -
Page 21: Appendix E (Replacement Parts & Accessories)
APPENDIX INFORMATION aPPenDIX e RePlaCeMenT PaRTs & aCCessoRIes LSCO2X6 9” (22,5 cm) Fixed Brass Needle Probe LSCO2X7 10” (cm) Flexible Wand (& Extension) LSCO2X8 16” (38 cm) Flexible Wand LSCO2X2 AC Wall Charger (Universal Plug Kit) LSCO2X5 DC Car Charger LSCO2X1 Replacement Filters (Pack Of 10), Wand Gaskets (Pack Of 5) -
Page 22: Appendix F (Troubleshooting Guide)
APPENDIX INFORMATION aPPenDIX f (TRoUble sHooTInG GUIDe) PROBLEM CAUSE POSSIBLE SOLUTION 1. Will not Detector not through start Wait until start up complete. Try detect CO2 up cycle. No CO2 present other suspected areas. Move in area being investigated. wand closer and slower to Nozzle filter is clogged suspected areas. -
Page 23: Appendix G (Limited Warranty)
If a detector is believed to be defective it must be returned to CPS Products. If the product is found to be defective, CPS will repair or replace the item(s), at our option, at no charge. This warranty does not apply to products... - Page 24 MeRCHanTabIlITY oR fITness foR a PaRTICUlaR PURPose aRe lIMITeD To THe DURaTIon of THe lIMITeD PRoDUCT WaRRanTY. In no Case sHall CPs PRoDUCTs InC. HaVe anY lIabIlITY foR sPeCIal, InCIDenTal oR ConseQUenTIal DaMaGes of anY KInD, InClUDInG bUT noT lIMITeD To: THe loss of THe Use of THe PRoDUCT oR anY...
