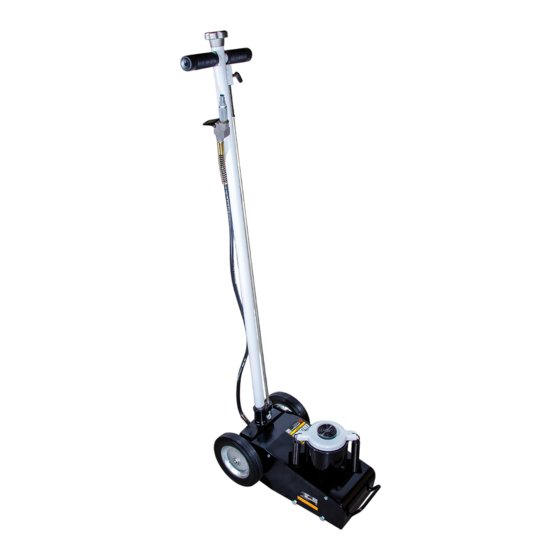

Omega Lift Equipment 23301C Operating Instructions & Parts Manual

Hydraulic truck jack
Hide thumbs Also See for 23301C:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Instructions & Parts Manual
Model
23301C
U.S. Patent Nos. 5,341,723 -
5,946,912
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
AdveRTenCIA
!
• Leer, comprender, y seguir las instrucciónes antes
de utilizar el aparato.
• El manual de instrucciónes y la información de
seguridad deben estar comunicado en lengua del
operador antes del uso.
• No seguir estas indicaciónes puede causar daños
personales o materiales.
Read this manual and follow all the Safety Rules and Operating Instructions before using this product.
Hydraulic Truck Jack
Capacity
30 Ton
WARNING
!
To avoid crushing and related injuries:
• neveR work on, under or around
a load supported only by a hydraulic
jack.
• ALWAYS use adequately rated jack
stands.
http://www.omegalift.com
SFA Companies
Made in China
23301C-M0 10/08
