Operating Instructions & Parts Manual
Hydraulic Truck Jack
& 1" Air Impact Wrench
Model
Capacity
23221CIMPACT
22 Ton
1" Air Impact Wrench

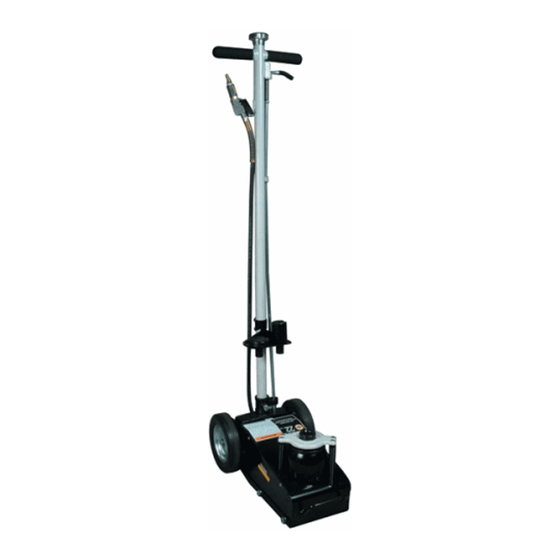

Hydraulic Truck Jack
U.S. Patent No's. 6,012,377 & 5,946,912
!
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
SFA Companies
http://www.omegalift.com
Read this manual and follow all the Safety Rules and Operating Instructions before using this product.
© September 2017
23221CIMPACT-M0_092017
Advertisement
Related Manuals for Omega Lift Equipment 23221CIMPACT
Summary of Contents for Omega Lift Equipment 23221CIMPACT
- Page 1 Operating Instructions & Parts Manual Hydraulic Truck Jack & 1” Air Impact Wrench Model Capacity 23221CIMPACT 22 Ton 1" Air Impact Wrench Hydraulic Truck Jack U.S. Patent No's. 6,012,377 & 5,946,912 This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
-
Page 2: Safety And General Information
SAFETY AND GENERAL INFORMATION Save these instructions. For your safety, read, understand, and follow the information provided with and on this device before using. The owner and/or operator shall have an understanding of the device, its operating characteristics and safety operating instructions before operating the equipment. The owner and/or operator shall be aware that use and repair of this product may require special skills and knowledge. -
Page 3: Specifications
SPECIFICATIONS Min. Max. Hyd. Extension Model Capacity Jack Size (L x W) Height Height Range Screw Hydraulic Truck Jack 22 Ton 22" x 12-5/8" 9-3/4" 21-3/4" 5-5/8" 3-7/8" Model Drive Size Max. Torque Max. Pressure Air Inlet Hose Size 1" Air Impact Wrench 1"... - Page 4 1" Air Impact Wrench: WARNING Operating Hazards • Rotating drive sockets and drive extensions can easily entangle rubber-coated or metal-reinforced gloves. • The use of this tool can expose the operator’s hands to hazards including, impacts, cuts and abrasions and heat. •...
- Page 5 WARNING WARNING • Study, understand, and follow all instructions before operating this device. • Do not exceed rated capacity. To avoid crushing and related injuries: • Use only on hard, level surface capable of • Never work on, under or around a load supported supporting the load.
- Page 6 Operating Instructions (1" Air Impact Wrench) Note: Before use ensure that the air line is free of dust and moisture 1. Insert 1/2” air inlet nozzle (not included) to the port on the bottom of the handle. Use thread tape (not included) on the nozzle to ensure a good connection.
- Page 7 TROUBLESHOOTING (Hydraulic Truck Jacks) Symptom Possible Causes Corrective Action • Release valve not tightly closed • Ensure release valve tightly closed Jack will not lift load • Load is too heavy • Consider higher capacity jack • Air supply inadequate •...
- Page 8 Hydraulic Truck Jack Replacement Parts: Item Part No. Description Item Part No. Description Handle Assembly Release Valve A070-70000-100 A090-12008-000 Handle Grip Oil Seal G251-00007-000 5905-00054-000 Knob Screw G251-40001-000 5105-05016-000 Spring Pin Screw 5402-04028-000 5102-08025-000 Bolt 5115-10017-000 5202-00008-000 Washer, Lock Filler Screw 5303-00010-100 G62S-03301-000 Handle Sleeve...
- Page 9 1" Air Impact Wrench Replacement Parts: Item Item Part No. Description Qty. Part No. Description Qty. 82004-1 Oil Seal Screw Screw Spring Washer Spring Washer Rear Cover Hammer Case Assy. 82004-33 Trigger Hammer Case Trigger Protect Bar 82004-5 Gasket Trigger Pin Bushing O-ring Retainer Washer...
- Page 10 48 49 50 Figure 3 - Replacement Parts Illustration for 1" Air Impact Wrench...
-
Page 11: One-Year Limited Warranty
ONE YEAR LIMITED WARRANTY For a period of one (1) year from date of purchase, SFA COMPANIES, INC. will repair or replace, at its option, without charge, any of its products which fails due to a defect in material or workmanship under normal usage. This limited warranty is a consumer's exclusive remedy. - Page 12 Notes SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153 888-332-6419 sales@omegalift.com...
