NGC-40-SLIM
Safety Temperature Limiter for use
with nVent RAYCHEM NGC-40 System
Sicherheitstemperaturbegrenzer für das
nVent RAYCHEM NGC-40-System
Limiteur de température pour système
nVent RAYCHEM NGC-40
ОГРАНИЧИТЕЛЬ ТЕМПЕРАТУРЫ ДЛЯ
ИСПОЛЬЗОВАНИЯ С СИСТЕМОЙ
nVent RAYCHEM NGC-40

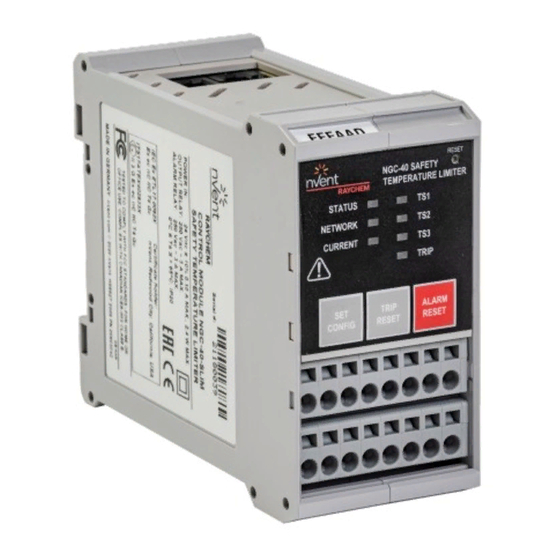

NGC-40 SAFETY TEMPERATURE LIMITER
STATUS
NETWORK
CURRENT
SET
TRIP
CONFIG
RESET
RESET
TS1
TS2
TS3
TRIP
ALARM
RESET
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for nVent RAYCHEM NGC-40-SLIM
Summary of Contents for nVent RAYCHEM NGC-40-SLIM
- Page 1 NGC-40-SLIM Safety Temperature Limiter for use with nVent RAYCHEM NGC-40 System Sicherheitstemperaturbegrenzer für das nVent RAYCHEM NGC-40-System Limiteur de température pour système nVent RAYCHEM NGC-40 ОГРАНИЧИТЕЛЬ ТЕМПЕРАТУРЫ ДЛЯ ИСПОЛЬЗОВАНИЯ С СИСТЕМОЙ nVent RAYCHEM NGC-40 RESET NGC-40 SAFETY TEMPERATURE LIMITER STATUS...
-
Page 2: Table Of Contents
2.2 Mounting and wiring NGC-40-SLIM module ........................8 3 Safety instructions for NGC-40-SLIM ........................13 3.1 Area of use ..................................13 3.2 Safety function of temperature limiter in NGC-40-SLIM .....................13 3.3 Temperature limiter (schematic) ..........................13 3.4 Reset Safety Temperature Limiter ..........................14 3.5 Temperature setting secured and locked to prevent manipulation ................14 3.6 Changing limiter set point .............................14... -
Page 3: Introduction
1 INTRODUCTION Please read all instructional literature carefully and thoroughly before starting. Refer to the inside front cover for the listing of Liabilities and Warranties. NOTICE: The information contained in this document is subject to change without notice. Please read these Operating Instructions before commissioning the instrument. -
Page 4: Area Of Use
1.6 Area of use nVent RAYCHEM NGC-40-SLIM limiters are used for temperature limiting of electrical heaters in industrial and potentially explosive atmospheres. The NGC-40-SLIM is a safety temperature limiter. NGC-40-SLIM units are approved for use in non-hazardous areas. Where needed the temperature sensor of the unit can be placed in Zone 1, Zone 2, Zone 21 and Zone 22 when the sensor is hazardous area approved. -
Page 5: Approvals And Certifications
2.1 Product Description The NGC-40-SLIM module is used as safety temperature limiter within the NGC-40 control and monitoring system. The module has one output for the contactor, one alarm output and one digital input. The alarm output can be used to control an external annunciator. -
Page 6: Electromagnetic Compatibility
Form-A 250 Vac/3 A contactor coil drive relay. This output is used in conjunction with the terminals to provide switched LINE voltage to an external contactor coil. 2.1.13 NGC-40 Safety Limiter Product name: NGC-40-SLIM Part number: 1244-010700 2.1.14 NGC-40-SLIM accessories and associated components Product name Part number NGC-40-HTC 10730-003... -
Page 7: Dimensions
RESET A: WIRING TERMINALS C: RESET A: WIRING TERMINALS D: STATUS LEDS B: CAN BUS/MODULE POWER C: RESET D: STATUS LEDS Figure 1: Dimensions NGC-40-SLIM module A: WIRING TERMINALS: Term Limiter Module Output relay Output relay Alarm relay Alarm relay... -
Page 8: Mounting And Wiring Ngc-40-Slim Module
MOUNTING: Insert the rear bottom of the module into the DIN rail, Removal: Push the module then push up and inwards to engage the clip. upwards to disengage the clip, than rotate the module toward you. Figure 2: Mounting NGC-40-SLIM module onto DIN rail 8 | nVent.com/RAYCHEM... - Page 9 Power Supply/CAN The power supply/CAN connector is an RJ-45 connector Cable from another module or power supply CAN termination here if last one in chain The CAN termination device must be installed in the unused port of the last module. Figure 3: Power via CAN cable connector RTD Terminals Sensor 1 Sensor 2 Sensor 3...
- Page 10 RESET NGC-40 SAFETY TEMPERATURE LIMITER STATUS NETWORK CURRENT TRIP TRIP ALARM CONFIG RESET RESET Alarm via Digital Output Alarm relay using terminal 3 and 4, Form A, NO dry contract, rated at 250 V max, 3 A. Contact is energized & closed during normal conditions and will open upon an alarm condition.
- Page 11 NGC-40 CAN Bus Connections for up to 10 Modules Termination Termination CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc Block Block CAN/Tem CAN/24 Vdc Power/ Termination Module CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc...
- Page 12 NGC-40 CAN Bus Connections for up to 40 Modules Termination CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc Block CAN/Tem CAN/24 Vdc Power/ Termination Module CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc CAN / 24 Vdc...
-
Page 13: Safety Instructions For Ngc-40-Slim
NGC-40-SLIM units can be reset by means of a Trip Reset push button, an external hardwired signal or via dedicated software. The output of the unit will only be enabled when all conditions are safe; meaning that the temperature measured by the limiter RTD has dropped below the limiter set point and when there are no other faults being detected. -
Page 14: Reset Safety Temperature Limiter
Refer to section 3.7 below for the procedure to change the safety limiter set point. The safety temperature limiter operates totally independent of the temperature control system and has its own temperature inputs (RTD Limiter). In case of a defect to any part of the NGC-40-SLIM unit the device shall be de-energized before replacing the defective equipment. -
Page 15: Safety Related System Characteristics
3.9 Safety related system characteristics The failure types of; sensor break, sensor short, sensor misconnected and random hardware failure are permanently monitored. IMPORTANT NOTICE In case a failure of the safety system is detected either during operation or during routine maintenance when executing a function test the unit should be switched off and taken out of service. - Page 16 Europe, Middle East, Africa Lietuva/Latvija/Eesti Suomi +32 16 213 511 +370 5 2136633 Puh. 0800 11 67 99 Fax +32 16 213 603 Fax +370 5 2330084 salesfi@nVent.com thermal.info@nVent.com info.baltic@nVent.com Sverige België / Belgique Magyarország +46 31 335 58 00 +32 16 21 35 02 +36 1 253 4617 salesse@nVent.com...
