Summary of Contents for GreenWorks Pro ULTRAPOWER MO60L516

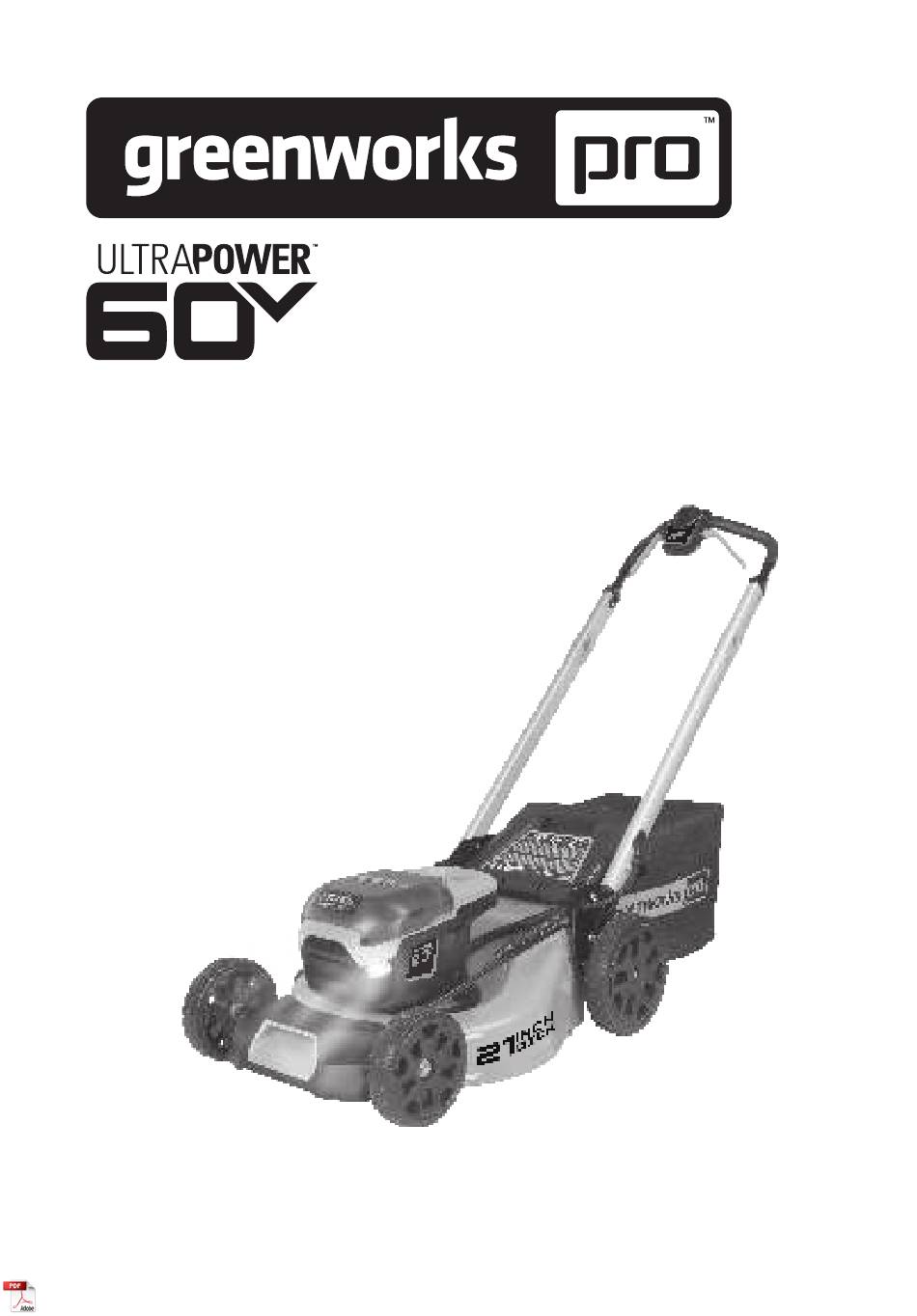

- Page 1 MO60L06 MO60L516 LAWN MOWER OPERATOR MANUAL MANUAL DEL OPERADOR CORTACÉSPED LMC421 www.greenworkstools.com...
-
Page 2: Table Of Contents
English Description......... 4 Set the cutting height........10 Install the battery pack........10 Purpose.............. 4 Remove the battery pack......... 10 Overview............4 Operation......... 10 Packing list............4 Read all instructions......4 Start the machine..........10 Stop the machine..........11 Children and Bystanders........4 LED Headlights.......... -
Page 3: Description
English DESCRIPTION READ ALL INSTRUCTIONS PURPOSE DANGER This machine was built to be operated according to the rules This machine is used for domestic lawn mowing. The cutting for safe operation included in this manual. As with any type blade must be approximately parallel to the ground. All four of power equipment, carelessness or error on the part of the wheels must touch the ground while you mow. - Page 4 English handle immediately and the blade will stop rotating • Release the bail switch to disengage the motor. within three seconds. • Remove the battery. • Thoroughly inspect the area where the equipment is to be • Inspect for damage. used and remove all stones, sticks, wires, bones, and •...
-
Page 5: Service/Maintenance
English • Do not dispose of the battery in a fire. The cells could • Clean the blade thoroughly and check its balance by catch fire or explode. Check with local codes and waste supporting it horizontally on a thin nail through its center management for proper disposal instructions. -
Page 6: Symbols On The Product
English SYMBOLS ON THE PRODUCT Symbol Name Explanation DANGER --- All visitors should be kept Some of the following symbols may be used on this tool. Keep By- at a distance from work Please study them and learn their meaning. Proper standers Away area. -
Page 7: Proposition 65
English PROPOSITION 65 PLACE THE MOWER UPRIGHT IN VERTICAL POSITION WARNING This product contains a chemical known to the state of California to cause cancer, birth defects or other reproductive harm. Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. -
Page 8: Unfold The Lower Handle
English UNFOLD THE LOWER HANDLE INSTALL THE MULCH PLUG 1. Remove the grass catcher. 2. Open the rear discharge door (7) and hold it. 3. Hold the mulch plug (10) by its handle and fit it in the 1. Pull up on the handle holes (12) to release the lower discharge chute. -
Page 9: Set The Cutting Height
English SET THE CUTTING HEIGHT 2. Align the ribs on the battery pack (22) with the grooves in the battery compartment. The machine can be set to different cutting height. 3. Push the battery pack (22) into the battery compartment until the battery pack locks into place. -
Page 10: Stop The Machine
English 6. Close the rear discharge door. 2 Green The battery is at between 60% and 40% ca- Lights pacity 7. Empty the grass catcher. 1 Green The battery is between 40% and 20% ca- OPERATE ON SLOPES Light pacity WARNING Lights go out The battery is less than 20% capacity and re- quires charging immediately... -
Page 11: General Maintenance
English GENERAL MAINTENANCE optimized for efficiency, while high lift blades work better in extreme conditions. The high-lift blade has deeper curves on • Before each use, examine the machine for damaged, the ends, which increase suction to circulate and expel the missing, or loose parts such as screws, nuts, bolts and clippings. -
Page 12: Troubleshooting
English 2. Remove the battery and safety key. Problem Possible cause Solution 3. Pull through the handle holes to fold away the handles. There is a high vi- The blade is un- Replace the blade. 4. Lock the handles into position. bration in the ma- balanced and chine. -
Page 13: Limited Warranty
English LIMITED WARRANTY Greenworks hereby warranties this product, to the original purchaser with proof of purchase, for a period of four (4) years against defects in materials, parts or workmanship. Greenworks, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. -
Page 14: Exploded View
English EXPLODED VIEW Part No. Qty. Description R0200742-00 Blade assembly kit R0201875-00 High lift blade RB311081179A Side discharge cover kit R0200226-00 Side discharge chute RB341281179A 8" front wheel assembly RB341271179A 10" rear wheel assembly RB341472376 Safety key R0201873-00 Upper control assembly... - Page 15 English Part No. Qty. Description R0201921-00 Grass catcher assembly R0201922-00 Power control board R0200078-00 Mulch plug kit R0200860-00 Motor R0201880-00 Bolt/nut...
