QUick start proceDUre

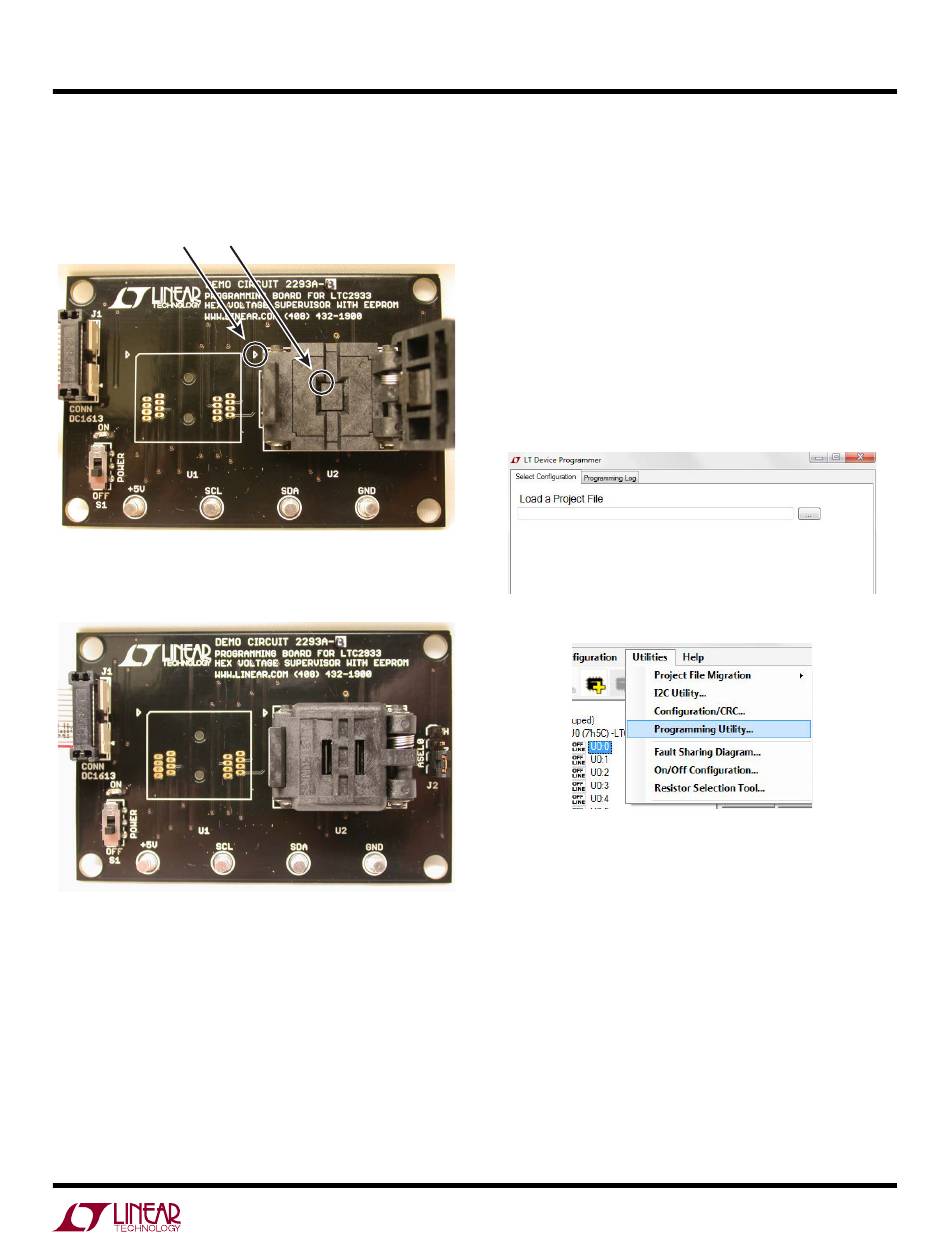

4. If using DC2293A-B, flip open the socket lid and place
the IC inside with pin 1 located in the upper left corner.
See Figure 6.
PIN 1 INDICATOR
Figure 6. DC2293A-B and IC Installed
Close the lid. It will snap into place. See Figure 7.
Figure 7. DC2293A-B and IC Installed
DEMO MANUAL DC2293A
5. Set the power switch S1 to the ON position. The VDD33
LED will illuminate, indicating the on-chip regulator is
providing internal power. If the LED does not illuminate,
check the orientation of the IC in the socket. Pin 1 must
be in the upper left corner.
6. Launch the LTpowerPlay software from your PC. The
device programming utility shown in Figure 8 should
pop up automatically. If it does not, then select the
Utilities>Programming Utility from the menu shown
in Figure 9.
7. Click "..." next to the selection box and select a .proj file
from your system to program the device. See Figure 8.
DC2293 F06
Figure 8. Selecting a .proj File to Program
Figure 9. Utilities > Programming Utility from the Menu
