4-step installation guide
The HDMOD-6S can be programmed on the field using the following simple 4 steps*:
1
st
Step

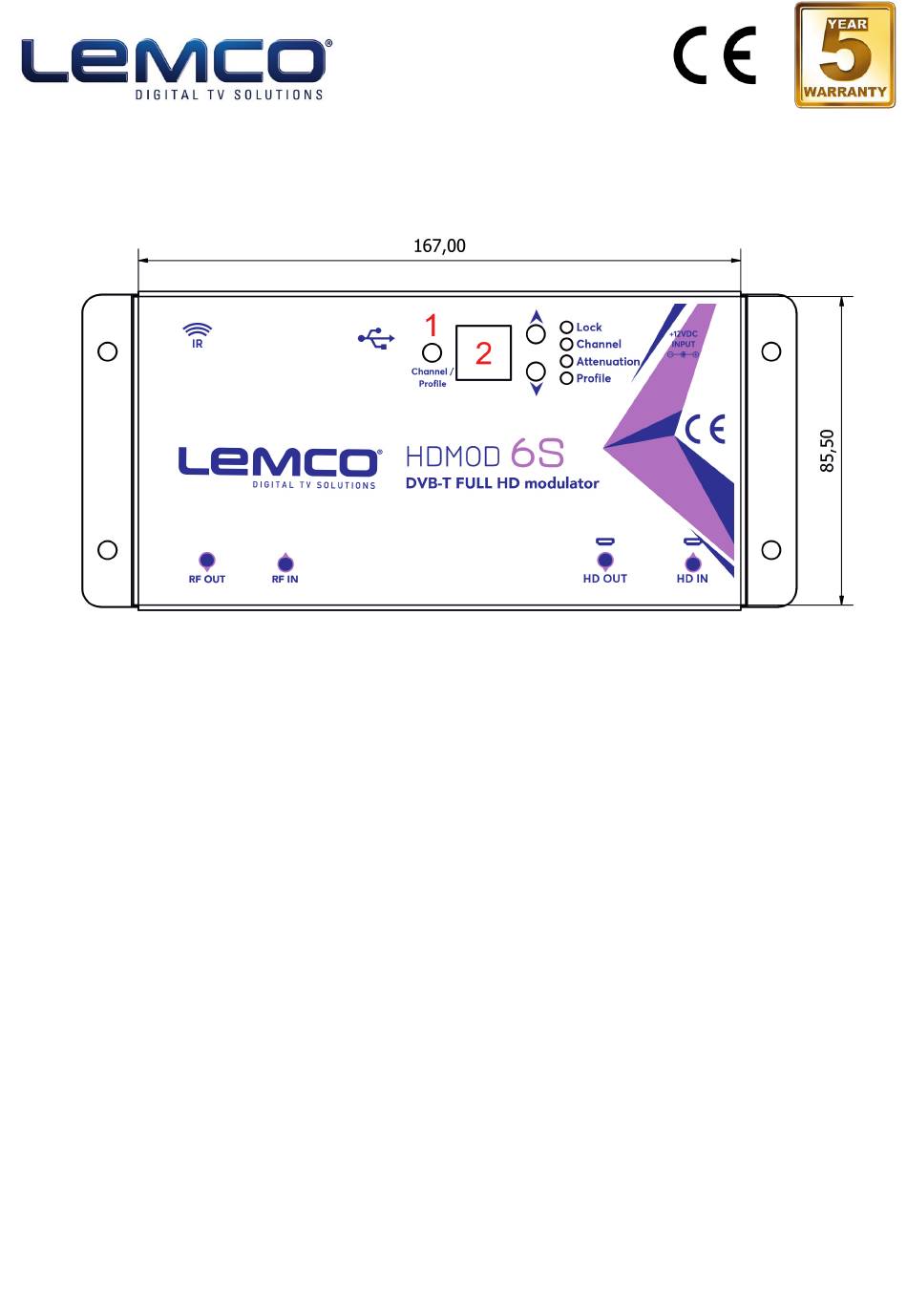

Power up the HDMOD-6S by adding the external power supply. The HDMOD-6S
will need 20-30secs to initialize itself. The SSD (Seven Segment Display – No 2)
depicts the initialization status.
2
Step
nd
Choose
"Chanel
mode" by pressing the Channel/Profile button (No 1) and select the
output RF channel using the Up/Downs buttons.
3
Step
rd
Choose
"Attenuation
output attenuation ( 0dB, -10dB, -25 dB) using the Up/Downs buttons.
4
th
Step
Choose
"Profile
mode" by pressing the Channel/Profile button (No 1) and select
Profile number using the Up/Downs buttons. Each modulator must have its unique
profile number in the same CATV installation.
For example, select:
Profile No 1
for the first modulator
Profile No2
for the second modulator
...
Profile No10
for the 10
*The HDMOD-6S offers advanced programming features from a PC software via a USB interface.
HDMOD-6S
Quick start guide
mode" by pressing the Channel/Profile button (No 1) and select
th
modulator etc...
Advertisement
Table of Contents
Related Manuals for Lemco HDMOD-6S
Summary of Contents for Lemco HDMOD-6S
- Page 1 HDMOD-6S Quick start guide 4-step installation guide The HDMOD-6S can be programmed on the field using the following simple 4 steps*: Step Power up the HDMOD-6S by adding the external power supply. The HDMOD-6S will need 20-30secs to initialize itself. The SSD (Seven Segment Display – No 2) depicts the initialization status.
- Page 2 • You can download HDMOD-6S’s full manual and software for advanced programming from product’s page at www.lemco.gr. • After 5 min the HDMOD-6S’s keypad will be locked. To unlock, keep the “Up/Down” buttons (No.3) pressed simultaneously for 5sec. approximately. This product complies with the relevant clauses of the European Directive 2002/96/EC.
